Zio Encoders & Decoders

HD & 4K Video over IP Encoding & Decoding

Zio® endpoints attach to a 1Gig Ethernet switch, with encoders accepting computer and video sources at resolutions up to 4K Ultra HD and decoders for feeding displays. Our new Zio AV over IP technology supports video and audio distribution over an IP network, replacing traditional dedicated switchers.

Accessories: PDU 400-12 Power Distribution Unit, Zio RAK mounting shelf

Dynamic H.264 encoding / H.264 and H.265 decoding
Up to 4K UHD in / out
Management & control across LANs & WANs
Mix live video + web-based content
Scripting interface for external system control
HDCP compliant
Power over Ethernet (PoE)
View All:

Which codec is right for your project?

Compare All Codecs

Overview

This product can be custom-built for any MIL SPEC connectivity, environmental and shock/vibration requirements, including MIL STD 901, 810, 461, 167 and DO160D.

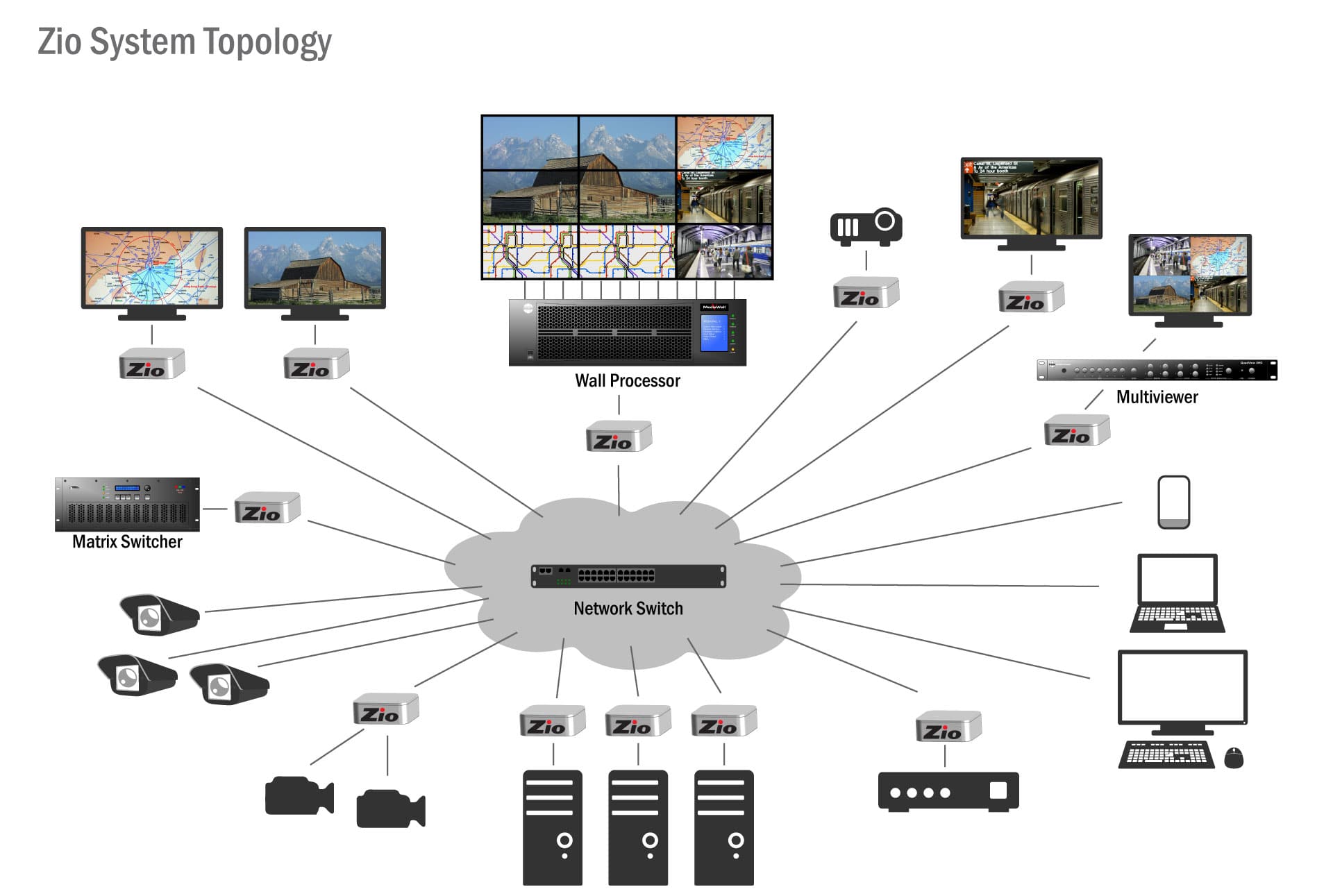

The Zio system offers seamless switching over the IP network infrastructure. Both dedicated and shared networks are supported.

The Zio product line includes encoder and decoder models that support 2K or 4K video over IP. Zio endpoints encode and decode video, audio, and control signals using industry standard compression.

The S2002 model IP video encoder accepts signals up to 2K resolution over a locking HDMI connector with loop through capability. The S2004 model accepts signals up to 4K resolution.

The Zio D2000 Series are flexible decoders designed to work with the S2000 Series encoders and H.264/H.265 compliant devices. The D2002 model IP video decoder displays streams at up to 2K resolution. The D2004 model decodes and displays streams at up to 4K resolution. Power over Ethernet (PoE) is provided on both models to simplify installation.

A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.



Specifications
Model: S2000 Series Encoder
Inputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
S2002: up to 1920 x 1080 @ 60 Hz
S2004: up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio Support
Digital (embedded HDMI) or analog
HDCP
1.4
Outputs
Type
IP Video Stream, HDMI output
Connector
1x RJ-45 (GigE), 1x HDMI 1.4b
Resolution
S2002: up to 1920 x 1080 @ 60 Hz
S2004: up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Simultaneous Streams
Multiple (depending on resolution)
Audio Support
Digital (embedded video stream) or aalog
Physical
Dimensions (H x W x D)
1 x 8 x 4 inches
(25 x 203 x 102 mm)
Weight
2 lbs / 0.9 kg
Power
12 VDC, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Plenum-rated
Yes
Streaming
Compression Format
H.264
Streaming Protocol
RTSP
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000Base-T
Options
rackmount kit, bulkhead mounting kit, power distribution unit
Model: D2000 Series Decoder
Inputs
Type
IP Video Stream
Connector
1x RJ-45 (GigE)
Resolution
D2002: up to 1920 x 1080 @ 60 Hz
D2004: up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio Support
Digital (embedded HDMI) or analog
HDCP
1.4
Outputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
D2002: up to 1920 x 1080 @ 60 Hz
D2004: up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Simultaneous Streams
1
Audio Support
Digital (embedded HDMI) or analog
Physical
Dimensions (H x W x D)
1 x 8 x 4 inches
(25 x 203 x 102 mm)
Weight
2 lbs / 0.9 kg
Power
12 VDC, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Plenum-rated
Yes
Streaming
Compression Format
H.264, H.265
Streaming Protocol
RTSP, Multicast
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000Base-T
Options
rackmount kit, bulkhead mounting kit, power distribution unit
