Zio 4000 Wall Processor

Standalone and Video-over-IP Wall Processor

The Zio® 4000 expands RGB Spectrum's Video-over-IP offerings with a full-function video wall processor capable of working in a standalone environment or as part of the Zio Enterprise Video-over-IP platform. The feature-rich Zio 4000 supports 4K 60Hz resolution end-to-end with a mix of local baseband and IP video, as well as web-based inputs.

Inputs and outputs to 4Kp60
Operates standalone or as part of an Video-over-IP system
Drag and drop GUI with live thumbnail previews
Baseband + IP video + VNC/RDP clients + local images/videos
Mix live video & web-based content

What’s New with the Zio 4000

We’ve recently introduced a new software options package that includes more power and more capabilities. Get to know what’s included with the Zio 4000 Plus in the overview section below.

GET A DEMO OF ZIO 4000

Overview

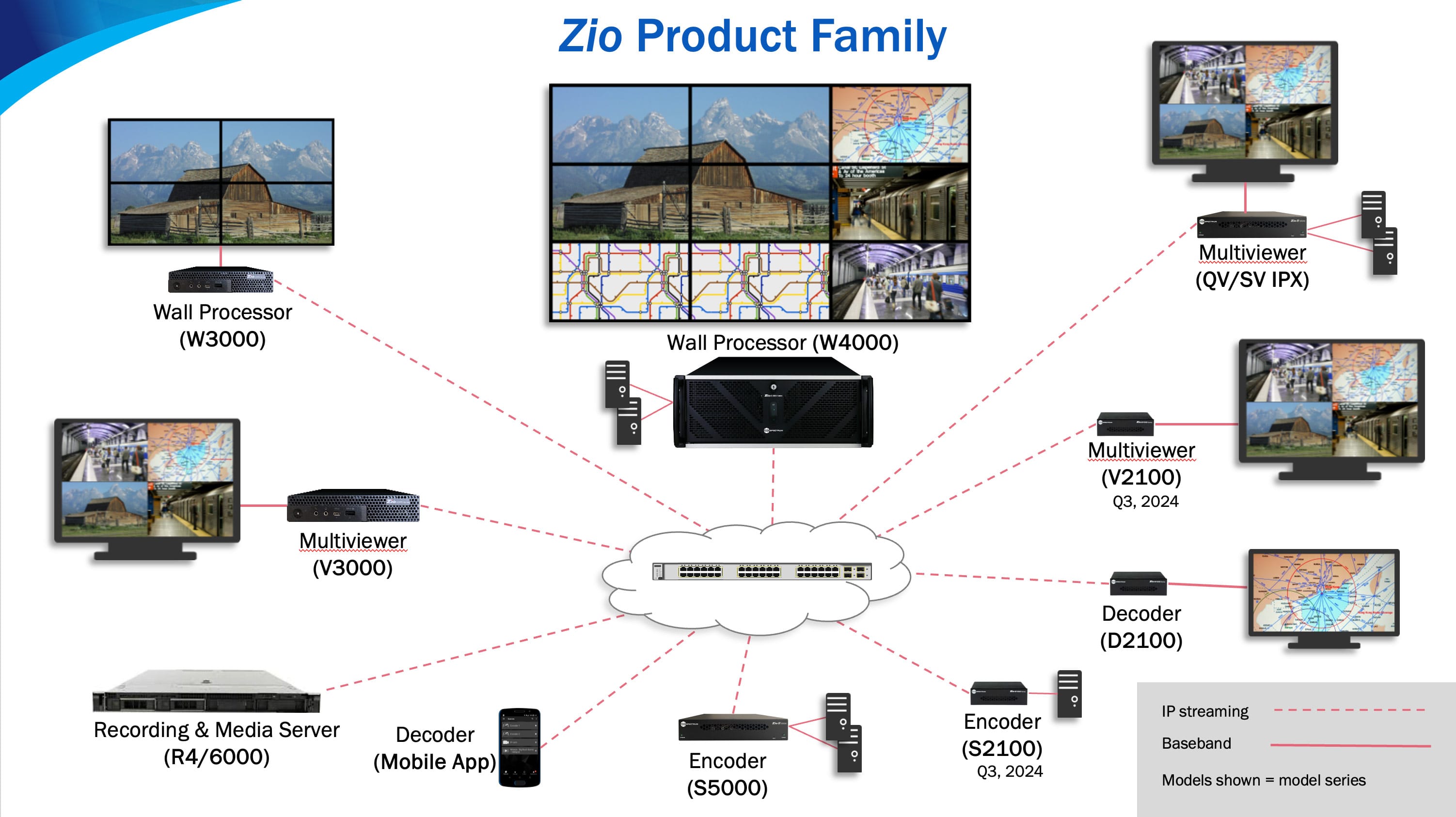

The Zio platform delivers reliable Video-over-IP distribution and management across WANs as well as LANs using standard 1 Gigabit Ethernet. The Zio product family includes encoders, decoders, multiviewers, wall processors, and apps for smart displays and mobile devices.

Built-In Software for Ease of Management

A powerful drag and drop user-interface comes standard on each Zio 4000 device. The GUI provides quick and easy configuration of the video wall, eliminating the need for advanced device programming skills. Live thumbnail previews of baseband and Zio IP sources, and user-defined presets for layouts and routing, are among the many easy-to-use features.

What’s New with Zio 4000 Plus

We’ve introduced a new options package for our Zio 4000 series. With the Zio 4000 Plus software licensing option, you can get all our standard features plus the following:

  • Display Applications over Industry-Standard VNC or RDP

    View complex content running on Windows, Linux, or macOS computers on your video wall, including SCADA control systems, video management software, access control applications, demanding websites, and more over IP connections. Because the content is transported via VNC or RDP, direct connections over HDMI ports are not required, resulting in additional input capability without the cost of a larger video processor. VNC and RDP are in addition to H.264 and IP sources already accepted in the base system.
  • Customize Your Display with Videos and Images

    Present local videos and image files. Display logos, animations, corporate videos, or other content. Resize, position, and layer content anywhere on your video wall.
  • LDAP/Active Directory User Authentication

    Zio provides multiple ways to authenticate user access for added security. In addition to using a local database, you can now tie into industry-standard LDAP or Active Directory for user authentication.

The versatile Zio 4000 is ideal for standalone or enterprise-wide applications including mission-critical operations, command centers, boardrooms, lobby displays, digital signage, and more. Get a demo to find out more.

Specifications
All Models
Input/Output
Inputs
DVI: up to 1920x1200 @ 60 Hz, 2560x1600 @ 30 Hz
HDMI & DisplayPort: up to 4096x2160 @ 60 Hz, up to 10-bit per component
SDI: up to 12G / 4096x2160 @ 60 Hz
S-Video: NTSC/PAL/SECAM
Composite: NTSC/PAL/SECAM
IP: up to 3840x2160 @ 60 Hz H.264
Outputs
DVI: up to 2048x1152 @ 60 Hz, 2560x1600 @ 30 Hz
HDMI & DisplayPort: up to 4096x2160 @ 60 Hz
IP: up to 3840x2160 @ 60 Hz

** Number of input and output channels depends on chassis size and customer configuration.

Model: W4018
Output Number
8 max
Processor
CPU
Single Intel® Xeon® W-2123 3.6 GHz
Memory
16 GB DDR4 2666 MHz
Hard Disk
256 GB SSD (No RAID option)
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
6.5 x 17.3 x 18.2 inches (4RU)
165 x 440 x 460 mm
Weight
27 lbs / 12 kg
Power
100-240 VAC; 50/60 Hz
690 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing
Model: W4018-A
Output Number
8 max
Processor
CPU
Single Intel® Xeon® W-2223 3.6 GHz
Memory
16 GB DDR4 2666 MHz
Hard Disk
256 GB SSD (No RAID option)
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
14.6 x 66.9 x 16.8 inches (Tower)
376 x 1700 x 427 mm
Weight
32 lbs / 14.5 kg
Power
100-240 VAC; 50/60 Hz
625 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing
Model: W4024
Output Number
16 max
Processor
CPU
AMD Ryzen Threadripper Pro 3945WX 4.0 GHz
Memory
32 GB DDR4 3200 MHz
Hard Disk
256 GB SSD; RAID option
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
6.5 x 17.3 x 18.1 inches (4RU)
165 x 440 x 460 mm
Weight
29 lbs / 13 kg
Power
100-240 VAC; 50/60 Hz
1000 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing
Model: W4028
Output Number
16 max
Processor
CPU
Intel® Xeon® W-2223 3.6 GHz
Memory
32 GB DDR4 2666 MHz
Hard Disk
240 GB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 19.0 x 21.5 inches (4RU)
177 x 483 x 546 mm
Weight
40 lbs / 18 kg
Power
100-240 VAC; 50/60 Hz
850 W single
Environmental
Operating Temp
+32 to +104 °F (0 to +40 °C)
Storage Temp
-4 to +176 °F (-20 to +80 °C)
Operating Humidity
20% to 80% non-condensing
Model: W4028-RP
Output Number
16 max
Processor
CPU
Intel® Xeon® W-2223 3.6 GHz
Memory
32 GB DDR4 2666 MHz
Hard Disk
240 GB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 19.0 x 21.5 inches (4RU)
177 x 483 x 546 mm
Weight
40 lbs / 18 kg
Power
100-240 VAC; 50/60 Hz
1200 W, 1+1 redundant, hot-swappable
Environmental
Operating Temp
+32 to +104 °F (0 to +40 °C)
Storage Temp
-4 to +176 °F (-20 to +80 °C)
Operating Humidity
20% to 80% non-condensing
Model: W4040-A
Output Number
16 max
Processor
CPU
Dual AMD® EPYC-7262 3.2 GHz
Memory
128 GB DDR4 3200 MHz
Hard Disk
1 TB NVMe SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
Physical
Size (H x W x D)
17.2 x 7.0 x 29.0 inches (4RU)
437 x 178 x 737 mm
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
9% to 90% non-condensing
Model: W4040-B
Output Number
16 max
Processor
CPU
Intel® Xeon® 5317 3 GHz
Memory
128 GB DDR4 3200 MHz
Hard Disk
1 TB NVMe SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10G Base-T
Physical
Size (H x W x D)
17.1 x 6.9 x 26.0 inches (4RU)
434 x 175 x 660 mm
Weight
77 lbs / 35 kg
Power
115-230 VAC; 50/60 Hz
2000 W, 1+1 dual redundant
Environmental
Operating Temp
+32 to +85 °F (0 to +30 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
< 95% non-condensing
Model: W4056-A
Output Number
16 max
Processor
CPU
3rd Gen Intel® Silver Xeon® 4208 dual processors
Memory
96 GB DDR4 2933 MHz
Hard Disk
1TB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 17.2 x 32.1 inches (5RU)
178 x 437 x 815 mm
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W max, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
10% to 85% non-condensing
Model: W4080
Output Number
16 max
Processor
CPU
3rd Gen Intel® Silver Xeon® 4208 dual processors
Memory
96 GB DDR4 2933 MHz
Hard Disk
1 TB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 17.2 x 32.1 inches (5RU)
178 x 437 x 815 mm
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W max, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
10% to 85% non-condensing
