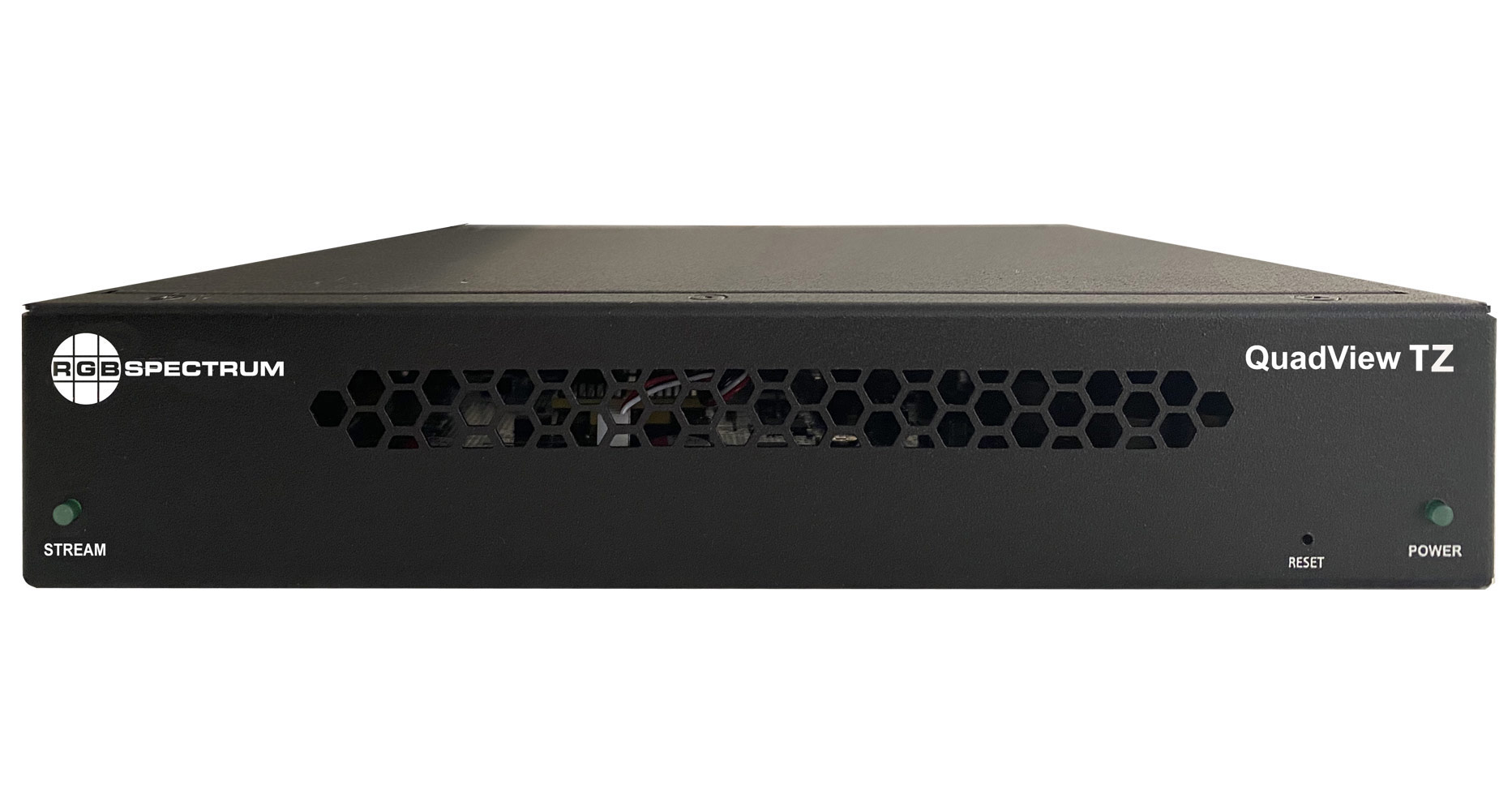

QuadView TZ
TAA- and BAA-Compliant Multiviewers
The QuadView® TZ is a high-performance 4K multiviewer with four HDMI® inputs that can be displayed in up to four windows using customizable layouts on a single screen.
RGB Spectrum’s IPX multiviewers are an ideal solution for mission-critical 24/7 operations, where reliability, security, and ruggedness count.
RGB Spectrum’s IPX multiviewers are an ideal solution for mission-critical 24/7 operations, where reliability, security, and ruggedness count.
4K 60Hz input and output resolutions
Images displayed any size, anywhere
Customizable display layouts and presets
4x HDMI® in + 1x HDMI® out
Embedded architecture for security
Control via browser-based GUI, Telnet and RS-232
Mouse control of window sizes and positions
TAA- and BAA-compliant
VIEW ALL: Multiviewers
Overview
Multiviewers have emerged as indispensable tools for displaying and analyzing diverse data sources on a single pane of glass. Their ability to consolidate information streams onto a single screen enhances situational awareness and decision-making workflow.
RGB Spectrum adds a new multiviewer to its multiviewer product line:
- The QuadView® TZ is a high-performance 4K multiviewer with four HDMI® inputs that can be displayed in up to four windows using customizable layouts on a single screen.
- RGB Spectrum’s IPX multiviewers are an ideal solution for mission-critical 24/7 operations, where reliability, security, and ruggedness count.
- The QuadView TZ is made in the U.S.A., and is TAA- and BAA-compliant.
Specifications
Model: QuadView TZ Multiviewer
Maximum Window Count
4
Inputs
Video
4x HDMI® (2.0)
Supported Resolutions
Up to 3840 x 2160 @ 60Hz
Outputs
Video
1x HDMI® (2.0)
Supported Resolutions
3840x2160 @ 60Hz, 3840x2160 @ 30Hz, 3840x2160 @ 24Hz, 1920x1200 @ 60Hz, 1920x1080 @ 60Hz, 1920x1080 @ 50Hz, 1600x1200 @ 60Hz, 1680x1050 @ 60Hz, 1600x900 @ 60Hz, 1400x1050 @ 60Hz, 1440x900 @ 60Hz, 1366x768 @ 60Hz, 1360x768 @ 60Hz, 1280x1024 @ 60Hz, 1280x720 @ 60Hz, 1280x800 @ 60Hz, 1280x768 @ 60Hz, 1280x720 @ 50Hz, 1024x768 @ 60Hz, 800x600 @ 60Hz
Audio
Embedded, Analog (future release)
Control
Browser-based HTML5, Telnet, RS-232
Physical
Dimensions (H x W x D)
1.75 x 8.625 x 8.0 inches (1RU) (43.2 x 219 x 203 mm)
Weight
3.1 lbs (1.4 kg)
Power Supply
100-240 VAC / 50/60Hz
Power Consumption (max)
15 W (max.)
Power over Ethernet (PoE)
PoE++ compliant
Operating Temperature
+32° to +104° F (0° to +40° C)
Storage Temperature
-4° to +140° F (-20° to +60° C)
Humidity (Storage/Operating)
20% to 90% (non-condensing)
