HD & 4K Video-over-IP Encoding

Zio® endpoints attach to a 1Gig Ethernet switch, with encoders accepting computer and video sources at resolutions up to 4K, 60 Hz. Zio AV-over-IP technology supports video and audio distribution over an IP network, replacing traditional dedicated switchers.

Accessories: PDU 400-12 Power Distribution Unit, Zio RAK mounting shelf

H.264 & H.265 encoding
Up to 4K, 60 Hz
Management & control across LANs & WANs
Power over Ethernet (PoE)
Overview

The Zio system offers seamless switching over the IP network infrastructure.

The Zio product line includes encoder and decoder models that support 2K or 4K video over IP and use industry-standard compression.

The Zio S2000 series encoders include the following models:

  • S2002: 2K, 1 port encoder
  • S2004: 4K, 1 port encoder

The Zio S5000 series encoders include the following models:

  • S5022: 2K, 2 port encoder
  • S5024: 4K, 2 port encoder
  • S5042: 2K, 4 port encoder

A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.

Specifications

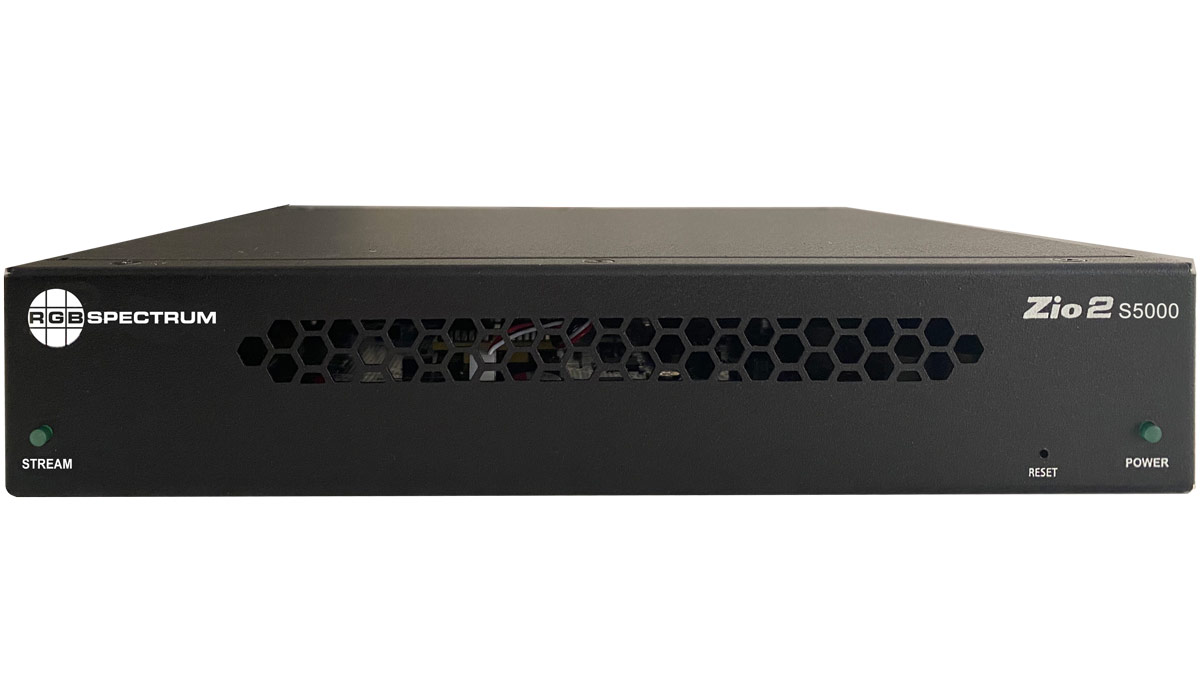

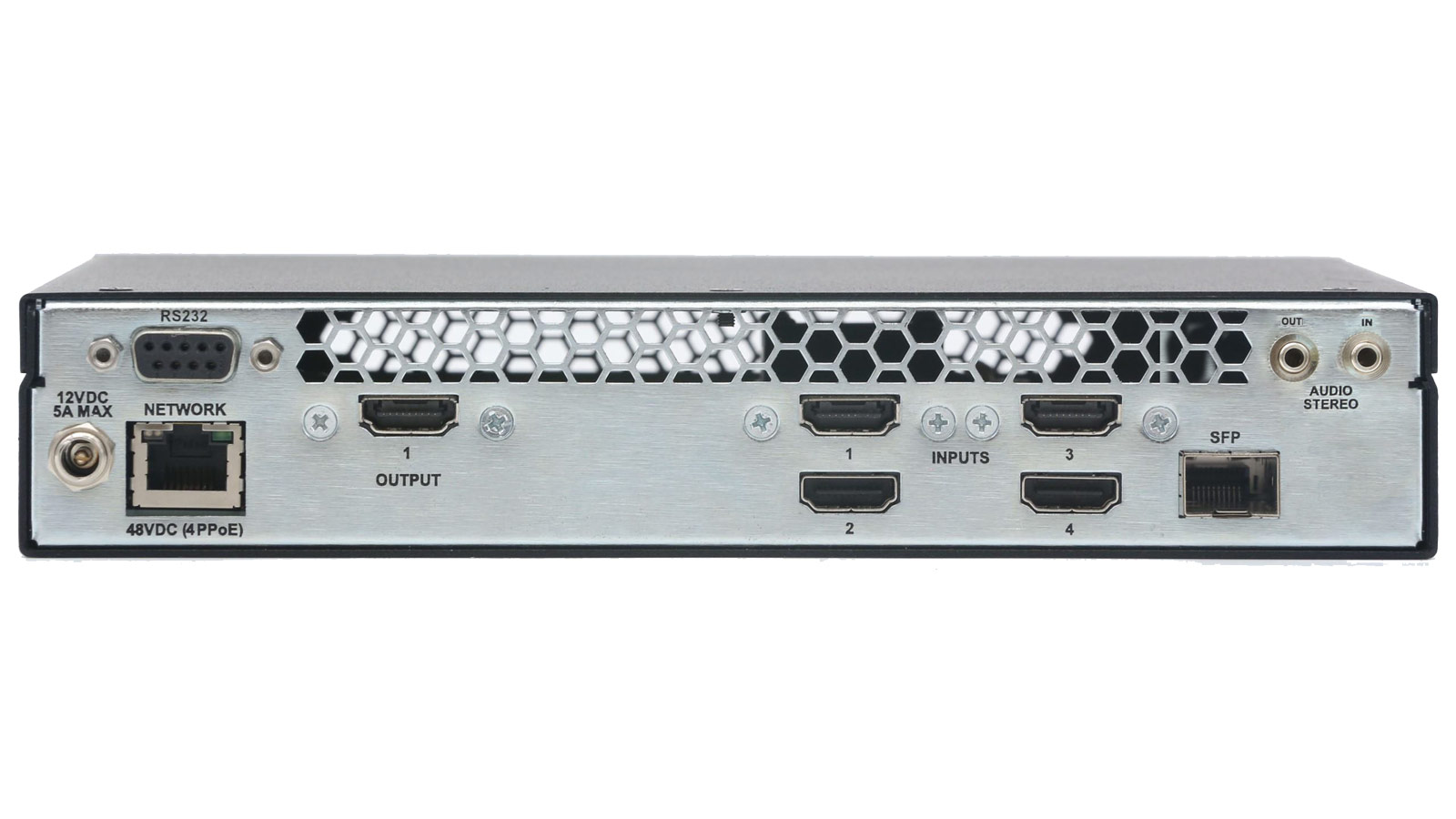

Model: S5000 Series Encoders
Inputs
Type
HDMI®
Connectors
S5022/S5024: 2x HDMI 2.0 channels
S5042: 4x HDMI 2.0 channels
Resolution
S5022/S5042: Up to 1920 x 1200 @ 60 Hz
S5024: Up to 4096 x 2160 @ 60 Hz
Audio Support
Digital (embedded HDMI) or analog
Outputs
Type
IP Video Stream, HDMI output
Connector
1x RJ-45 (GigE)
1 x SFP (future)
1x HDMI 2.0
1x RS232 (internal use only)
Resolution
S5022/S5042: Up to 1920 x 1200 @ 60 Hz
S5024: Up to 4096 x 2160 @ 60 Hz
Audio Support
Digital or analog (embedded in IP video stream only)
Streaming
Streams
Multiple
Compression Format
H.264, H.265
Streaming Protocol
RTSP, Multicast
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android, UMP
Network
Ethernet TCP/IP 10/100/1000/1000BaseT
Physical
Dimensions (H x W x D)
1.62 x 8.64 x 7.67 inches
(41 x 219 x 195 mm)
Power
12 VDC, 65 W

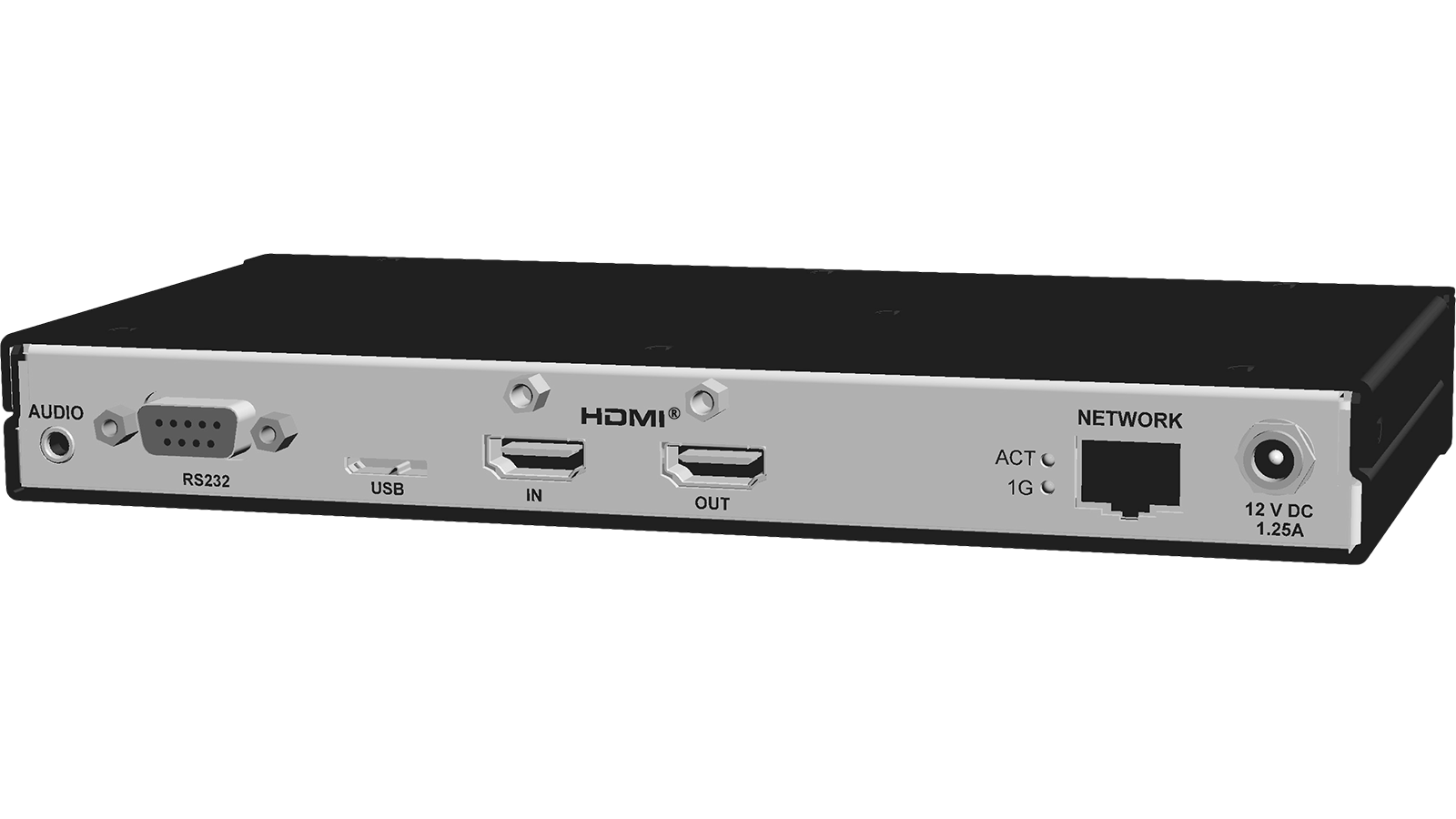

Model: S2000 Series Encoders
Inputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
S2002: up to 1920 x 1080 @ 60 Hz
S2004: up to 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio Support
Digital (embedded HDMI) or analog
Outputs
Type
IP Video Stream, HDMI output
Connector
1x RJ-45 (GigE), 1x HDMI 1.4b
Resolution
S2002: up to 1920 x 1080 @ 60 Hz
S2004: up to 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio Support
Digital or analog (embedded in IP video stream only)
Simultaneous Streams
Multiple (depending on resolution)
Streaming
Compression Format
H.264
Streaming Protocol
RTSP
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000BaseT
Physical
Dimensions (H x W x D)
1 x 8 x 4 inches
(25 x 203 x 102 mm)
Weight
2 lbs / 0.9 kg
Power
12 VDC, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Plenum-rated
Yes
Options
rackmount kit, bulkhead mounting kit, power distribution unit
