Multi-User Control of Remote Systems

XtendPoint KVM-over-IP systems allow operators to control remote systems across a room or worldwide enterprise. Secure communication and control are provided for both point-to-point or networked operation over a standard Gigabit Ethernet. KlickSimple navigation enables users to seamlessly control multiple computers simultaneously.

Signals up to 4Kp60 4:4:4 UHD
Video, keyboard, mouse, USB, audio & RS-232
Control computers with up to 4 displays
Point-to-point or networked
Operate multiple remote computer systems simultaneously

Why Invest in an XtendPoint KVM Solution

RGB Spectrum's XtendPoint KVM-over-IP extenders deliver a scalable KVM matrix solution connecting multiple users with controllable systems. Here are six reasons to switch.

DOWNLOAD PDF

Overview

RGB Spectrum's XtendPoint KVM-over-IP systems deliver a scalable KVM matrix switching solution connecting multiple users with controllable systems, including multi-headed computers. Low latency responsiveness and 4Kp60 4:4:4 UHD visual performance are delivered in both point-to-point and LAN or private WAN configurations.

Networked XtendPoint KVM-over-IP systems support one-to-one, one-to-many, many-to-one, or many-to-many configurations. It allows operators to view multiple desktops on a multi-display or multiviewer operator station and take control of a system by simply moving the mouse to the target desktop using KlickSimple™ cursor navigation.

The XtendPoint Central Manager provides simple, secure control for administrators to easily discover, configure, manage, and monitor all transmitter and receiver endpoints. Users can view connections and switch control of computers using an advanced on-screen display (OSD) that features thumbnail previews.

The versatile XtendPoint KVM-over-IP systems are an ideal solution for control rooms, dispatch centers, government, healthcare, education, airports and more.

Specifications
Model: XP 102 / 104 Transmitter
Connections to Host System
Video
XP 104
1x DisplayPort 1.2
3x DisplayPort 1.1

XP 102
2x DisplayPort 1.1
USB
1x USB 2.0 Type B
Serial
RS-232 9-pin D-type
Audio
DisplayPort (embedded)
Line in 3.5 mm, line out 3.5 mm
Network
1x RJ-45 (GigE)
1x SFP cage (supports SFP multi-mode or single-mode transceiver)
Outputs to Local Devices (for future use)
Video
1x DisplayPort 1.1
USB
2x USB 2.0 Type A (future use)

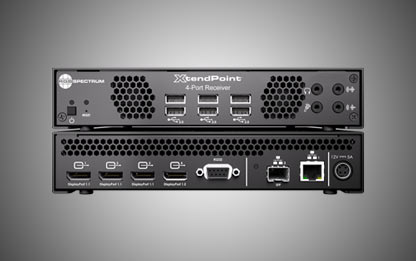

Model: XP 102 / 104 Receiver
Connections to Local Devices
Video
XP 104
1x DisplayPort 1.2
3x DisplayPort 1.1

XP 102
2x DisplayPort 1.1
USB
XP 104
6x USB 2.0 Type A

XP 102
4x USB 2.0 Type A
Serial
RS-232 9-pin D-type
Audio
DisplayPort (embedded)
Line in 3.5 mm, line out 3.5 mm
Mic in 3.5 mm, headphone out 3.5 mm
Network
1x RJ-45 (GigE)
1x SFP cage (supports SFP multi-mode or single-mode transceiver)
All Models
Input/Output
Maximum Resolutions
XP 104 TX/RX
1x 3840x2160 @60Hz, 2x 2560x1600 @60Hz, 2x 3840x2160 @30Hz, 3x 1920x1200 @60Hz, 4x 1920x1080 @60Hz, 4x 1920x1200 @50Hz

XP 102 TX/RX
1x 2560x1600 @60Hz, 2x 1920x1200 @60Hz
Color space
YUV 4:4:4, RGB 8:8:8
Physical
Dimensions (H x W x D)
1.676 x 7.45 x 8.526 inches
(42.6 x 189 x 216.6 mm), 1RU
Power Supply
100 x 240VAC / 50-60 Hz
Power Requirements
+12V DC, maximum 5A
Power Consumption (max.)
XP 104: 44W max, XP 102: 24.5W max
Operating Temperature
32° to 113° F (0° to 45° C)
Storage Temperature
-40° to 158° F (-40° to 70° C)
Humidity (storage/operating)
20% to 80% / 5% to 95% (non-condensing)

Options

rackmount kit
