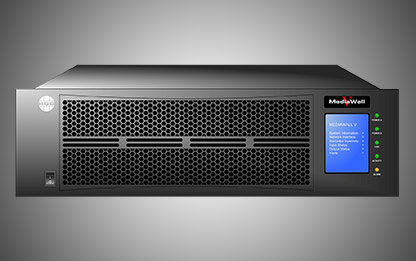

MediaWall V Display Processor

4K Video Wall Processor for HD and UHD Video Wall Systems

RGB Spectrum’s MediaWall® V Display Processor is a true 4K video wall processor, offering up to 4K resolution I/O, single wire connectivity and fully scalable windows.

Up to 4K UHD inputs and outputs on a single wire
Up to 36 inputs, 28 outputs & 64 scalable image windows
Displays live video, applications, and IP decodes
Full HDCP copy protection capabilities
Hybrid architecture with a dedicated processor for applications
Real-time processing with no dropped frames
Up to 60 preset layouts
Overlap for edge-blenders and bezel compensation
Intuitive user interface with thumbnails

Which video wall processor is right for your project?

Find Your Video Wall Processor

Or Compare All Products in this category.

Overview

The MediaWall V display processor features an architecture that combines the real-time processing and reliability of a hardware-based processor with the flexibility of a separate processor to run applications. Add in integrated IP capabilities, extensive user-friendly features, enhanced security, and an intuitive, easy-to-operate control interface, and the result is a 4K video wall processor with enough power and versatility to drive both HD and UHD video wall systems.

The MediaWall V processor supports up to 36 video/graphic direct inputs and up to 28 outputs/display devices. It processes a full range of I/O resolutions including 4K (4096 x 2160), UHD (3840 x 2160), 2K (2048 x 1152/1080), and HD (1920 x 1080). Inputs are fully scalable for output to a UHD video wall or for display on standard video walls. An optional Application Processor (AP) decodes IP camera and other H.264 streams. HDCP capability allows the display of protected content.

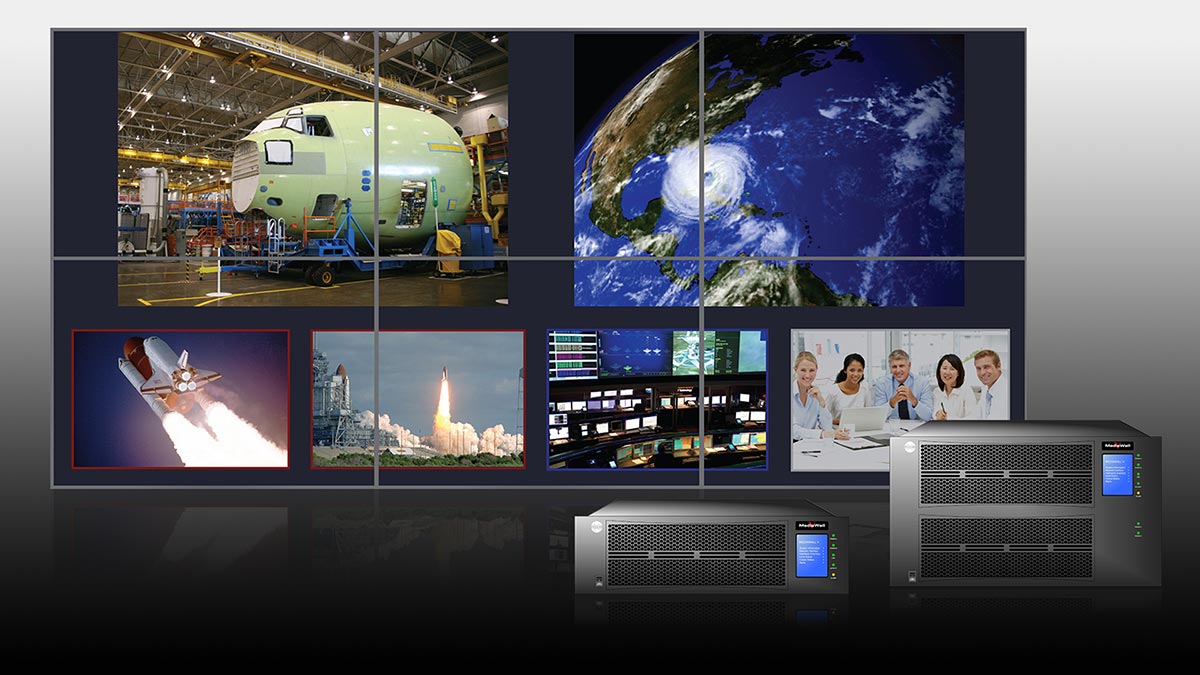

The 4K video wall processor can display any configuration of window layouts across a multi-screen array. Windows can be sized as required anywhere, within or across screen boundaries, in any aspect ratio and zoomed in to emphasize details. Signal switching and preset layout recall are fast and seamless

The video wall processor’s web-based set-up GUI supports both local and remote access, "drag and drop" window positioning and scaling, wall layout presets, and input selection. In addition, our newly introduced VIEW Controller adds a graphically-enhanced user interface with live thumbnails to enhance system operation. The processor can also be controlled by a variety of third-party devices.

For the ultimate in flexibility, the MediaWall V processor is compatible with RGB Spectrum’s MultiPoint® control room management system — an innovative hardware and software platform that provides operators with arbitrated keyboard and mouse (KVM) control over system resources.

MultiPoint Enterprise is ideal for mission-critical control room applications such as command centers, debriefing centers, security operations centers (SOCs), emergency operations centers (EOCs), industrial/process control and SCADA system monitoring. The system's unique design isolates critical systems from the network, effectively protecting sensitive data from external tampering, malware and viruses.

The versatile MediaWall V processor can control a video wall plus auxiliary monitors or even multiple video walls. It is ideal for simulation training, modeling, high-resolution video surveillance, and other graphically-rich applications. When used with 4K projectors, the processor provides adjustable overlaps for edge-blending to enable immersive, seamless UHD displays that span entire rooms - ideal for museums, theaters, auditoriums and a range of other venues.

Specifications

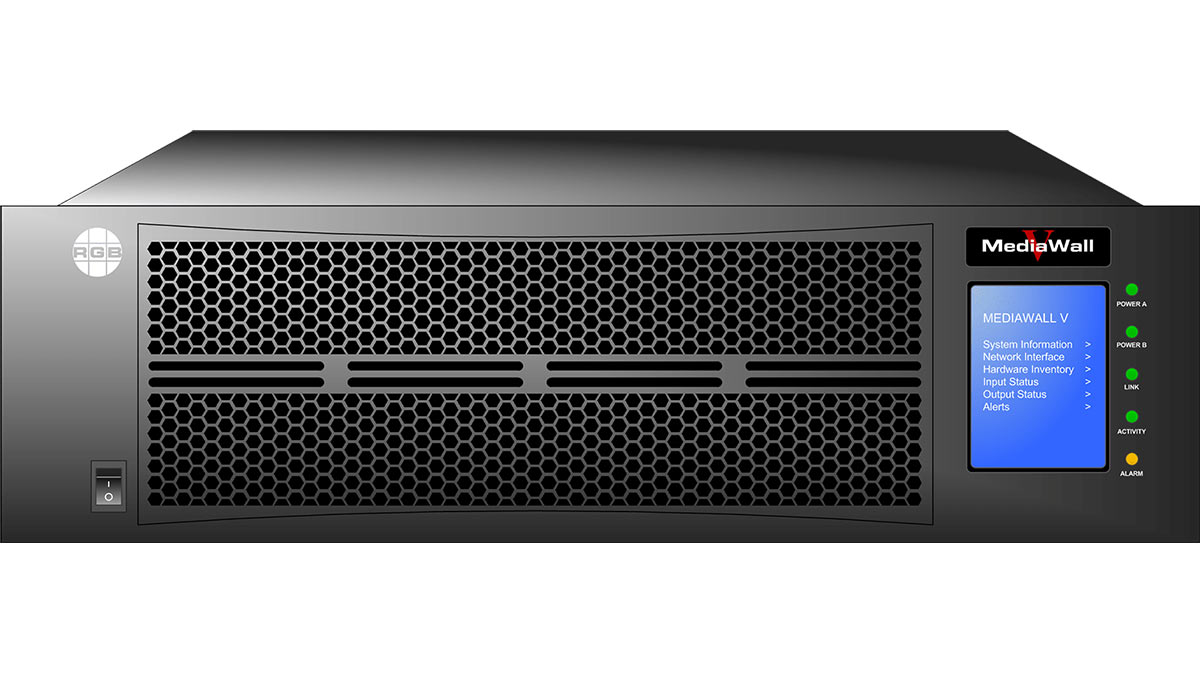

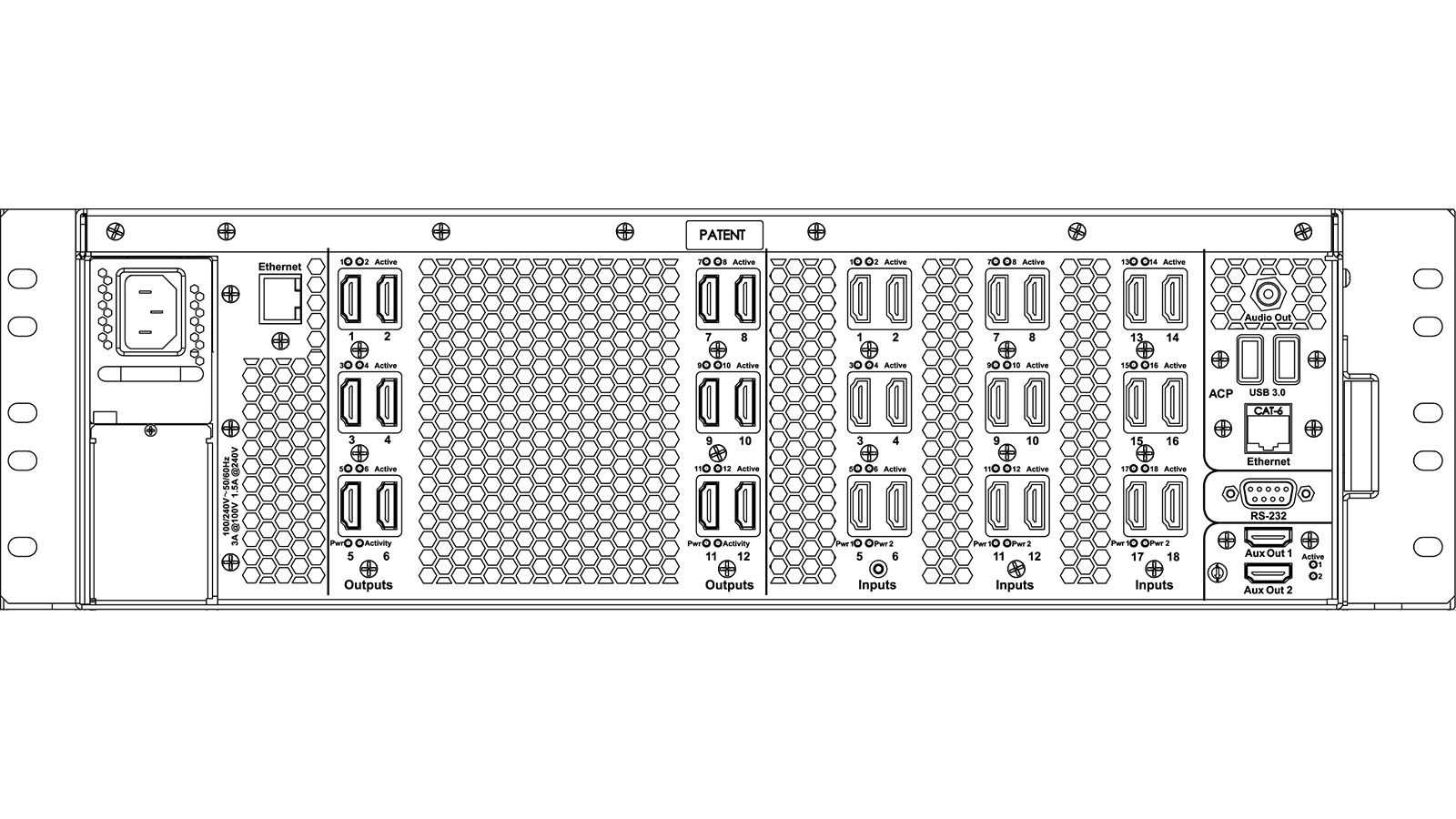

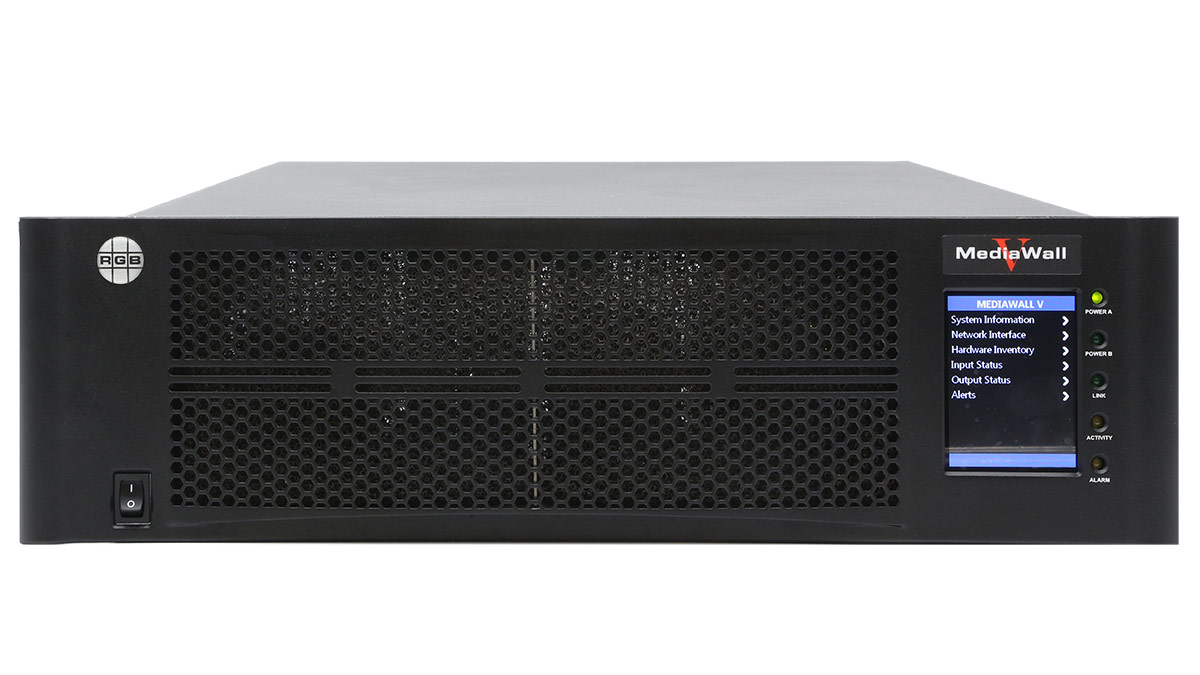

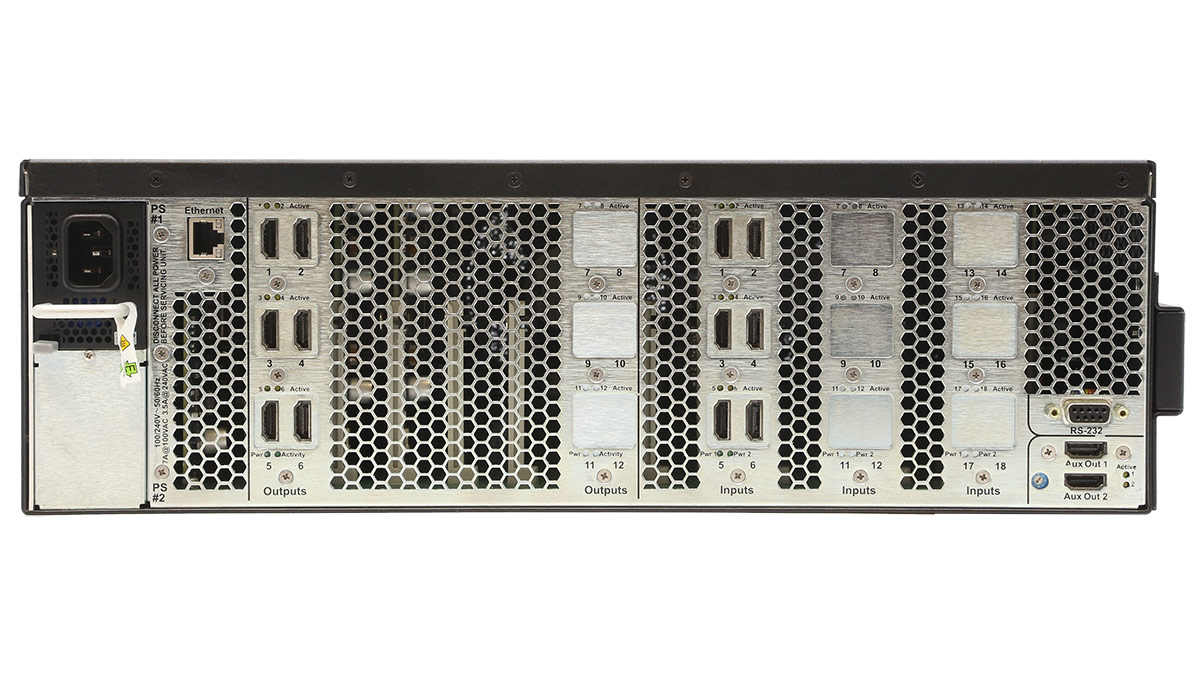

Model 500
Inputs
Number (max)
18
Resolution
640 x 480 @ 85Hz to UHD 3840 x 2160 @ 30Hz & 4096 x 2160 @ 24Hz
Connector Type
HDMI 1.4b
Clock Rate
Up to 297MHz
Color Depth
24-bit
Source Routing
Any source input to any window
Outputs
Number (max)
12 @ HD/2K, plus 2 Auxiliary Outputs
6 @ 4K, plus 2 Auxiliary Outputs
Resolution
Up to 3840 x 2160 (4K, Ultra HD, UHD) @ 30Hz and 4096×2160 @ 24Hz (Display Port option: 3840 x 2160 up to 60Hz)
Connector Type
HDMI 1.4b (Optional Display Port)
Display Windows
Number
Up to 32
Labels: Characters per label
Up to 64
Labels: Font Styles
50
Labels: International Fonts
Yes
Border Color Depth
24-bit
Physical
Cable Management
Strain Relief Bar
Size (h x w x d)
5.25 x 19.0 x 22.0 inches (3RU)
133 x 483 x 559 mm
Weight
40 lbs / 18 kg
Power Supply
Hot Plug 850W, 100 - 240 VAC auto ranging 50/60 Hz
Environmental
Operating Temperature
41 to 104 °F (5 to 40 °C)
Storage Temperature
-4 to 158 °F (-20 to 70 °C)
Operating Humidity
5% to 90% non-condensing
Altitude
Up to 13,123 ft (4000 m) at 104 °F (40 °C)
Control
Serial
RS-232, 9600-115, 200 baud
Network
Ethernet TCP/IP 10/100/1000Base-T
Command line and graphical user interface

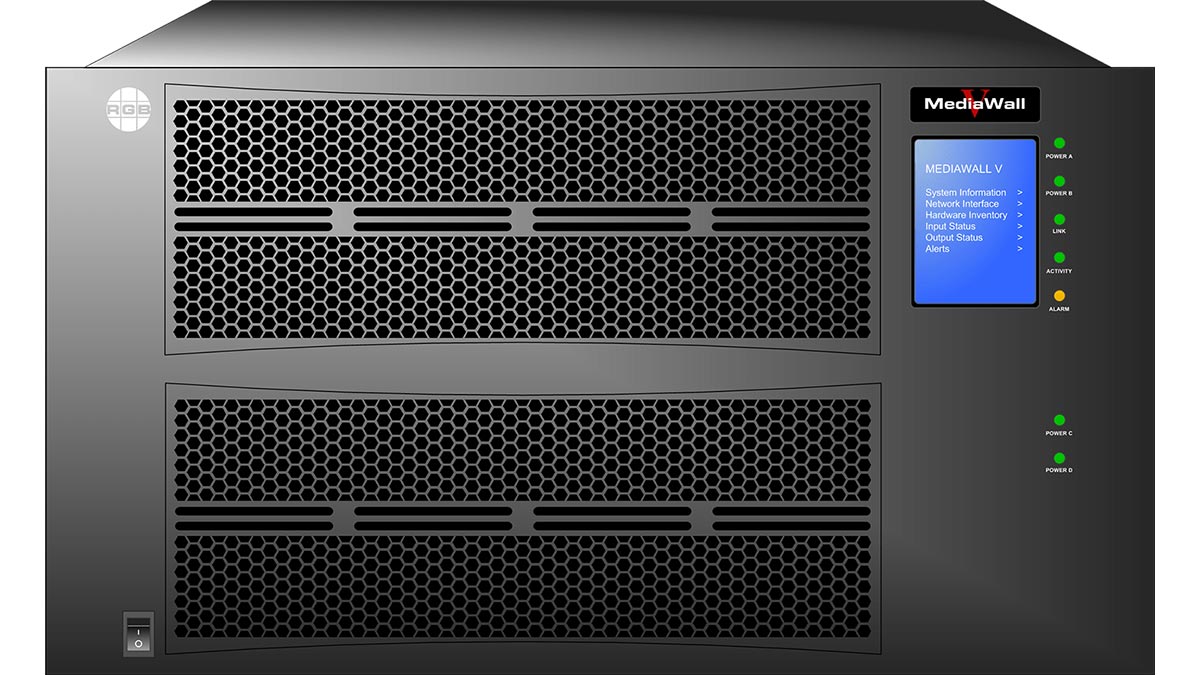

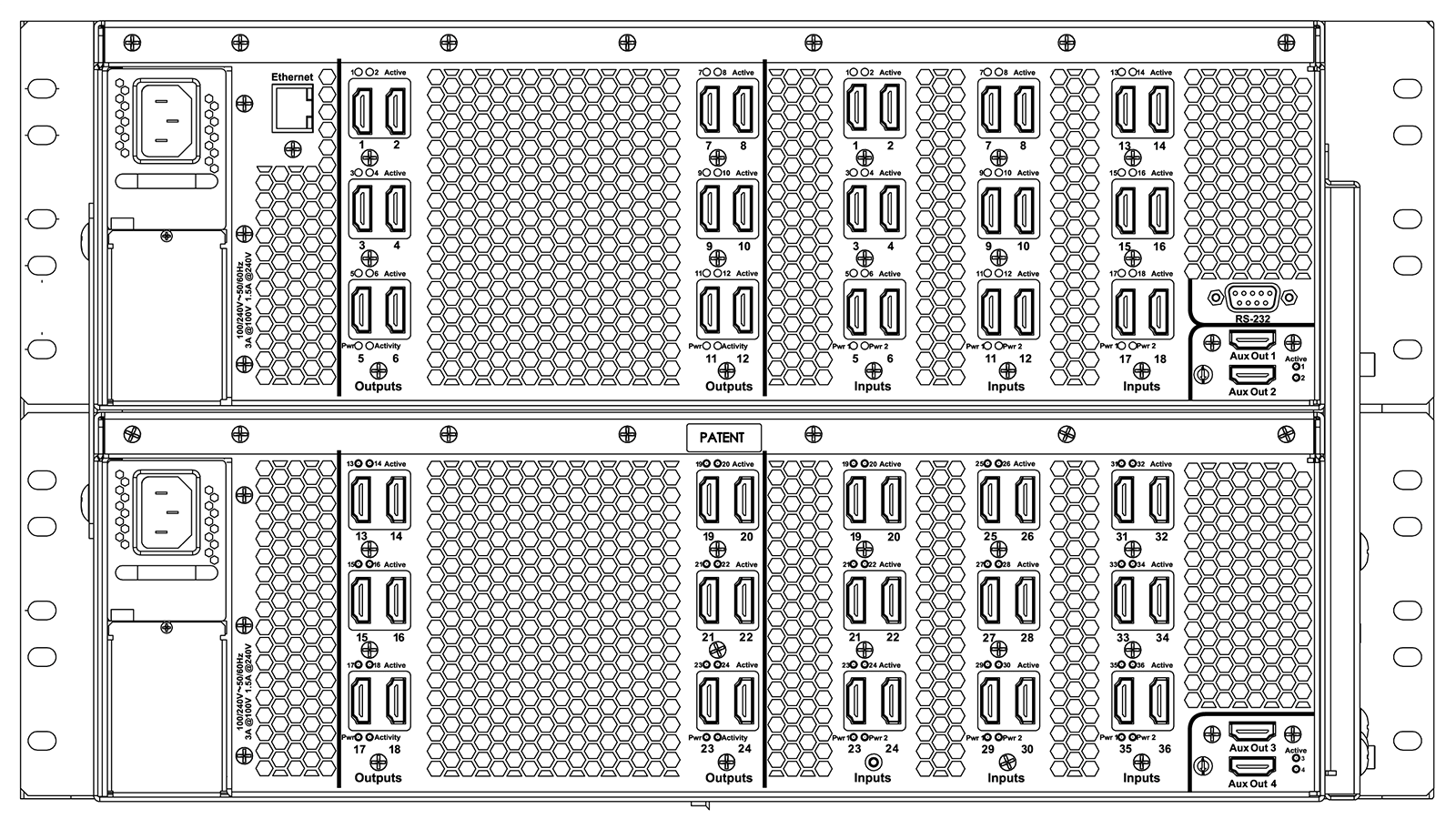

Model 550
Inputs
Number (max)
36
Resolution
640×480 @ 85Hz to UHD 3840 x 2160 @ 30Hz & 4096 x 2160 @ 24Hz
Connector Type
HDMI 1.4b
Clock Rate
Up to 297MHz
Color Depth
24-bit
Source Routing
Any source input to any window
Outputs
Number (max)
24 @ HD/2K, plus 4 Auxiliary Outputs
12 @ 4K, plus 4 Auxiliary Outputs
Resolution
Up to 3840 x 2160 (4K, Ultra HD, UHD) @ 30Hz and 4096×2160 @ 24Hz (Display Port option: 3840 x 2160 up to 60Hz)
Connector Type
HDMI 1.4b (Optional Display Port)
Display Windows
Number
Up to 64
Labels: Characters per label
Up to 64
Labels: Font Styles
50
Labels: International Fonts
Yes
Border Color Depth
24-bit
Physical
Cable Management
Strain Relief Bar
Size (h x w x d)
10.5 x 19.0 x 22.0 inches (6RU)
267 x 483 x 559 mm
Weight
82 lbs / 37 kg
Power Supply
2x Hot Plug 850W, 100 - 240 VAC auto ranging 50/60 Hz
Environmental
Operating Temperature
41 to 104 °F (5 to 40 °C)
Storage Temperature
-4 to 158 °F (-20 to 70 °C)
Operating Humidity
5% to 90% non-condensing
Altitude
Up to 13,123 ft (4000 m) at 104 °F (40 °C)
Control
Serial
RS-232, 9600-115, 200 baud
Network
Ethernet TCP/IP 10/100/1000Base-T
Command line and graphical user interface
Case Studies
University of Oregon’s innovative visualization lab uses RGB Spectrum’s leading-edge MediaWall® V  video wall display processor to advance research and education in biology, chemistry, computer science, human physiology, geology, sociology, and physics.
Case Study Info
Application
Visualization Lab
Customer
University of Oregon
Case Study Details
The InterContinental New York Barclay hotel
Case Study Info
Application
Entertainment - Hospitality
Customer
Intercontinental NY Barclay Hotel
Case Study Details
Cape Canaveral Air Force Station Video Wall
Case Study Info
Application
Command Center
Customer
Cape Canaveral Air Force Station
Case Study Details
Maritime Aquarium video wall
Case Study Info
Application
Digital Signage: Lobby
Customer
Maritime Aquarium, Norwalk, CT
Case Study Details
Taco Bell Cantina Las Vegas MediaWall V video display
Case Study Info
Application
Digital Signage: Entertainment
Customer
Taco Bell
Case Study Details
