HD & 4K Video over IP Multiviewer

RGB Spectrum’s Zio® multiviewers allow multiple streams to be decoded and viewed on a single display. Our AV over IP technology supports video and audio distribution over an IP network. Zio endpoints attach to a 1GB Ethernet switch, with encoders accepting computer and video sources at resolutions up to 4K Ultra HD and decoders for feeding displays. Both dedicated and shared networks are supported.

H.264 and H.265 decoding up to 4K UHD
Management & control across LANs & WANs
Dynamic window position / size
Mix live video + web-based content
Scripting interface for external system control
HDCP compliant
Power over Ethernet (PoE)

Which multiviewer is right for your project?

Find Your Multiviewer

Or Compare All Products in this category.

Overview

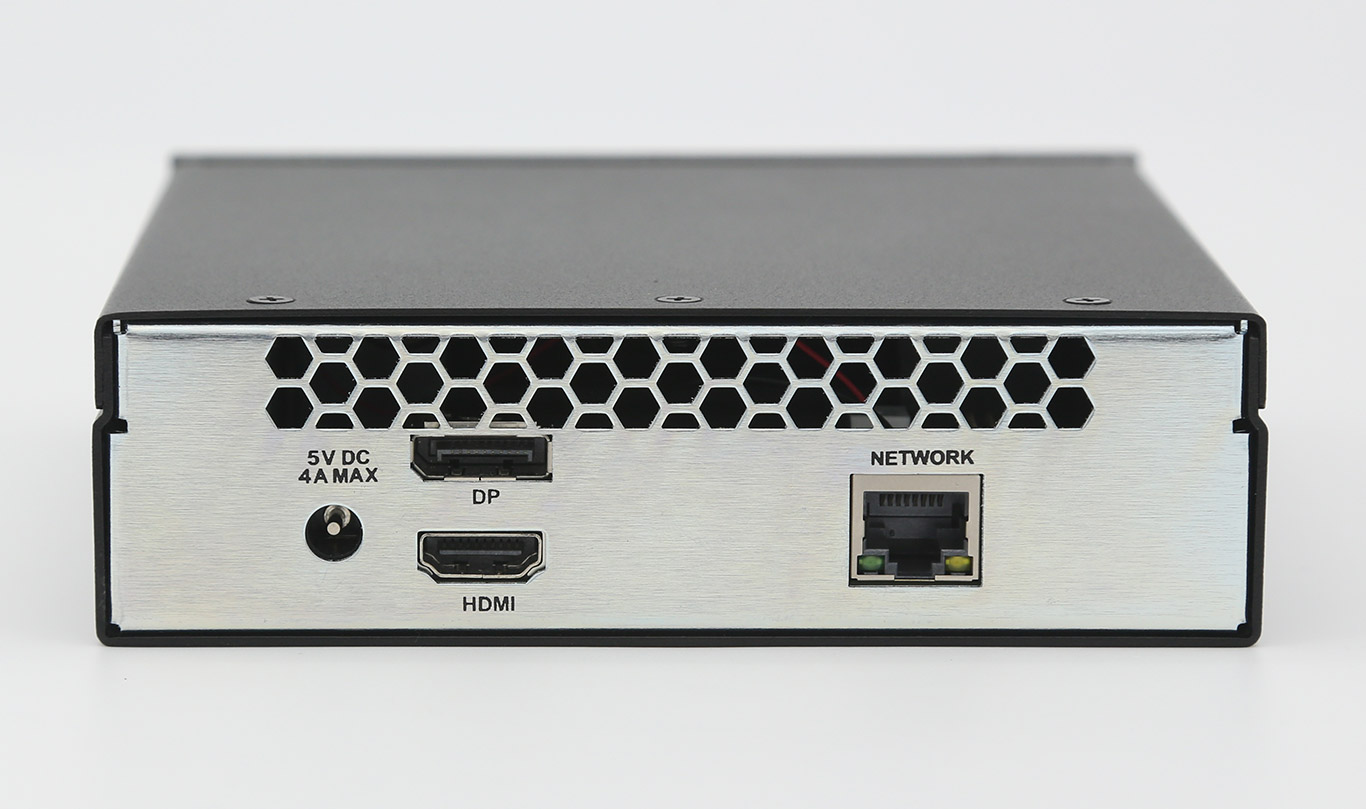

The compact Zio D2000 Series multiviewers allow multiple streams to be decoded and viewed on a single display. The D2022 model IP multiviewer allows up to four 1080p streams, or equivalents, to be placed on a screen any size, anywhere. Power over Ethernet (PoE) is provided to simplify installation.

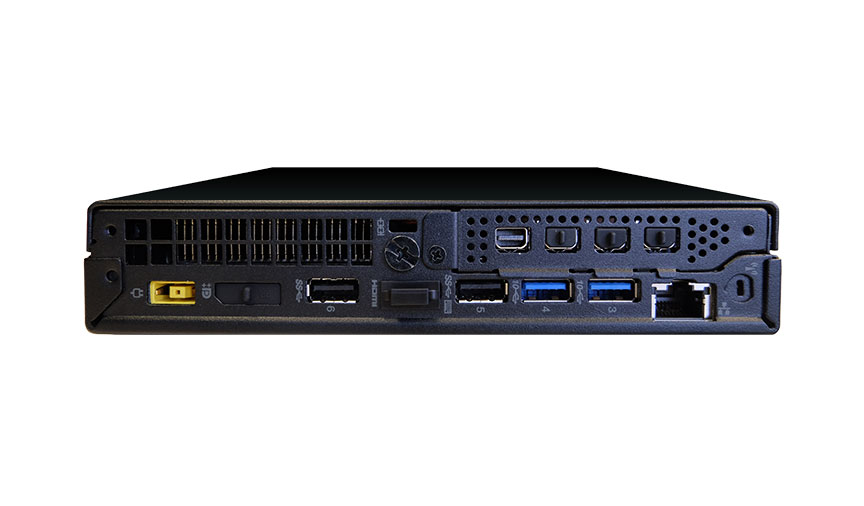

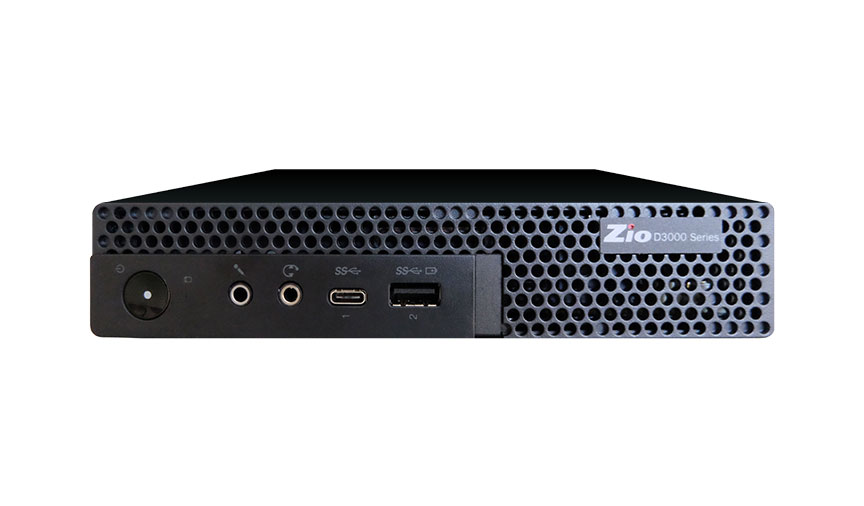

The Zio D3000 Series multiviewers build on the functionality of the D2000 Series, increasing the number of simultaneous streams displayed. The D3124 model allows up to sixteen 1K, eight 2K or two 4K streams, or other equivalents.

A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.

Specifications
Model: D2000 Series Multiviewer
Inputs
Type
Video Stream
Connector
1x RJ-45 (GigE)
Resolution
Up to 1920 x 1080 @ 60 Hz

Simultaneous Streams
16x SD, 4x FullHD resolution or equivalent

Audio Support
Digital (embedded video stream)
Outputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
Up to 1920 x 1080 @ 60 Hz
Audio Support
Digital (embedded HDMI) or Analog (mono)
Physical
Dimensions (H x W x D)
1 x 8 x 4 inches
(25 x 203 x 102 mm)
Weight
2 lbs / 0.9 kg
Power
12 VDC, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Plenum-rated
Yes
Streaming
Compression Format
H.264, H.265
Streaming Protocol
RTSP, Multicast
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000Base-T
Options
HDCP 1.4, KVM, rackmount kit, bulkhead mounting kit, power distribution unit
Model: D3000 Series Multiviewer
Inputs
Type
Video Stream
Connector
1x RJ-45 (GigE)
Resolution
Up to 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz
Simultaneous Streams
32x SD, 8x FullHD, 2x 4K resolution or equivalent
Audio Support
Digital (embedded video stream)
Outputs
Type
DisplayPort
Connector
1x DisplayPort 1.2
Resolution
Up to 4096 x 2160 @ 60 Hz
Audio Support
Digital (embedded HDMI) or Analog (mono)
Physical
Dimensions (H x W x D)
3.5 x 16.75 x 20.9 inches
(88 x 426 x 531 mm)
Weight
22.2 lbs / 10.1 kg
Power
100-240 VAC; 50/60 Hz, 250 W max
Power over Ethernet (PoE)
-
Plenum-rated
-
Streaming
Compression Format
H.264, H.265
Streaming Protocol
RTSP
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000Base-T
Options
HDCP 1.4, KVM
