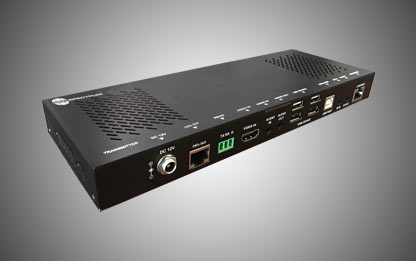

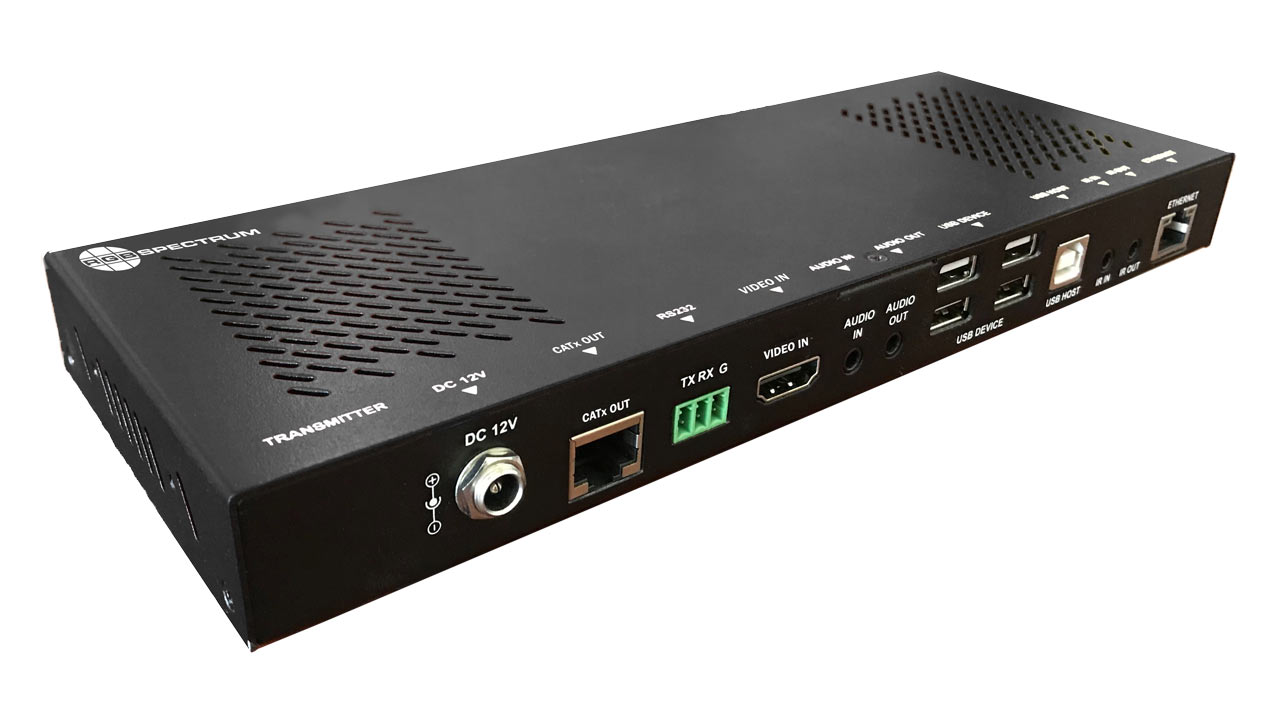

CAT-Linx 3 Plus Signal Extender

4K Endpoints with Integrated KVM Control

CAT-Linx 3 Plus extenders transmit high-resolution signals up to 100 meters (330 feet) using conventional CAT 6/7 cable. CAT-Linx 3 Plus also provides transparent USB extension for KVM control of remote devices. This state-of-the-art technology delivers visually lossless compression when transmitting a 4K 60Hz 4:4:4 signal.

Signals up to 4K 60Hz, 4:4:4 chroma and HDR 10, at data rates up to 18Gbps
4K 60Hz signal transmission up to 100 meters (330 feet) with CAT 6/7 cable
Built-in USB KVM control of remote devices
Integrated power to supply endpoints over the same CATx cable
HDCP 2.2 compliant
Embedded multi-channel audio and audio pass through over CATx
IR and serial control of displays and other AV devices
Power-over-CATx
Automatic EDID management
Convenient mounting rack for 8 RX or TX units available
VIEW ALL: Extenders
Overview

For installation ease and convenience, CAT-Linx 3 Plus extenders have integrated power to supply endpoints over the same CATx cable that carries the video and data signals. This eliminates the need for external power connections. A CAT-Linx 3 pair needs only one power supply connected to the transmitter to power both devices. The TX transmitter powers the RX receiver.

CAT-Linx 3 Plus extenders support HDCP 2.2, HDR, and multi-channel audio. In addition to built-in KVM control of remote devices, the signal extenders can control display devices using IR pass-through and bidirectional RS-232 signal transmission.

In summary, CAT-Linx 3 Plus extenders are a high-performance, feature-rich, and cost-effective solution for 4K 60Hz signal distribution with integrated KVM control of remote devices.

Specifications
Model: CAT-Linx 3 Plus TX/RX
Video
Input Signal Type
HDMI® 2.0 with HDCP 2.2
Maximum Signal Resolution
4096x2160@60Hz, 3840x2160@60Hz
Color Space & Sampling
4096x2160 & 3840x2160@60Hz: 4:4:4, 4096x2160 & 3840x2160@30Hz: 4:4:4, 2K & HD @60Hz: 4:4:4
Input Video Level
0.5~1.0V p-p
Maximum Pixel Clock Rate
600 MHz
Transport Signal Type
CAT 5e/6/6a/7
Video Impedance
100 ohms
Transmission Distance
Cat 5e cable: 3840x2160 to 90m; 1080P to 100m
Cat 6/6a/7 cable: 3840x2160 to 100m; 1080P to 150m
Audio
Audio Formats
HDMI® Embedded Audio, Analog Stereo
Control
Control Method
Ethernet
External Device Control
Via IR (IR Emitter & Receivers included) & RS232
USB
Connections: TX & RX
One USB Host and four USB Device ports for remote KVM control
USB Version
2.0
General
Operating Temperature
0 to 45 °C (32 to 113 °F)
Storage Temperature
-20 to 70 °C (-4 to 158 °F)
Humidity
10% to 90%, non-condensing
Power Supply
12V, 3A DC / Power-over-CATx
Dimensions (W x H x D)
9.6 x 3.55 x 1.0 inches (245 x 90.2 x 25 mm)
Weight
1.45 lbs / 0.66 kg
Safety
CE
EMI/EMC CE
FCC Class A
