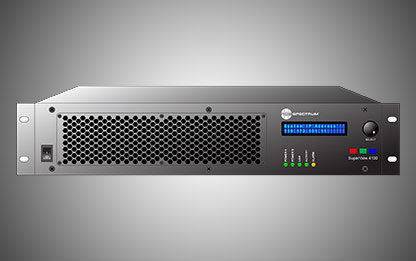

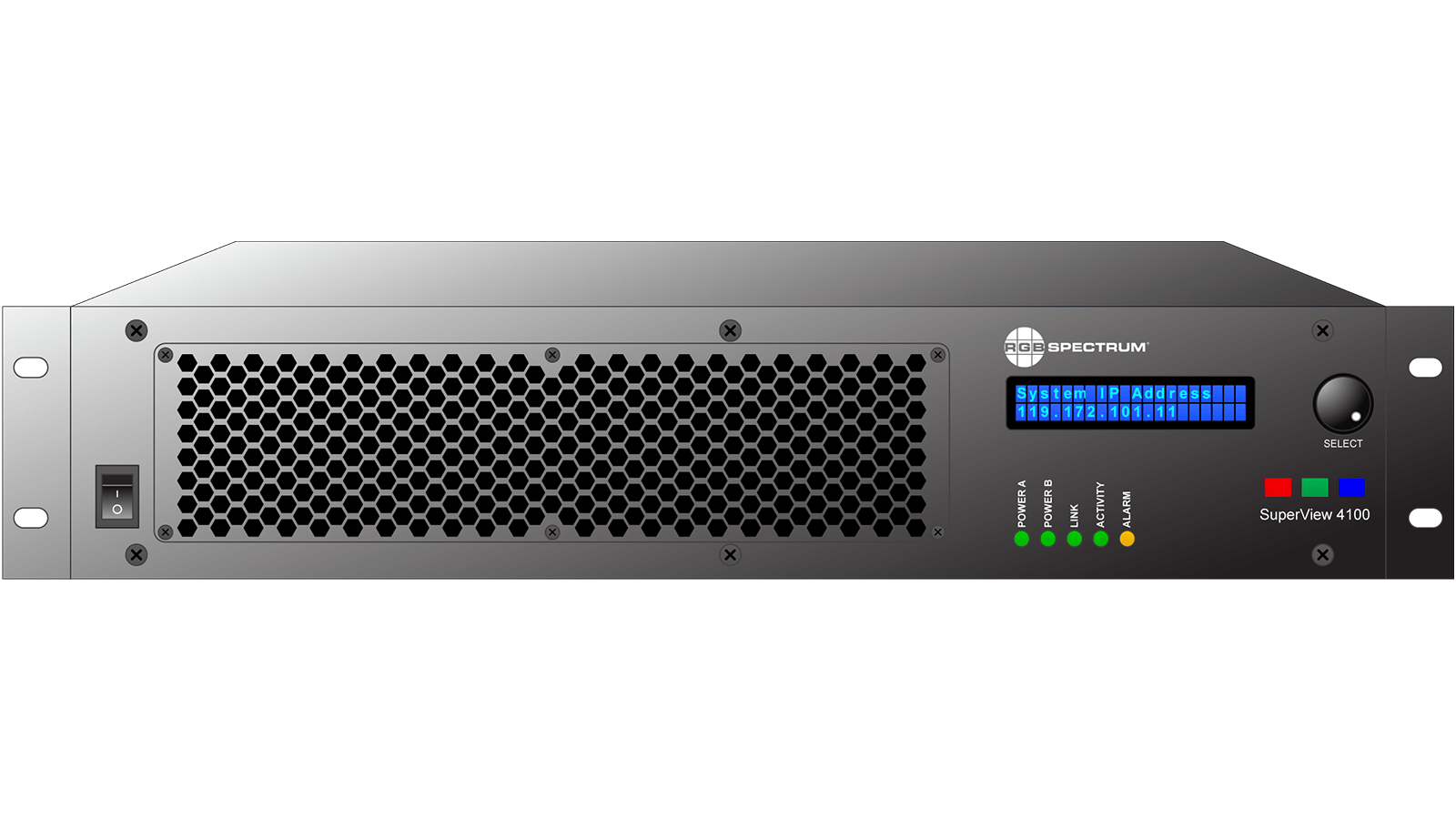

SuperView 4100 Multiviewer

Powerful DVI Multiviewer and Multi-image Display Processor

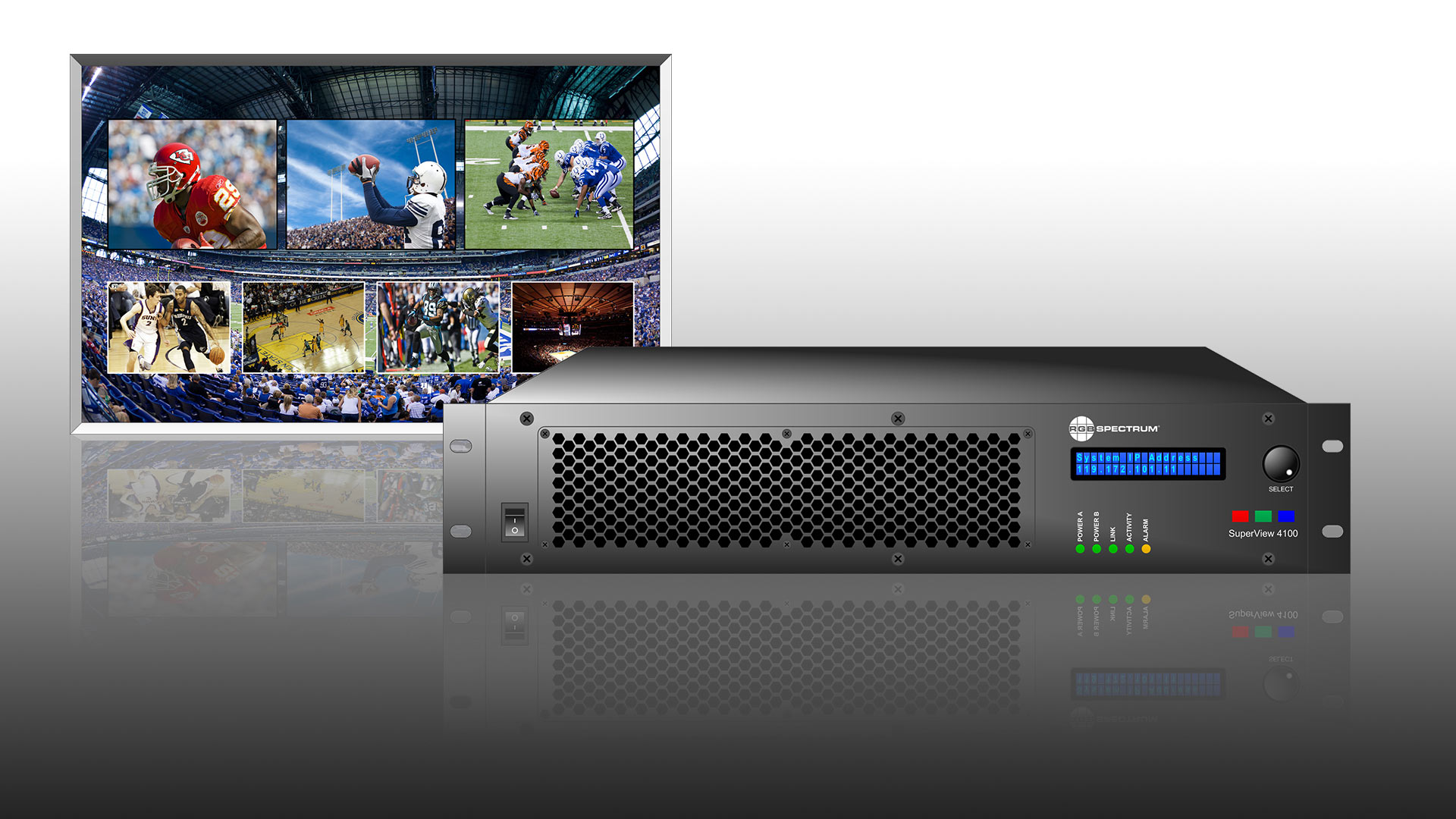

With RGB Spectrum’s renowned image processing as the foundation, the SuperView® 4100 Multiviewer offers eight scalable windows and complete layout flexibility.

Up to 16 RGB, DVI or HDMI inputs
1 output with up to 8 scalable windows
Full range of input and output formats
Single or dual-link DVI outputs
Dynamic window scaling
DVI input cable equalization
Pan and zoom, titles and borders
Programmable presets
On screen cursor control
HDCP compliant
View All:

Which multiviewer is right for your project?

Find Your Multiviewer

Or Compare All Products in this category.

Overview

The SuperView 4100 multiviewer accepts eight DVI, HDMI or RGB inputs. With plug-and-play ease, the multiviewer supports a full range of input and output resolutions. Users can also create custom files for non-standard resolutions. A dual-link output option is available; with this option, the DVI multiviewer can process dual-link outputs up to 2560x1600, for compatibility with dual-link capable monitors and projectors.

The SuperView 4100 multiviewer offers a full array of features that include smooth pan and zoom functionality, custom borders, titling, window priority and programmable presets. With superb scaling built-in, images can be displayed anywhere on screen, in any size or aspect ratio.

In addition to the dual-link output option, other available options for the multi-image display processor include a redundant power supply, HDCP support and RGB Spectrum’s patented SinglePoint KvM. This unique option builds on traditional KVM technology to enable a single user to control all source computers displayed by the multi-image display processor with a single keyboard and mouse.

With superb features and 24/7 reliability, the SuperView 4100 multiviewer offers unbeatable quality and value in a full-function multi-image display processor.

Specifications
Model: SuperView 4100 multiviewer

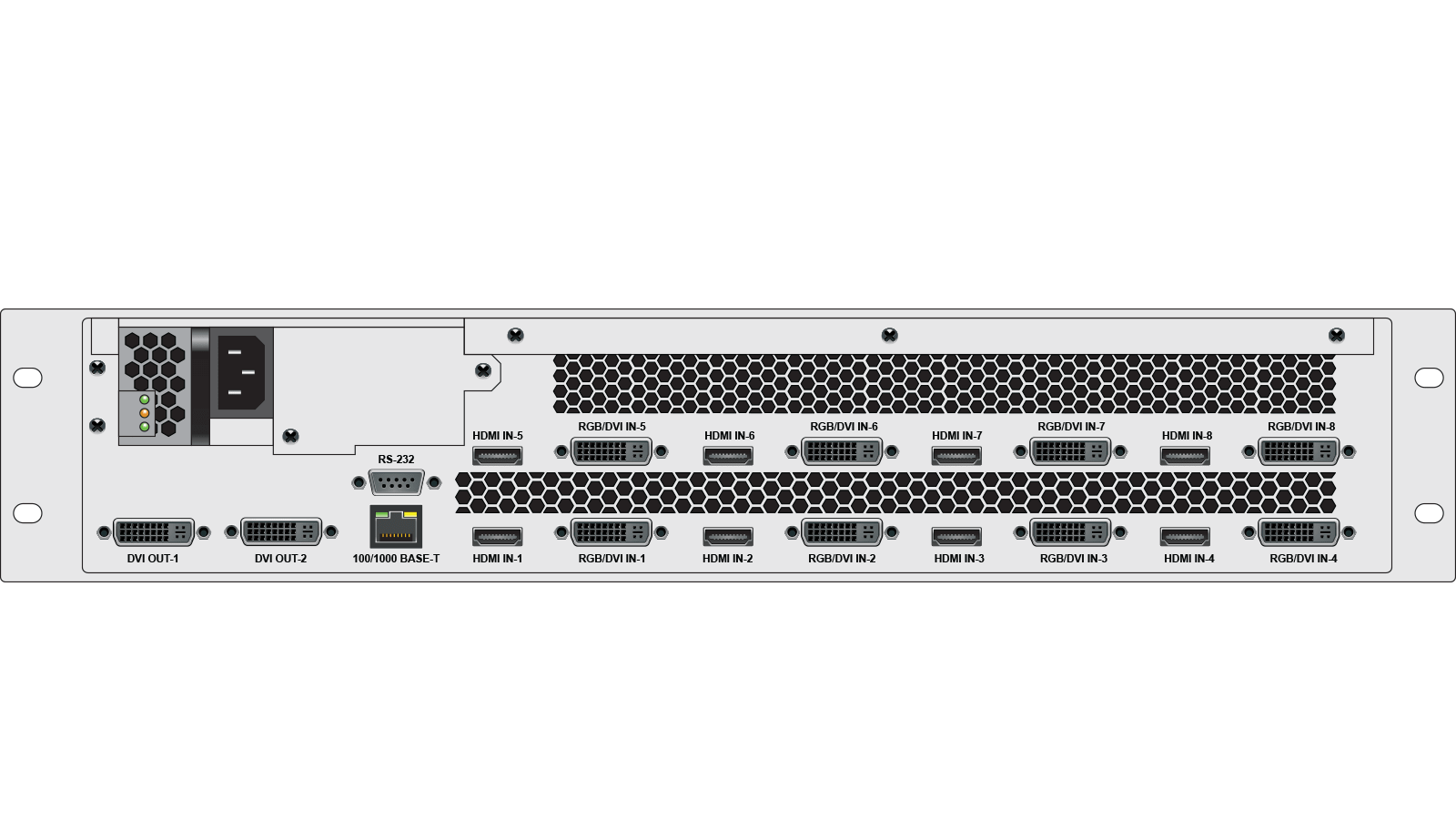

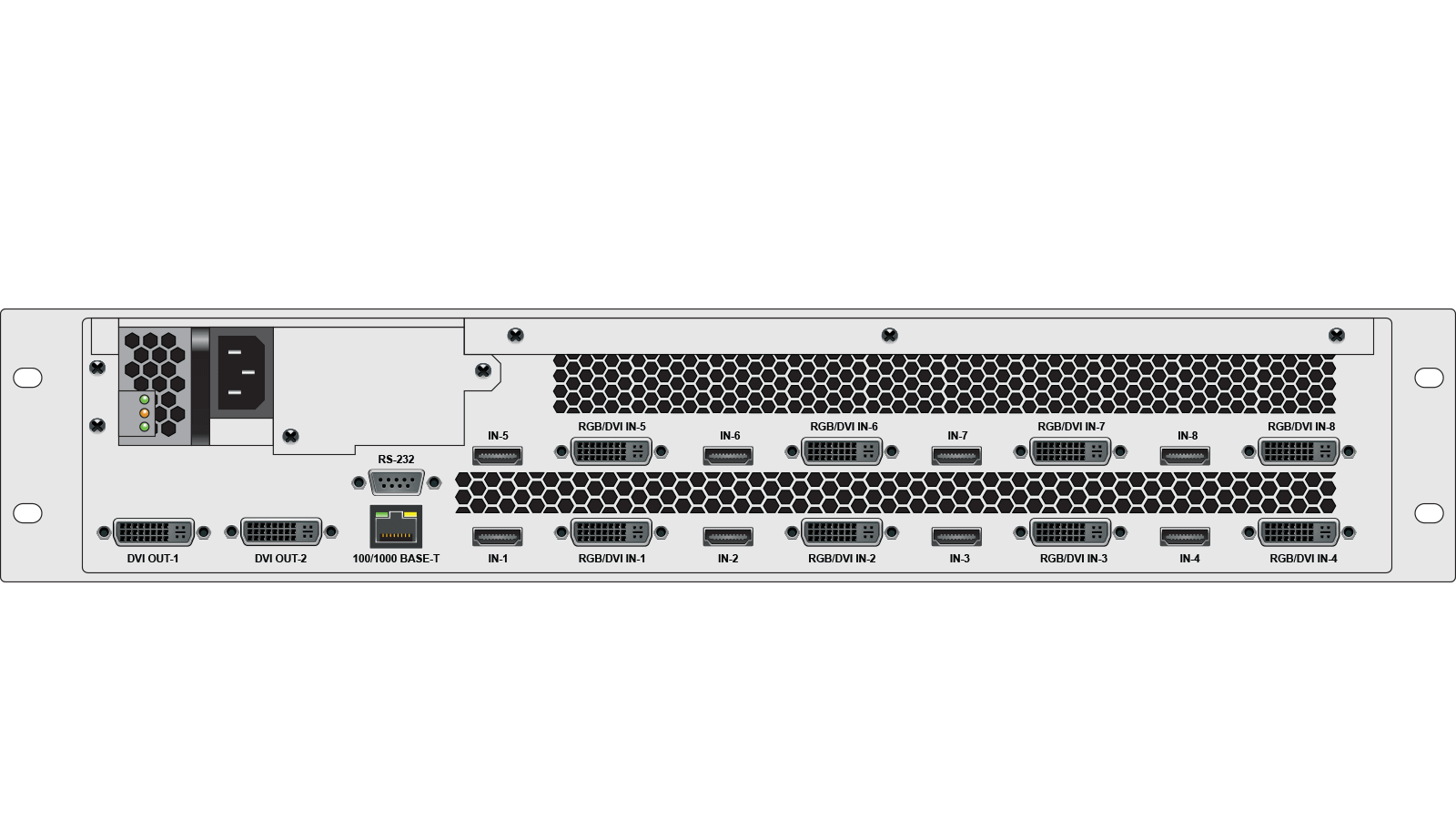

Inputs
RGB/YPbPr/HD
8x (on DVI-I)
DVI
8x (on DVI-I single-link 1.0)
HDMI (1.3a)
8x (on HDMI)
Resolution
640x480 to 1920x1200, 2048x1152, 720p, 1080i, 1080p
Color depth
24-bit
Horizontal scan rate
31 kHz to 125 kHz
Frame rate
Up to 200 Hz
Clock rate
Up to 165 MHz
Video levels
1.0 V p-p for G and Y composite 0.7 V p-p for R, B and PbPr
Sync type
RGsB, RGBS, RGBHV, YPbPr, (tri-level or bi-level sync on Y)
Cable equalization
Automatic or manual, up to 164 ft (50 m) DVI
HDCP
Single-link output mode: Compliant
Dual-link output mode: Non-compliant
Outputs
DVI single-link
2x (on DVI-I, digital only)
DVI dual-link
1x (option) on DVI-I
Resolution
Up to 1920x1200, 2048x1080
Dual-link to 2560x1600
Horizontal scan rate
12 kHz to 125 kHz
Frame rate
50 to 200 Hz
Clock rate
25 to 165 MHz (single-link) 165 to 330 MHz (dual-link)
Pin Power
500 mA @ 5 VDC per output
Physical
Dimensions (H x W x D)
3.5 x 17 x 18 inches (8.9 x 43.2 x 45.7 cm) (2RU)
Weight
25 lbs / 11.4 kg
Control
Ethernet 10/100Base-T, Telnet
RS-232, Web interface
Power
100 - 240 VAC auto ranging
50/60 Hz, 125 W maximum
Options
SinglePoint KvM, redundant power supply
Environmental
Temperature Operating, nominal
41 to 104 °F (5 to 40 °C)
Temperature Non-Operating
-4 to 158 °F (-20 to 70 °C)
Humidity Operating
5 to 90%; noncondensing
Altitude
Up to 13,123 ft (4000 m) at 104 °F (40 °C) or below

Patents: US 8,120,581, US 8,184,065 and other patents pending
