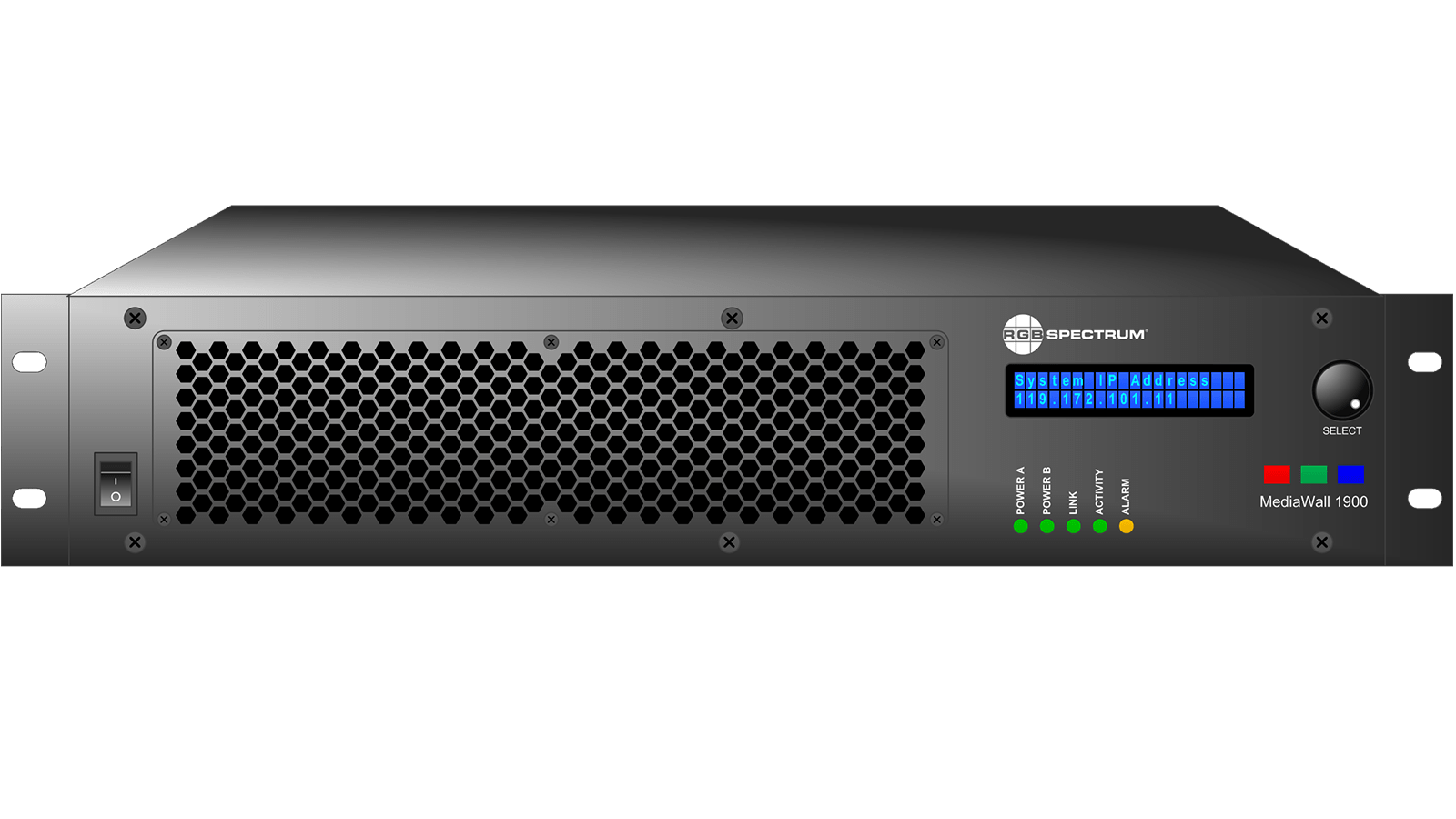

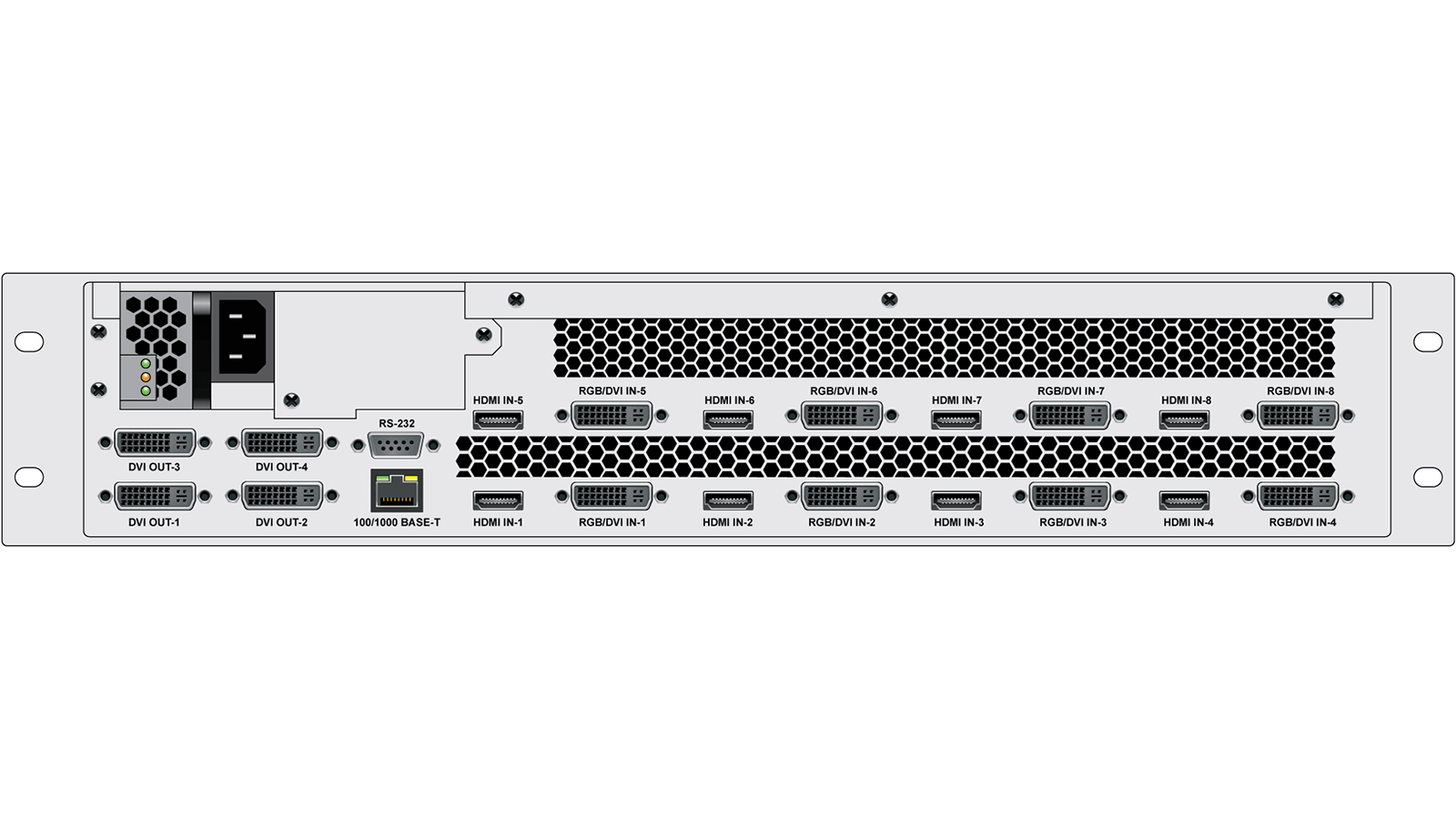

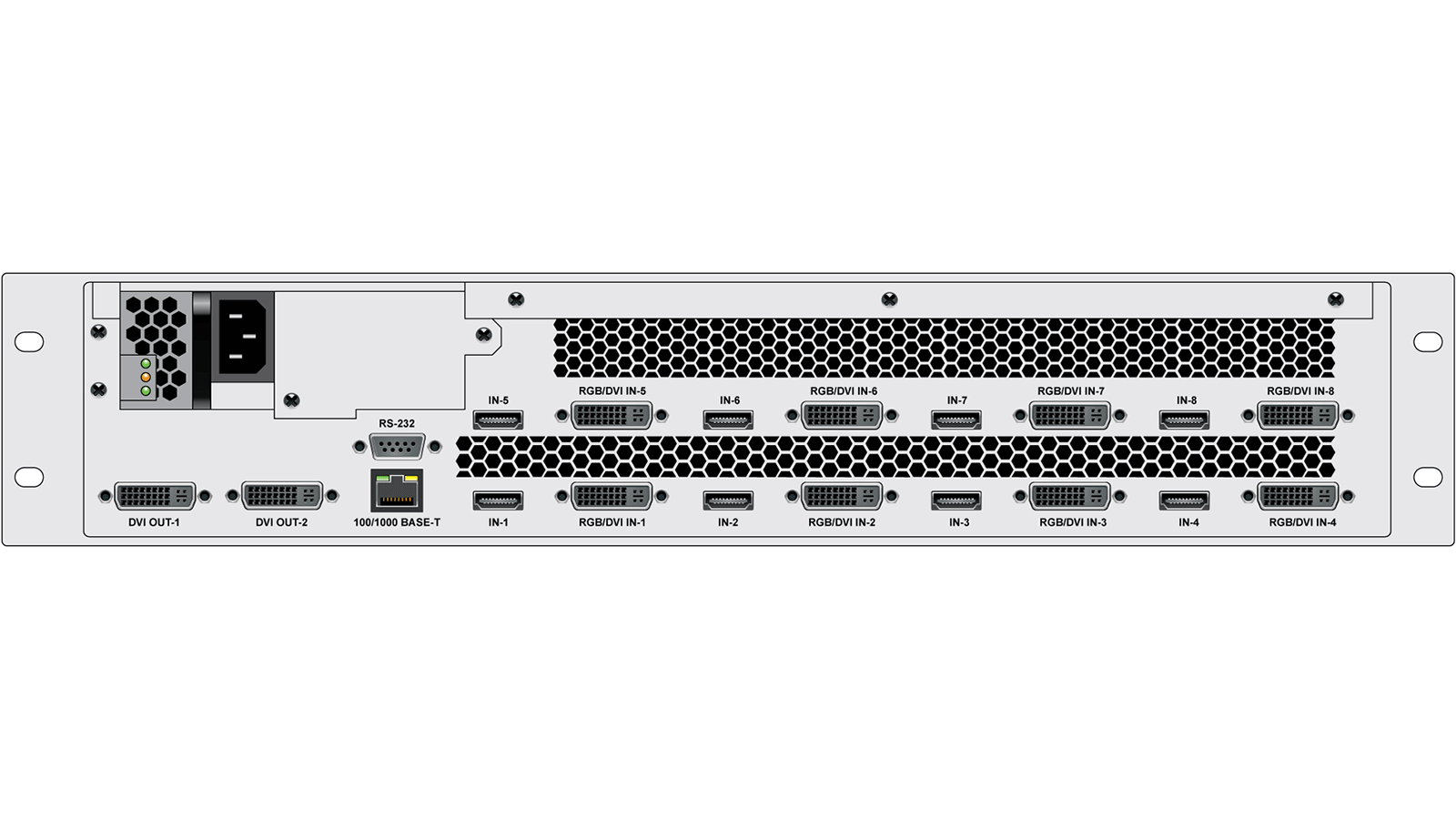

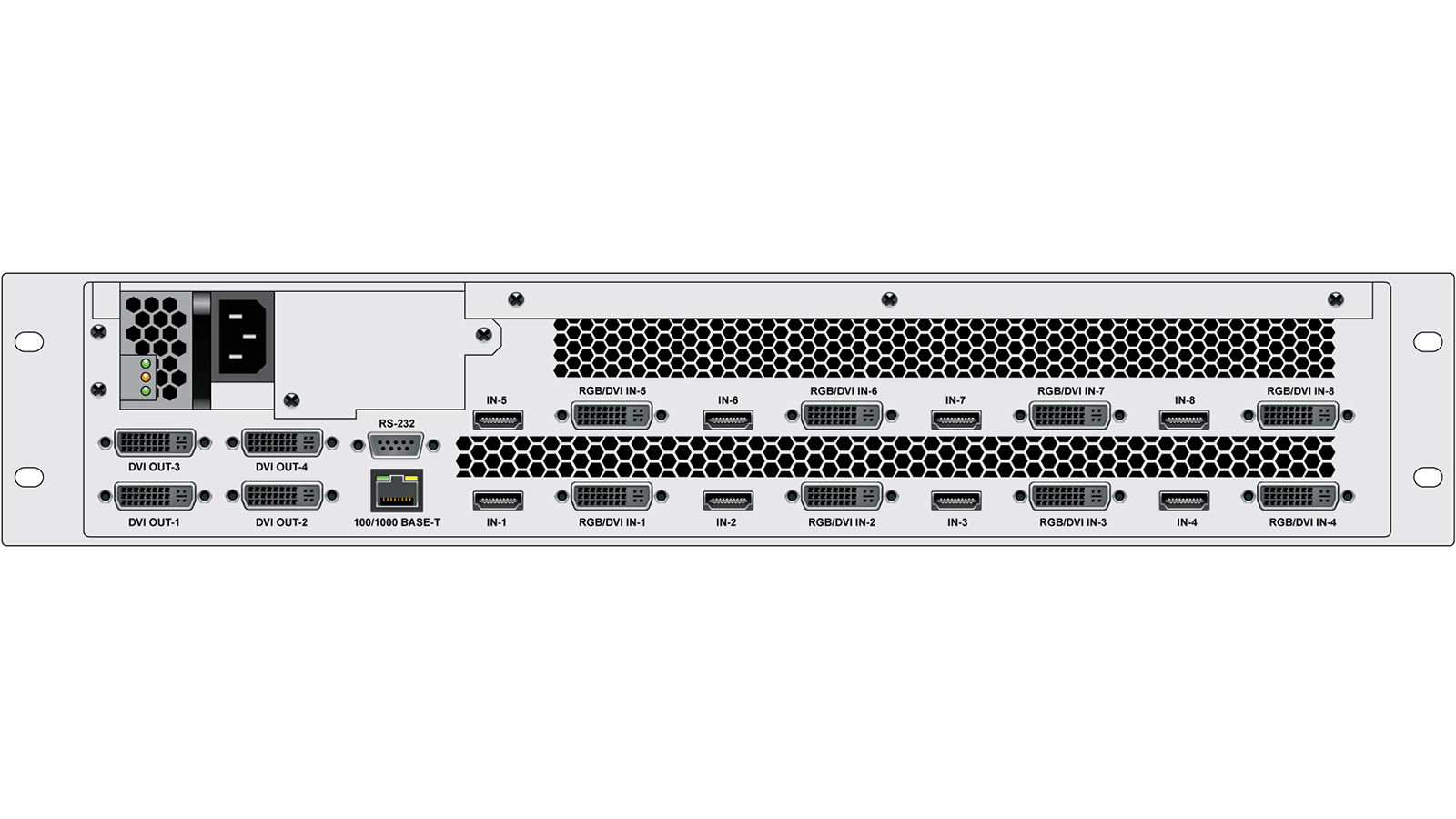

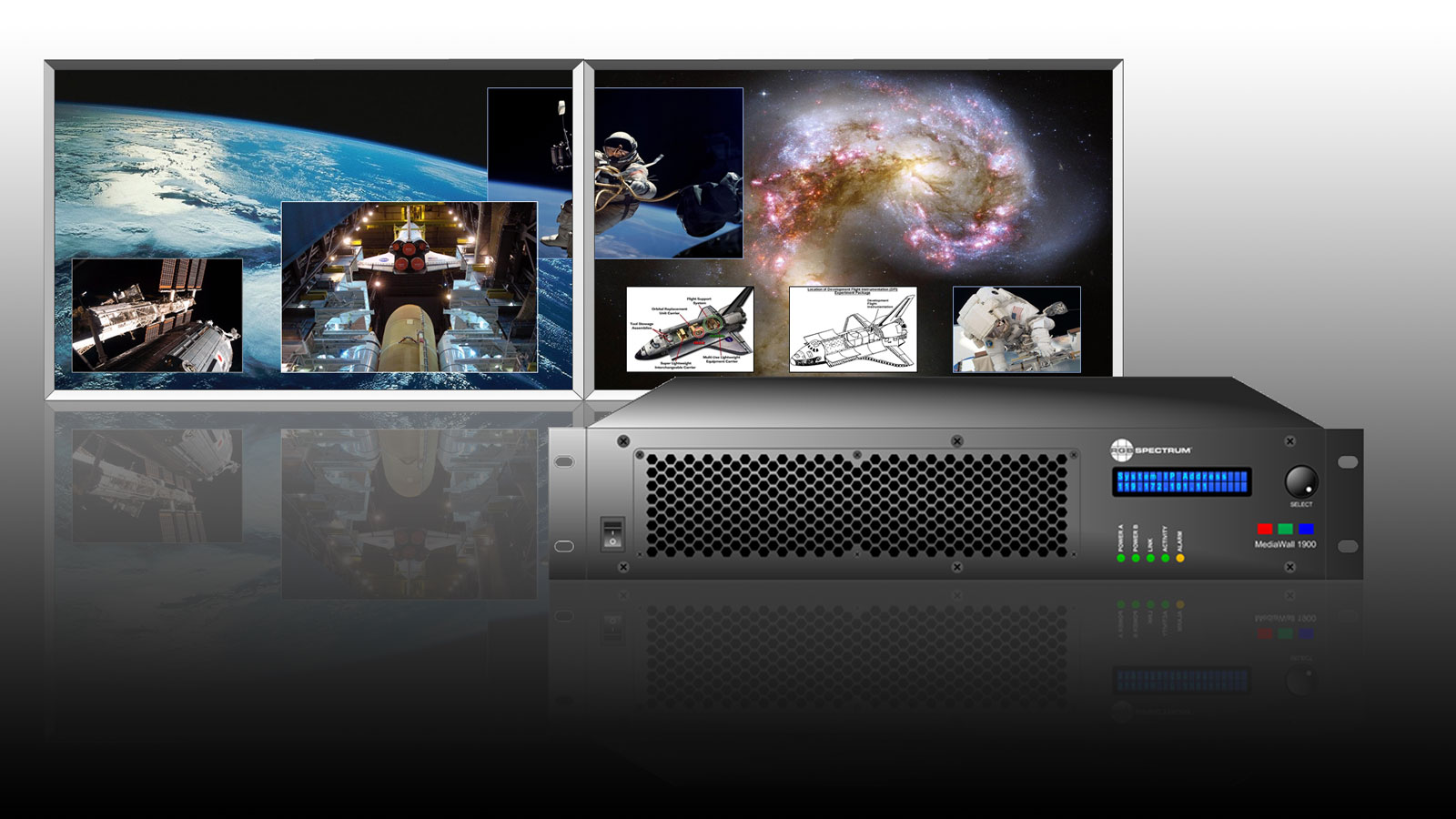

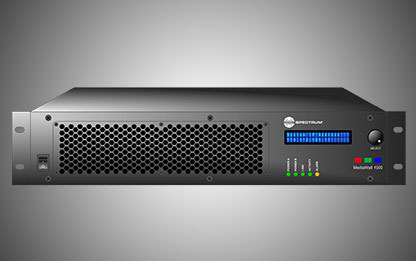

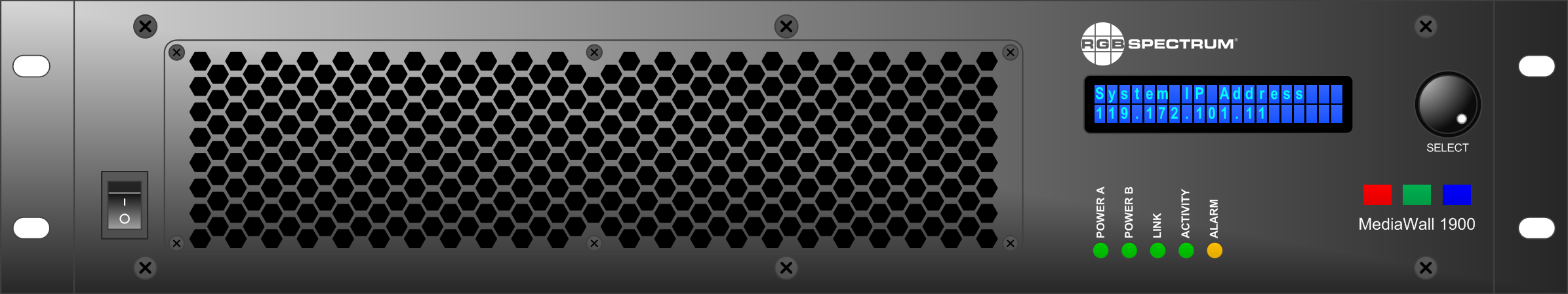

MediaWall 1900/2900 Display Processors

DVI & HDMI Video Wall Processor for Video Wall Displays

RGB Spectrum’s MediaWall® Display Processors provide best-in-class solutions for video wall displays. Using real-time embedded operating systems that are purpose-built to handle video and graphics, MediaWall 1900 and MediaWall 2900 display processors offer unparalleled flexibility, enhanced security, and real-time throughput with no dropped frames, to provide users with a superb visual experience.

24 inputs; 2 or 4 outputs
Up to 8 windows for graphics and/or video
Overlap for edge-blenders and bezel compensation
Fully real-time — no dropped frames
Superb video quality
Embedded operating system
Robust 24/7 operation
Smooth scaling, panning and zooming
Save and recall up to 50 presets

Which video wall processor is right for your project?

Find Your Video Wall Processor

Or Compare All Products in this category.

Overview

With plug-and-play operation, these video wall processors offer easy configuration of window layouts and presets. The MediaWall 1900 configures up to eight multi-format windows that can be output to two monitors or projectors. The MediaWall 2900 also offers eight multi-format windows that can be output to four monitors or projectors with full bezel compensation.

MediaWall display processors accept DVI, HDMI, and RGB inputs, and support video and graphic signals up to 1920x1200 and HD inputs up to 2048x1152. With the optional DVI dual-link output option, the MediaWall 2900 display processor can support output resolutions up to 2560x1600. In addition, when used with a VDA or DSx 264 Codec, the videowall systems can also display IP streams from remote locations.

For both graphics and video, these video wall processors truly excel when it comes to window layout possibilities. MediaWall processors can display windows in any size or position, including across bezels, in correct aspect ratio or stretched to fit, with pixel perfect clarity. Windows can be bordered and labeled, and the image inside the window can be panned or zoomed to emphasize detail. Preferred configurations of windows can be stored as “presets,” which can be easily recalled to immediately change the window layout on the video wall displays.

Designed for 24/7 reliability, these video wall processors are enclosed in a robust 2RU rack mountable chassis that is suitable for even the most demanding environments. RGB Spectrum’s real-time, embedded operating system offers the highest level of security. If power fails and is subsequently restored at your facility, the videowall system will re-boot immediately and restore all windows to their exact positions.

With the highest video quality on the market and the most robust operating system available, RGB Spectrum’s MediaWall 1900 and MediaWall 2900 display wall processors combine real-time wall control with superb visual clarity, making them an ideal solution for mission-critical videowall applications.

Specifications
Model: MediaWall 2900/1900 Display Processors
Configurations
Max Configuration
24 inputs, 8 windows, 4 / 2 outputs
Inputs
RGB Analog (Interlaced and progressive)
Number/type
2x analog RGB/YPbPr/HD per module
Video level
1.0 V p-p for G and Y composite, 0.7V p-p for RB and PbPr
Input impedance
75 ohms
Sample clock rate
Up to 165 MHz
Horizontal scan rate
15 kHz to 125 kHz
Frame rate
Up to 200 Hz
Resolution
640x480 to 1920x1200, 2048x1152, 720p, 1080i, 1080p
Color depth
24-bit
Sync type
RGsB, RGBS, RGBHV, YPbPr (tri-level or bi-level sync on Y/G)
Cable equalization
Automatic or manual, up to 164 ft (50 m) DVI
Connector type
15-pin HD
DVI Digital
Number/type
8x DVI single link per frame
Resolution
640x480 to 1920x1200 and 2048x1152, 720p, 1080p
Color depth
24-bit
Cable equalization
Automatic or manual; up to 164 ft (50 m)
Connector type
DVI-I (digital and analog)
HDCP
Compliant
HDMI
Number/type
8x HDMI 1.3a
Resolution
640x480 to 1920x1200 and 2048x1152, 720p, 1080i, 1080p
Color depth
24-bit
Cable equalization
Automatic or manual; up to 164 ft (50 m)
Connector type
HDMI
HDCP
Compliant
IP Input Options
H.264
8 SD or 2 HD streams per optional external module
VNC
Netop remote control software
Outputs
DVI single-link
4 (MW2900), 2 (MW1900)
DVI dual-link
2 (MW2900)
Resolution
Up to 1920x1200 and 2048x1152, 3840x2160p, 4096x2160p (MW2900)
Connector Type
DVI-I (digital only)
Horizontal scan rate
31 kHz to 125 kHz
Frame rate
Up to 200 Hz
Clock rate
25 to 165 MHz (single-link)
165 to 330 MHz (dual-link)
Sync type
SRGsB, RGBS, RGBHV, YPbPr
(tri-level or bi-level sync on Y/G)
Pin Power
500 mA @ 5 VDC
General
Power
100 - 240 VAC auto ranging 50/60 Hz, 125 W maximum
Control
Ethernet 10/100BaseT, Telnet, RS-232
Web interface, 3rd party controllers
Dimensions (W x H x D)
17 x 3.5 x 18 inches (43.2 x 8.9 x 18 cm) (7RU)
Weight
< 25 lbs / 11.4kg
