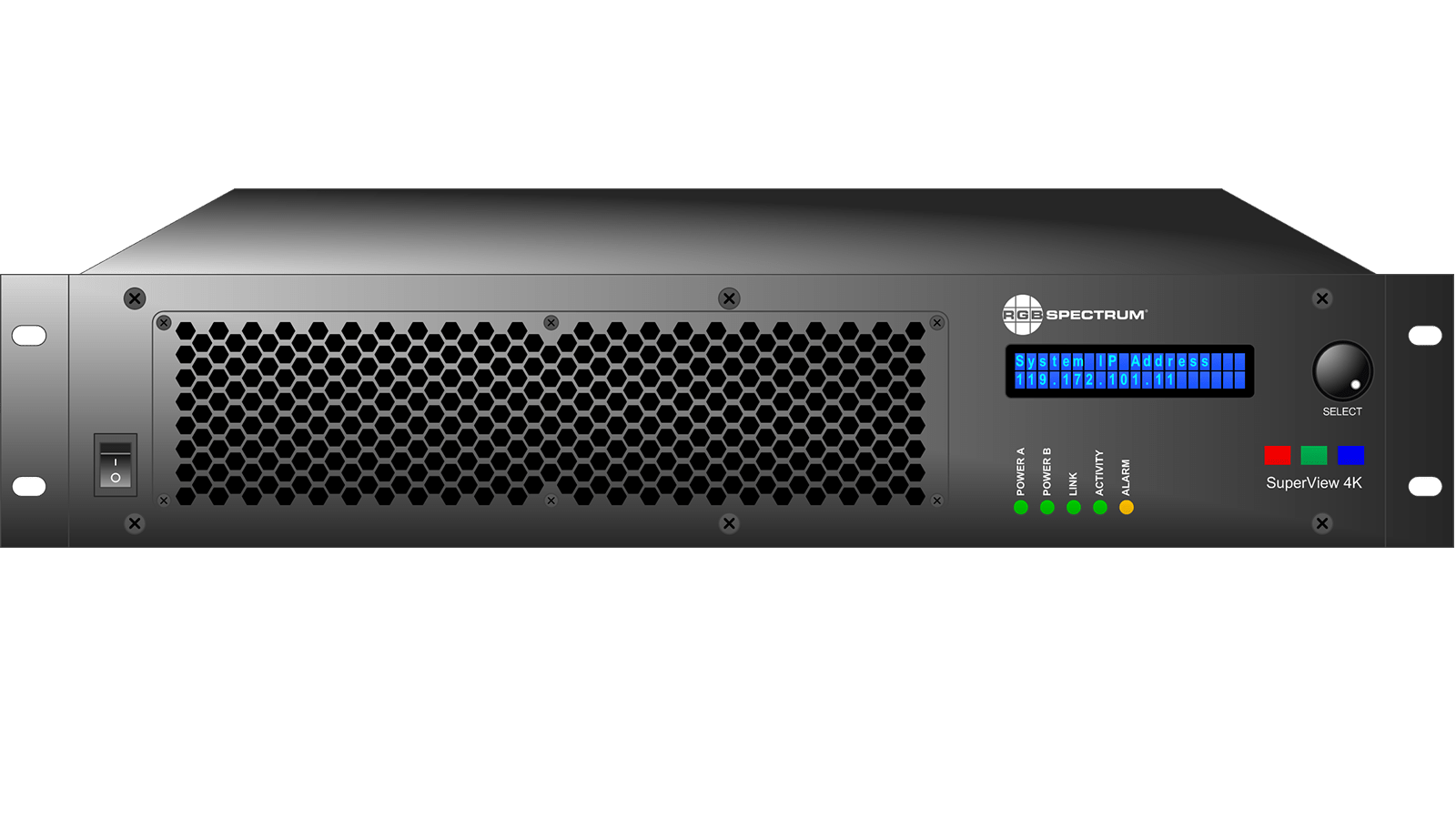

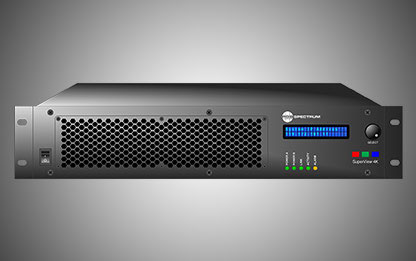

SuperView 4K Multiviewer

An 8-Megapixel 4K Ultra HD Multiviewer

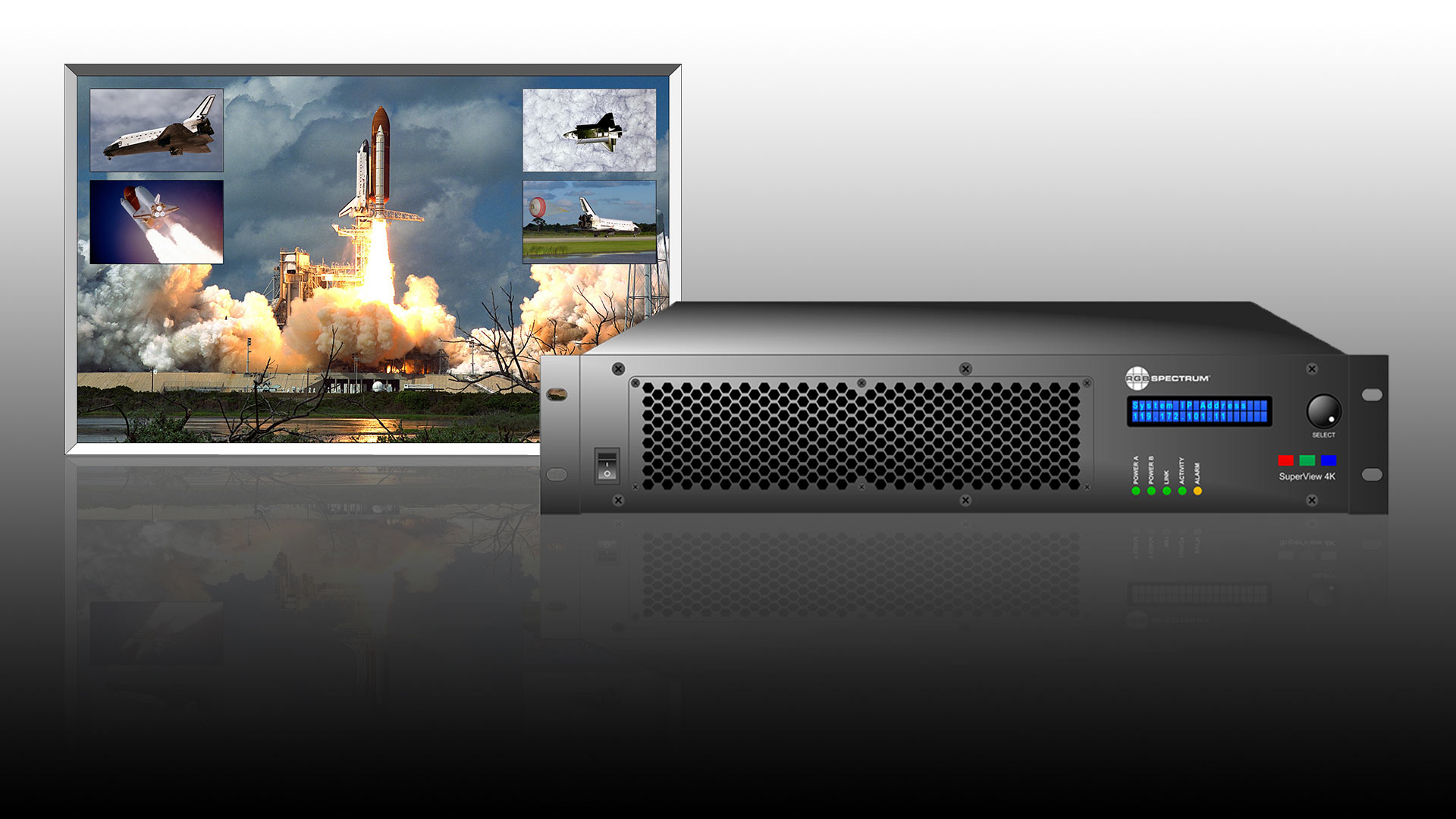

When the SuperView 4K multiviewer is combined with a 4K monitor or projector, the result is a remarkable 8 megapixel multi-image display solution with unmatched clarity. RGB Spectrum’s real-time, embedded architecture results in superb image processing, with no dropped frames.

DVI and HDMI® inputs
4K signals or up to 8 HD windows
Full range of input and output formats
Single-link or dual-link DVI outputs
Dynamic window scaling - any size, anywhere
DVI input cable equalization
Pan and zoom
Titles and borders
Programmable display layouts
HDCP compliant
VIEW ALL: Multiviewers
Overview

When the SuperView 4K multiviewer is combined with a 4K monitor or projector, the result is a remarkable 8 megapixel multi-image display solution with unmatched clarity. RGB Spectrum’s real-time, embedded architecture results in superb image processing, with no dropped frames.

When 4K content is displayed, up to four HD (1920x1080) windows can be arranged on screen. When HD content alone is used, up to 8 windows are available, with the full complement of SuperView creativity at your fingertips. Regardless of the layout, any HD window can be shown at full resolution, without requiring downscaling. At every product demonstration and trade show, customers consistently remark about the unparalleled quality of the SuperView 4K multiviewer's multi-window video output.

In addition to the SuperView 4K multiviewer’s ability to manipulate a full range of video and graphic resolutions, the multi-window 4K video processor offers a range of creative features — including dynamic window sizing and positioning, panning and zooming within images, custom borders, titles, HDCP support and programmable display layouts.

Meeting today’s demand for the highest resolution possible, the SuperView 4K multiviewer delivers unequalled reliability, 24/7 robustness, and the ability to display your high-quality content with 8 million pixels of performance.

Specifications
Model: SuperView 4K multiviewer

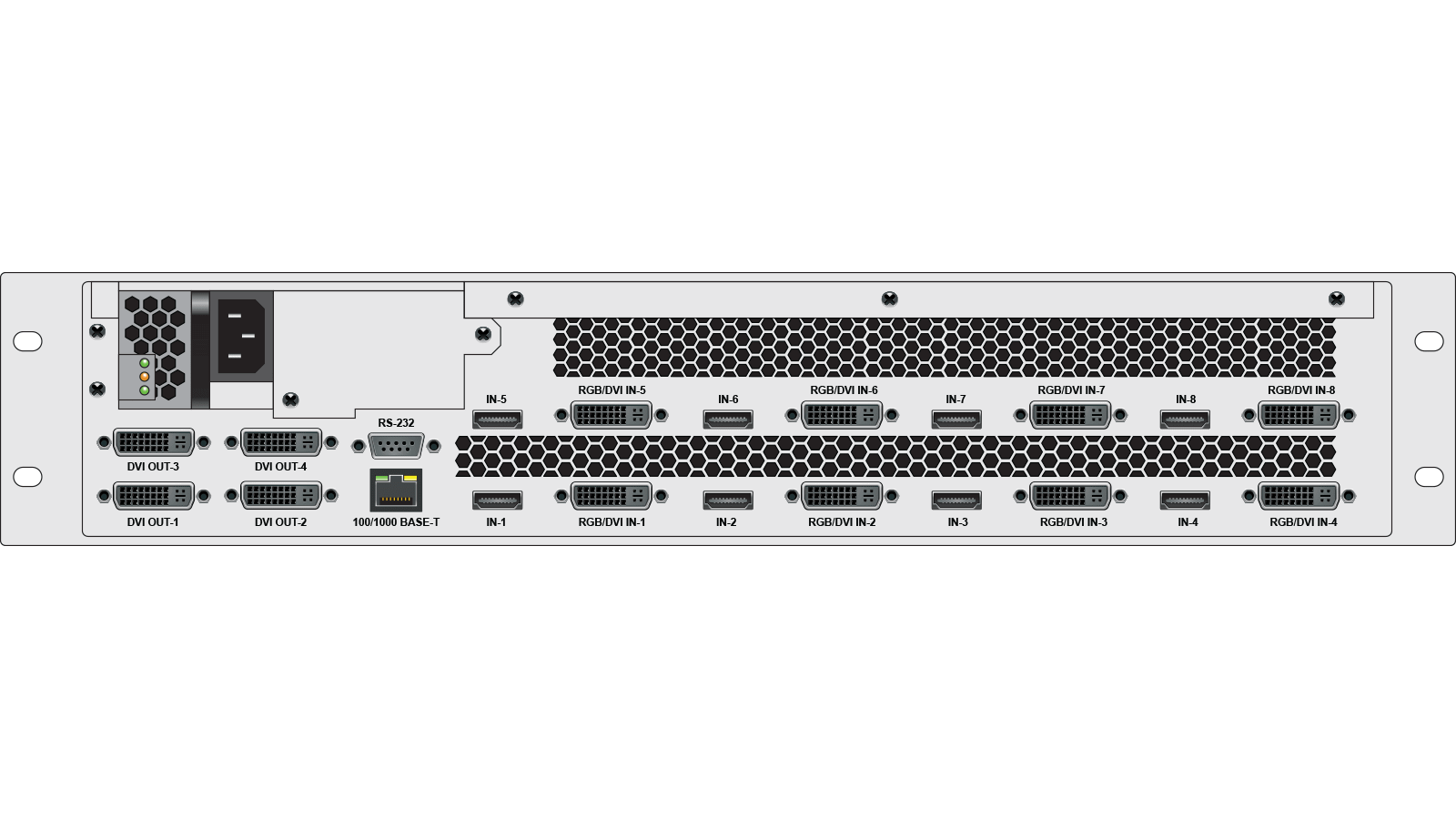

Inputs
RGB/HD
8x (on DVI-I)
DVI
8x (on DVI-I)
HDMI®
8x (1.3a)
Resolution
640x480 to 1920x1200, 2048x1152, 720p, 1080i, 1080p.
SuperView 4K accommodates 4K signals (3840x2160p, 4096x2160p) via 4x single-link DVI channels
Color depth
24-bit
Horizontal scan rate
31 kHz to 125 kHz
Frame rate
Up to 200 Hz
Clock rate
Up to 165 MHz
Video levels
1.0 V p-p for G and Y composite 0.7 V p-p for R, B and PbPr
Sync type
RGsB, RGBS, RGBHV, YPbPr, (tri-level or bi-level sync on Y)
Cable equalization
Automatic or manual, up to 164 ft (50 m) DVI
HDCP
Single-link output mode: Compliant
Dual-link output mode: Non-compliant
Outputs
DVI single-link
4x (on DVI-I, digital only)
Resolution
2k mode: single-link DVI, up to 1920x1200, HD to 2048x1080p 4k mode (SL): 4x single-link DVI, 3840x2160p, 4096x2160p 4k mode (DL): 2x dual-link DVI, up to 2560x1600p and 1920x2160 (per output)
Horizontal scan rate
12 kHz to 125 kHz
Frame rate
50 to 200 Hz
Clock rate
25 to 165 MHz (single-link) 165 to 330 MHz (dual-link)
Pin Power
500 mA @ 5 VDC per output
Physical
Dimensions (H x W x D)
3.5 x 17 x 18 inches (8.9 x 43.2 x 45.7 cm) (2RU)
Weight
25 lbs / 11.4 kg
Control
Ethernet 10/100Base-T, Telnet
RS-232, Web interface
Power
100 - 240 VAC auto ranging
50/60 Hz, 125 W maximum
Environmental
Temperature Operating, nominal
41 to 104 °F (5 to 40 °C)
Temperature Non-Operating
-4 to 158 °F (-20 to 70 °C)
Humidity Operating
5 to 90%; noncondensing
Altitude
Up to 13,123 ft (4000 m) at 104 °F (40 °C) or below

Patents: US 8,120,581, US 8,184,065 and other patents pending
