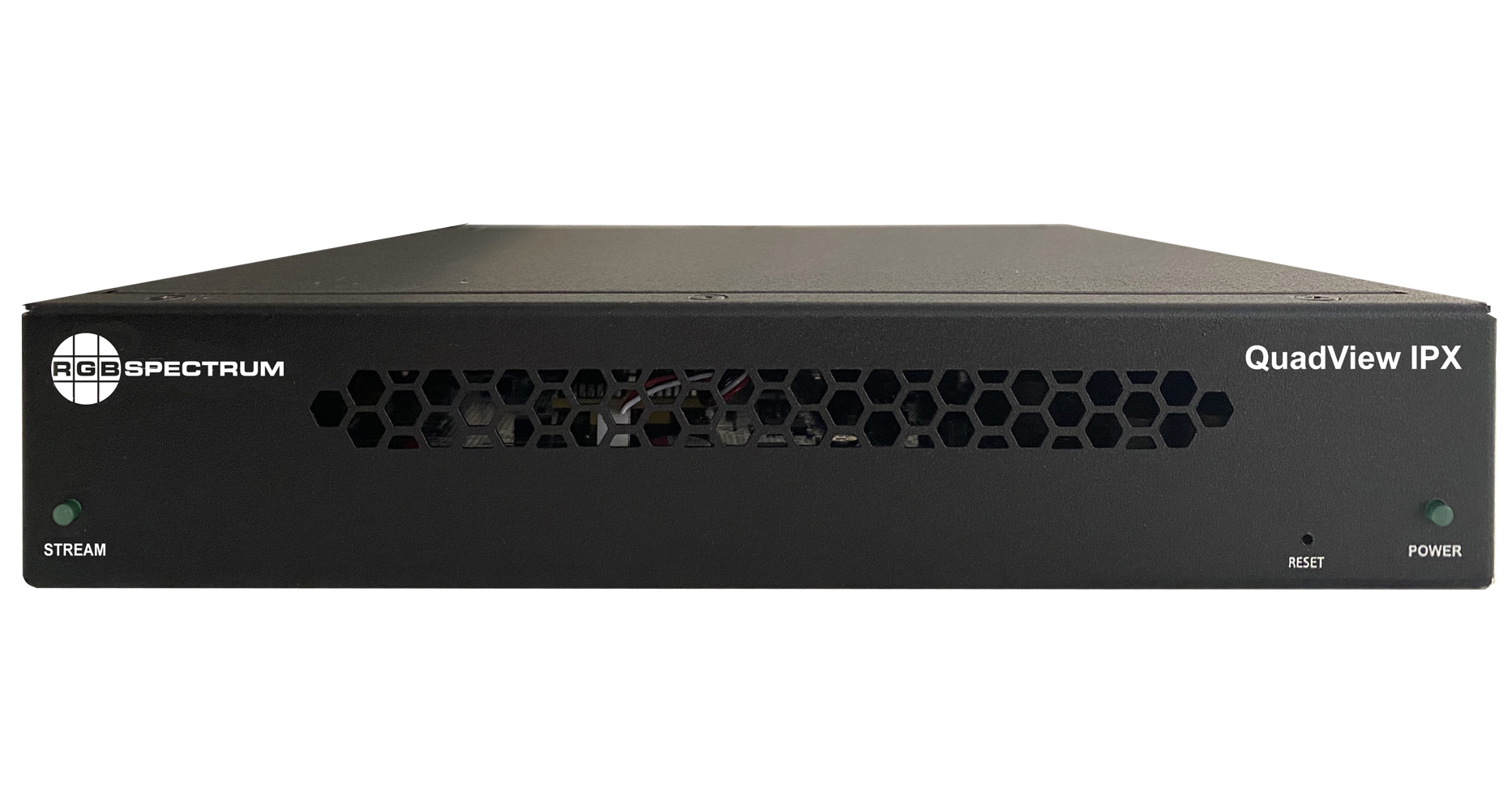

QuadView IPX Multiviewer

Multi-Image Display Processor with HDMI & IP inputs

RGB Spectrum’s QuadView® IPX is a high-performance 4K multiviewer for displaying up to four signals in customizable layouts on a single screen. The QuadView delivers superior image quality at up to 4K 60Hz resolution with display windows any size, anywhere on screen.

4K 60Hz input and output resolutions
Images displayed any size, anywhere
Customizable display layouts and presets
Multiple inputs: 4x HDMI and 4x IP
HDMI 2.0 I/O
H.264 and H.265 decoding
Embedded architecture for security
Analog and embedded digital audio
Control via built-in GUI, Telnet and RS-232
TAA compliant
VIEW ALL:
Overview

RGB Spectrum’s QuadView IPX is a high-performance 4K multiviewer for displaying up to four signals in customizable layouts on a single screen. The QuadView delivers superior image quality at up to 4K 60Hz resolution with display windows any size, anywhere on screen.

An embedded architecture offers operational security without PC vulnerabilities to prevent external tampering and hacking.

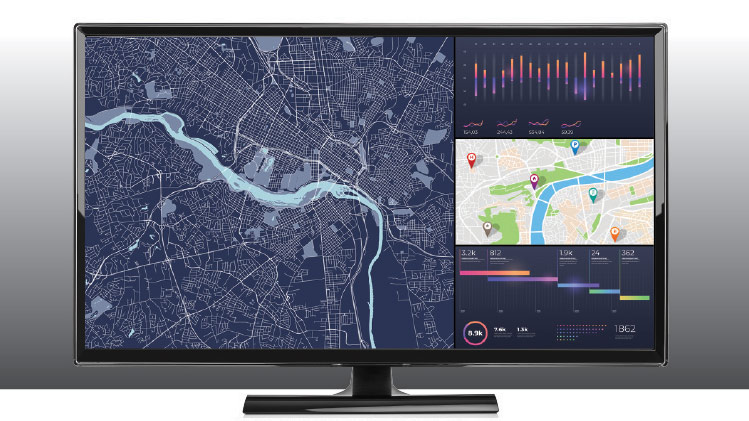

The QuadView IPX is the next generation in multiviewer performance. Both HDMI and IP inputs can be selected for display. IP streams provide access to remote signal sources. Users can mix and match input resolutions, scale any video input up to 4K resolution and route any input to any window. Simply select a customizable layout, select inputs, and route to the desired display windows.

The QuadView IPX supports both analog and digital audio, including audio embedded in HDMI and IP sources. It allows selecting audio, even from a source not currently displayed.

Multiple control methods include a built-in web interface and third-party control via Ethernet and RS-232.

The QuadView IPX multiviewer is an ideal solution for mission-critical 24/7 operations, where reliability, security, high quality, and ruggedness count. Made in the U.S.A., it is fully TAA compliant. The QuadView IPX is another offering in our commitment to providing AV solutions for decision support.

Better Decisions. Faster.

Specifications
Model: QuadView IPX Multiviewer

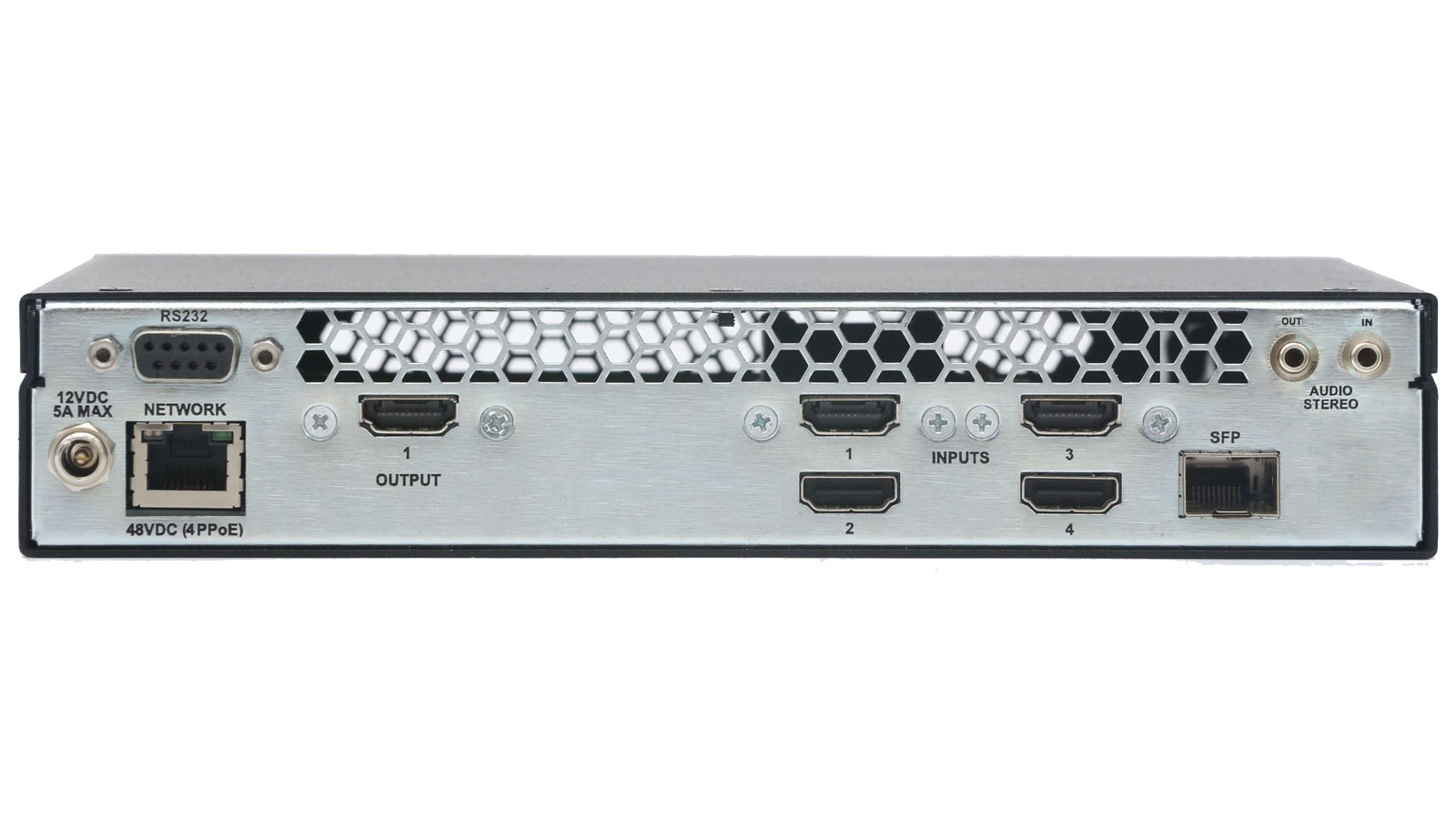

Inputs
Video
4x HDMI (2.0) & up to 4x IP (1x 4K/60p; 2x 4K/30p; 4x 1080p; 4x 720p)
Resolution (maximum)
3840 x 2160 @ 60Hz
Audio
Digital Embedded: 4x HDMI and up to 4x IP streams
Analog: 1x 3.5mm mini-pin, stereo
Outputs
Video
1x HDMI (2.0)
Supported Resolutions
3840x2160 @ 60Hz, 3840x2160 @ 30Hz, 3840x2160 @ 24Hz, 1920x1200 @ 60Hz,
1920x1080 @ 60Hz, 1920x1080 @ 50Hz, 1600x1200 @ 60Hz, 1680x1050 @ 60Hz,
1600x900 @ 60Hz, 1400x1050 @ 60Hz, 1440x900 @ 60Hz, 1366x768 @ 60Hz,
1360x768 @ 60Hz, 1280x1024 @ 60Hz, 1280x720 @ 60Hz, 1280x800 @ 60Hz,
1280x768 @ 60Hz, 1280x720 @ 50Hz, 1024x768 @ 60Hz, 800x600 @ 60Hz
Audio
Digital Embedded: 1x HDMI
Analog: 1x 3.5mm mini-pin, stereo
Control
Built-in, Telnet, RS-232
Physical
Dimensions (H x W x D)
1.75 x 8 .625 x 8.0 inches (1RU) (43.2 x 219 x 203 mm)
Weight
3.1 lbs (1.4 kg)
Power Supply
100 - 240 VAC / 50/60Hz
Power Consumption (max.)
15 W (max.)
Operating Temperature
+32° to +104° F (0° to +40° C)
Storage Temperature
-4° to +140° F (-20° to +60° C)
Humidity (Storage/Operating)
20% to 90% (non-condensing)
