QuadView UHDx Multiviewer

4K 60Hz Multi-Image Processor

RGB Spectrum expands its industry-leading multiviewer line with the new QuadView®UHDx for displaying up to 4 sources on a single screen. The feature-rich QuadView UHDx delivers superior image quality at up to 4K 60Hz resolution with customizable display windows. The unit offers internal switching of up to 6 input signals, 4 of which can be displayed simultaneously.

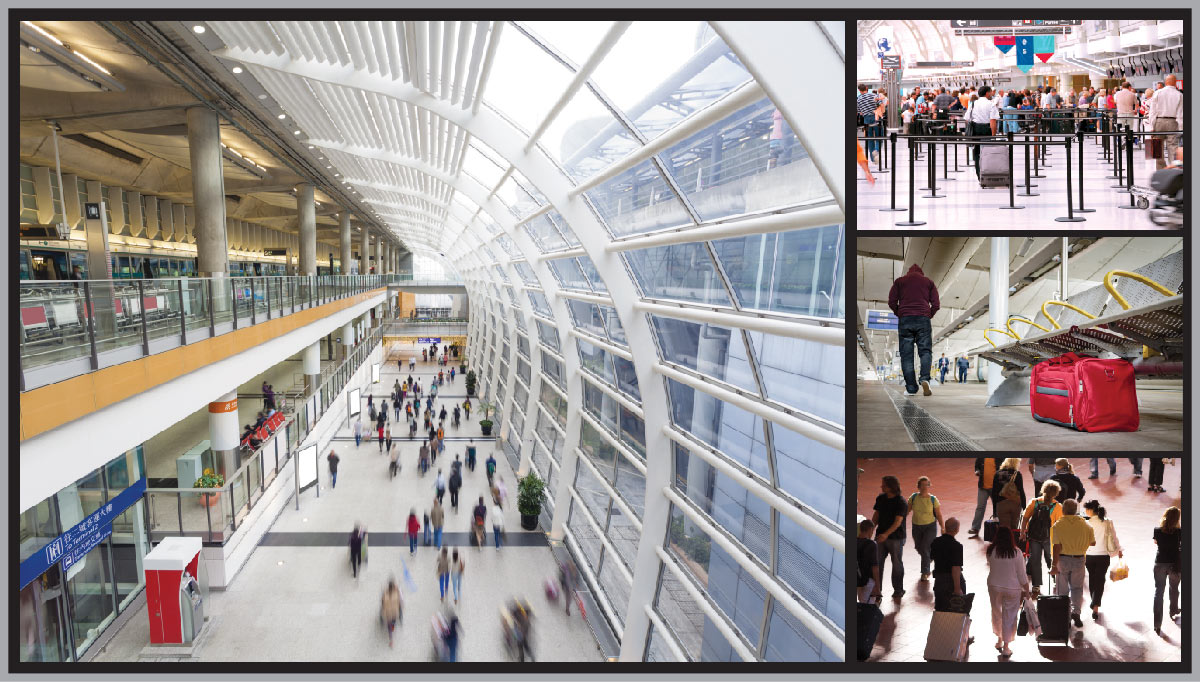

Displays 4 sources on a single screen
Customizable display layouts
Switched inputs: 4x HDMI® and 2x DisplayPort
Auto source detect and display layout capability
HDMI® 2.0 output
HDCP 2.2 & 1.4 support
Analog & digital audio switching, embedded audio with de-embedding
Borders and labels
Source cropping
VIEW ALL: Multiviewers
Overview

RGB Spectrum expands its industry-leading multiviewer line with the new QuadView®UHDx for displaying up to four sources on a single screen. The feature-rich QuadView UHDx delivers superior image quality at up to 4K 60Hz resolution with customizable display windows. The unit offers internal switching of up to six input signals, four of which can be displayed simultaneously.

Connect the QuadView UHDx to any monitor or projector from XGA up to 4K/UHD resolution, and you’re ready for the next generation in multiviewer performance. You can mix and match input resolutions, scale any video input up to 4K UHD and route any input to any window. Both HD and 4K UHD inputs can be displayed without downscaling. The QuadView UHDx analog and digital audio lets you select and route from any source, with audio de-embedding.

QuadView UHDx's auto source detect and display layout capability is ideal for conference rooms, boardrooms, huddle rooms—anywhere devices come and go. Sources connect directly to the unit via HDMI® and DisplayPort. The QuadView UHDx detects the number of connected inputs and adjusts the display layout to show all sources — from 1 to 4 — on a single screen.

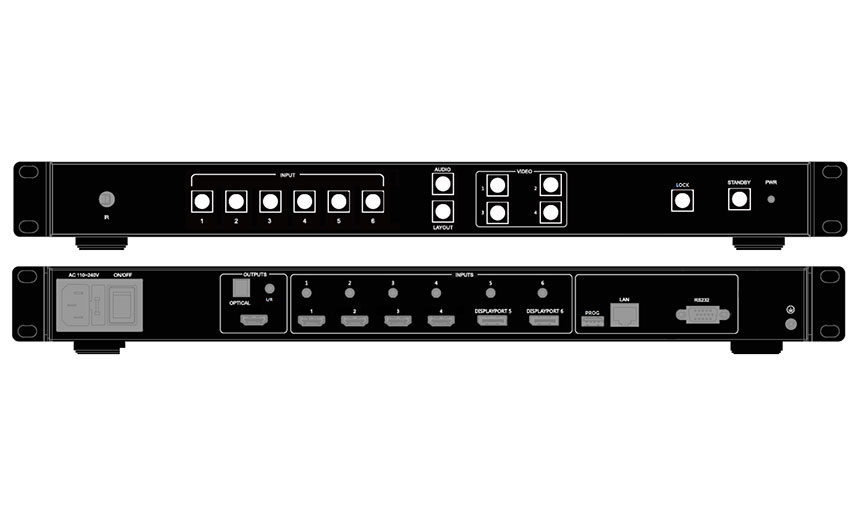

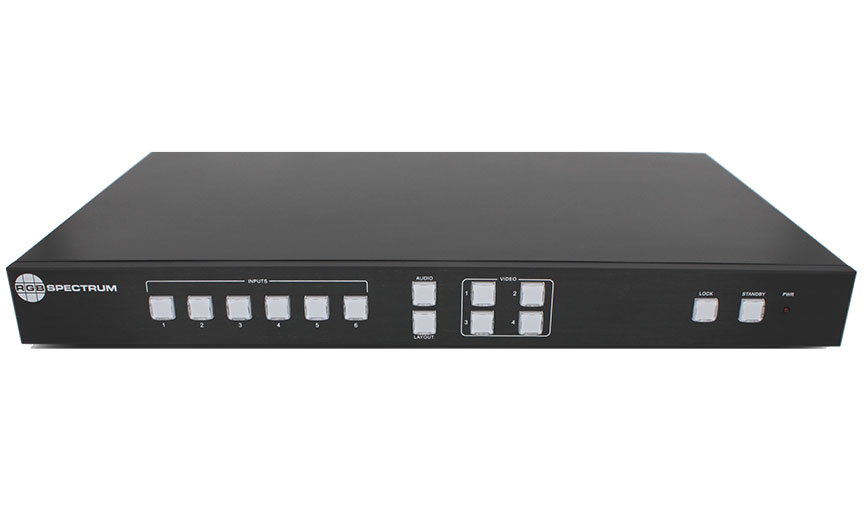

Control options include the front panel, a built-in web interface and third-party control via Telnet and RS-232. The front panel is simplicity itself, enabling audio, video input and layout selection. Simply select a customizable layout, select inputs, and route inputs to the desired display windows.

The versatile QuadView UHDx allows users to fully capitalize on the benefits of 4K UHD resolution displays. It is an ideal solution for boardrooms, distance learning, entertainment and sports venues, lobbies, control rooms, and command centers.

Specifications
Model: QuadView UHDx Multiviewer
Inputs
Video
6 total: 4x HDMI® (2.0), 2x Display Port (1.2)
Resolution (maximum)
3840x2160 @60Hz
HDCP
2.2 and 1.4 compliant
Audio
3.5mm mini-pin, stereo
Outputs
Video
1x HDMI® (2.0)
Supported Resolutions
3840x2160 @60Hz, 3840x2160 @30Hz, 3840x2160 @24Hz, 1920x1200 @60Hz, 1920x1080 @60Hz, 1920x1080 @50Hz, 1600x1200 @60Hz, 1680x1050 @60Hz
Audio
1x HDMI® (embedded), 1x optical, 1x analog (3.5mm mini-pin, stereo)
Control
Built-in Setup/Configuration/Operation GUI, Front Panel, Telnet, RS-232
Other Features
BYOD auto layout
Borders & labels
Source cropping
Physical
Dimensions (H x W x D)
1.7 x 17.3 x 11 inches (1RU) (43.5 x 440 x 280 mm)
Weight
7.3 lbs / 3.3 kg
Power Supply
100 - 240 VAC / 50/60Hz
Power Consumption (max.)
15W (max.)
Operating Temperature
32° to 104° F (0° to 40° C)
Storage Temperature
-4° to 140° F (-20° to 60° C)
Humidity (Storage/Operating)
20% to 90% (non-condensing)
