Zio Decoders
HD & 4K Video-over-IP Decoding
Zio® endpoints attach to a 1Gig Ethernet switch, with encoders accepting computer and video sources at resolutions up to 4K Ultra HD and decoders for feeding displays. Zio AV-over-IP technology supports video and audio distribution over an IP network, replacing traditional dedicated switchers.
Dynamic H.264 and H.265 decoding
Up to 4K60 output
HDMI® & DisplayPort outputs (one at a time)
Management & control across LANs & WANs
TAA- and BAA-Compliant
Overview
This product can be custom-built for any MIL SPEC connectivity, environmental and shock/vibration requirements, including MIL STD 901, 810, 461, 167 and DO160D.
The Zio system offers seamless switching over the IP network infrastructure.
The Zio product line includes encoder and decoder models that support 2K or 4K video over IP. Zio endpoints encode and decode video, audio, and control signals using industry standard compression.

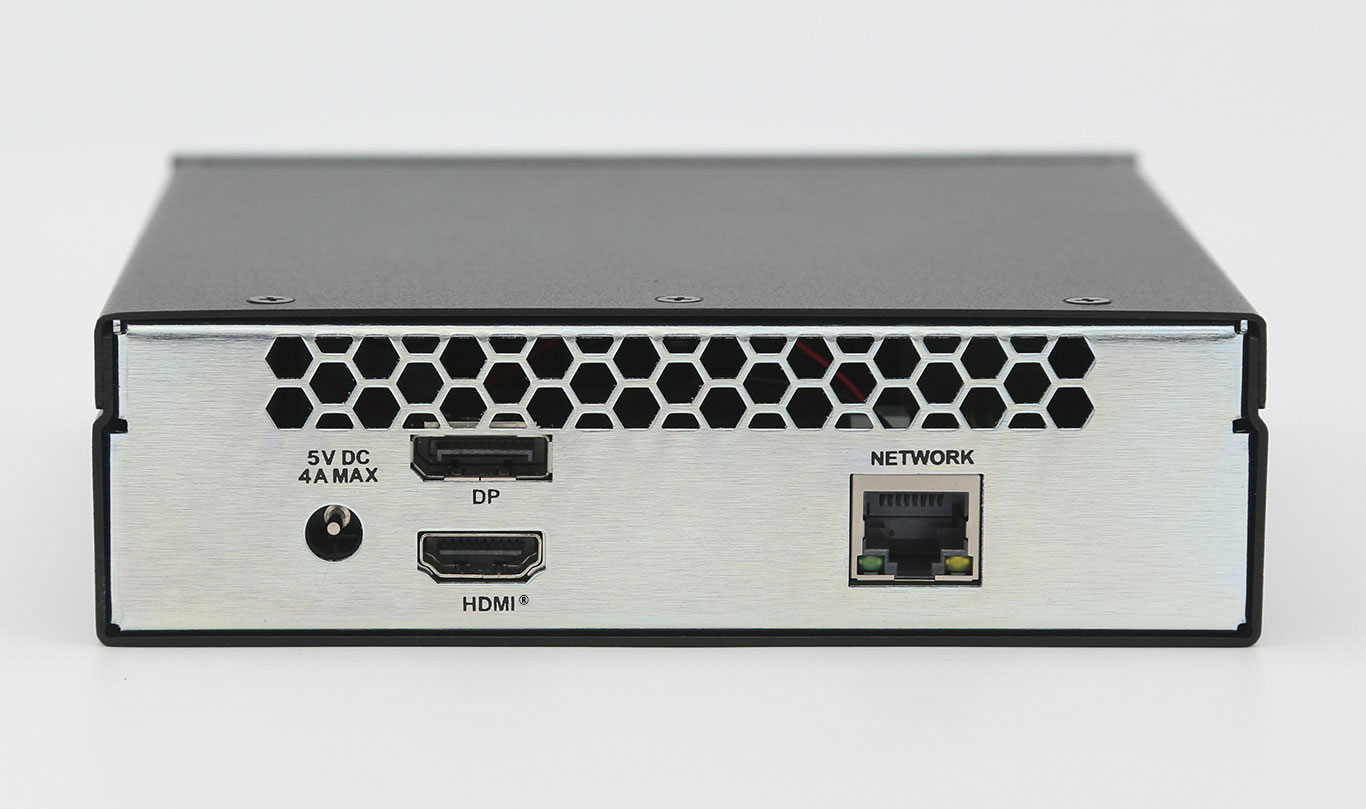

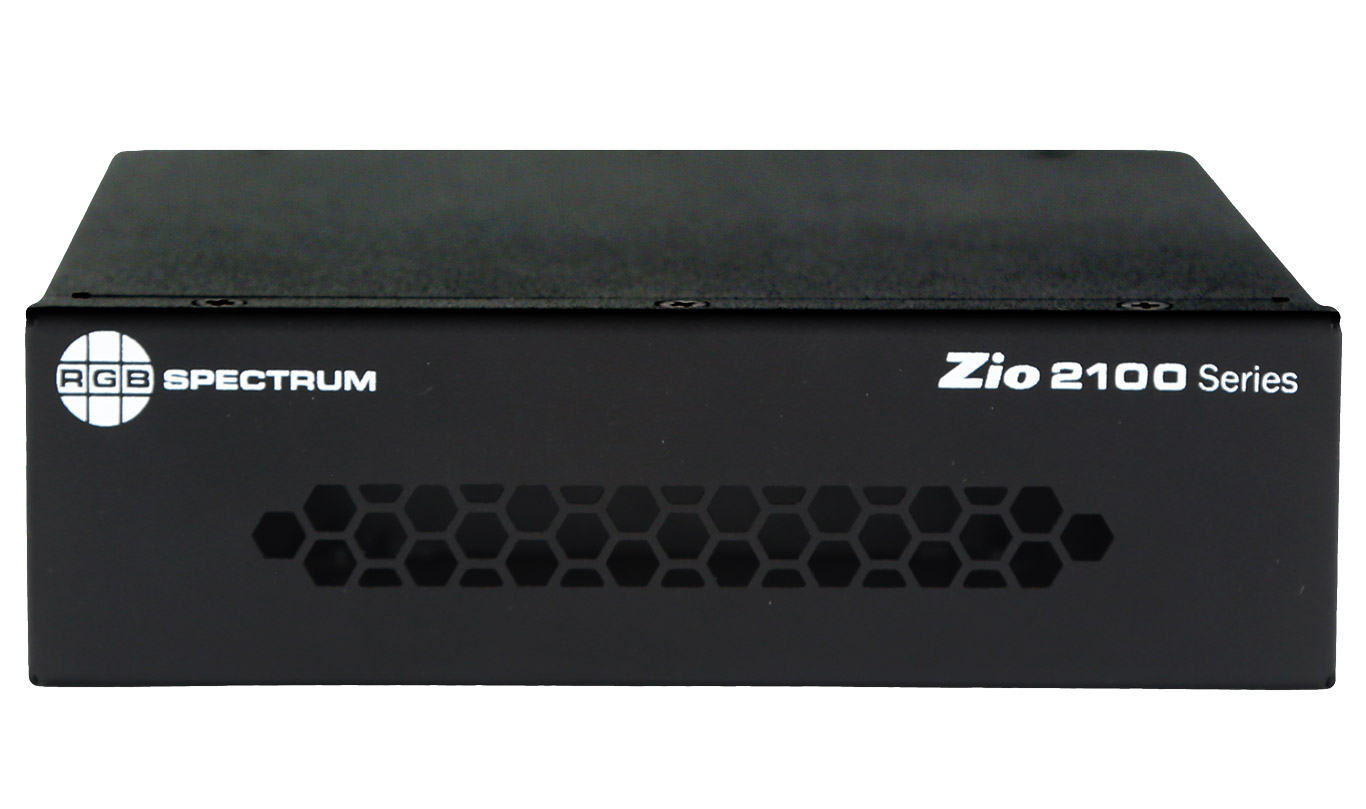

The Zio D2100 Series are flexible decoders designed to work with the S2000 Series encoders and H.264/H.265 compliant devices. The D2112 model IP video decoder displays streams at up to 2K resolution, and the D2114 model IP video decoder displays streams up to 4K resolution.
A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.
Specifications
Model: D2100 Series Decoder
Inputs
Type
IP Video Stream
Connector
1x RJ-45 (GigE)
Resolution
D2112: up to 1920 x 1080 @ 60 Hz
D2114: up to 4096 x 2160 @ 60 Hz
D2114: up to 4096 x 2160 @ 60 Hz
Outputs
Connectors1
1x HDMI® 2.0
1x DisplayPort 1.4
1x DisplayPort 1.4
Resolution
Up to 4096 x 2160 @ 60 Hz
Audio Support
Digital (embedded HDMI®) or analog
Simultaneous Streams
1
Streaming
Compression Format
H.264, H.265
Streaming Protocol
RTSP, Multicast
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000BaseT
Physical
Dimensions (H x W x D)
1.83 x 5.61 x 6.27 inches
(46.60 x 142.37 x 159.20 mm)
(46.60 x 142.37 x 159.20 mm)
Weight
1.75 lbs / 0.8 kg
Power
5 VDC, 20 W max
1: Only one output connector can be used at a time
