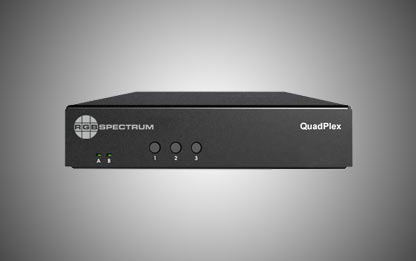

QuadPlex Multi-Display Processor

Scalable, Flexible, Easy-to-Deploy

The QuadPlex multi-display processor maximizes video wall scalability and flexibility. This system-independent appliance is designed to power display configurations of any possible dimension, from any source—reliably delivering flawless image quality across expansive video wall displays.

Scalable, multi-unit configurations
Independent display orientation
Up to 4Kp60 input, or 8K in one dimension
HDCP content protection
Numerous display layouts, including artistic configurations
VIEW ALL:
Overview

RGB Spectrum's QuadPlex multi-display processor is a breakthrough in video wall design flexibility and affordability. The versatile QuadPlex processor can drive up to four displays from a single video source in a wide variety of configurations, from 2x2 to 1x4 to artistic layouts.

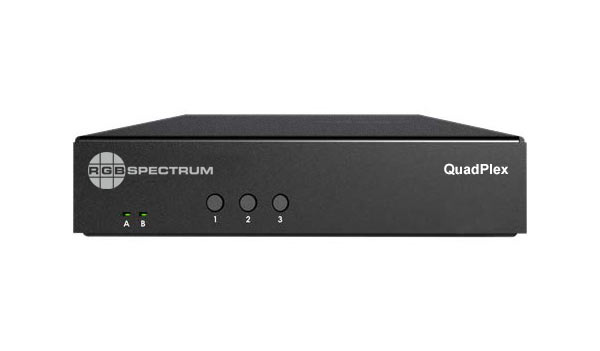

An intuitive software interface provides auto-discovery and configuration of each QuadPlex device. Display layouts can be selected using the front panel buttons on the device or via the web network interface.

Combine QuadPlex with RGB Spectrum's video wall processors or multiviewers to create video walls of any size and shape, or simply use with a media player for small installations. QuadPlex provides complete layout flexibility, with each display having independent resolution, scaling, cropping and rotation.

The QuadPlex processor's power and flexibility make it the ideal solution for entertainment and sports venues, boardrooms, museums, corporate lobbies, video teleconferencing, digital signage, artistic walls and educational environments.

Specifications
QuadPlex
Inputs
Video
1x HDMI (2.0) or 1x DisplayPort (1.2)
Resolution (max.)
3840x2160 @ 60Hz, 3840x2160 @ 30Hz,
7680x1080 @ 60Hz, 7680x1080 @ 30Hz,
1920x4320 @ 60Hz, 1920x4320 @ 30Hz
HDCP
Yes
Audio
HDMI or DisplayPort (embedded)

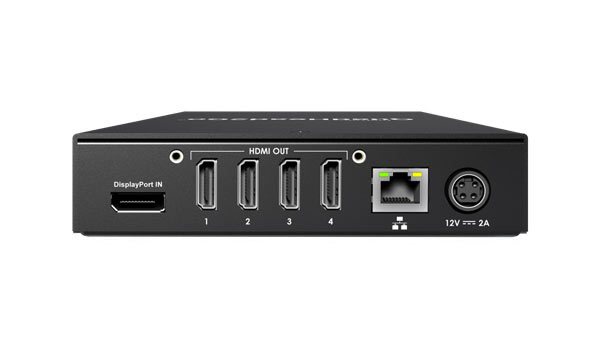

Outputs
Video
4x HDMI
Resolution (max.)
1920x1080 @ 60Hz, 1920x1080 @ 30Hz, 1920x1200 @ 60Hz, 1920x1200 @ 30Hz
HDCP
Yes
Audio
HDMI (embedded)
Configurations
Layouts
2x2, 4x1, 3x1, 2x1, 1x2, 1x3, 1x4, artistic layouts (portrait and landscape orientation)
Mirrored Output
Yes, with scaling
Other Features
Bezel management, scaling, cropping, rotation
Control
Application
Setup application, Front Panel, HTTP/HTTPS
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Dimensions (H x W x D)
1.25 x 5.5 x 7.13 in (318 x 1397 x 1811 mm)
Weight
1.1 lbs (0.49 kg)
Power Supply
100 x 240VAC / 50-60 Hz
Power Consumption (max.)
15W (max.)
Operating Temperature
32° to 113° F (0° to 45° C)
Storage Temperature
-40° to 158° F (-40° to 70° C)
Humidity (storage/operating)
20% to 80% / 5% to 95% (non-condensing)
