ZIO AV/IP + PANASONIC SMART DISPLAY

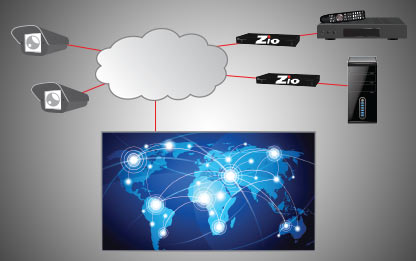

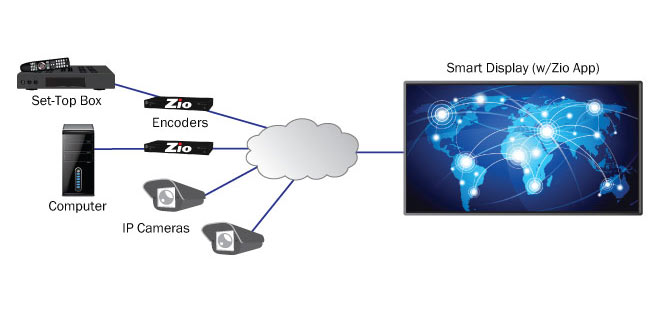

The Zio® Networked AV system allows you to decode a stream directly on a Panasonic AF1 Series display with the Zio app. System configuration is streamlined by eliminating the need for a separate decoder connected to the display.

RGB Spectrum’s Zio AV over IP technology is controlled through a simple, intuitive user interface that offers drag-and-drop functionality for routing streams to the display, allowing even non-technical people to easily operate the system without the need for a third-party controller.

Automatic discovery of Zio encoders makes it easy to add devices to the network. Live thumbnails of each Zio encoded stream assist the user in routing streams to displays.

The Zio Decoder App can be easily accessed via the Panasonic App Server or from the RGB Spectrum website.

View All:
Specifications
Zio Decoder on Panasonic AF1 Display
Inputs
Type
IP Video Stream
Connector
1x RJ-45 (GigE)
Resolution
Up to 1920 x 1080 @ 60 Hz
Audio Support
Digital (embedded HDMI)
Outputs
Resolution
Up to 1920 x 1080 @ 60 Hz
For full list of supported resolutions, refer to Panasonic AF1 specifications.
Simultaneous Streams
1
Audio Support
Digital (embedded HDMI)
Streaming
Compression Format
H.264
Streaming Protocol
RTSP, Multicast
Control
Application
Browser-based HTML5: Windows, macOS, iOS and Android
Network
Ethernet TCP/IP 10/100/1000Base-T
