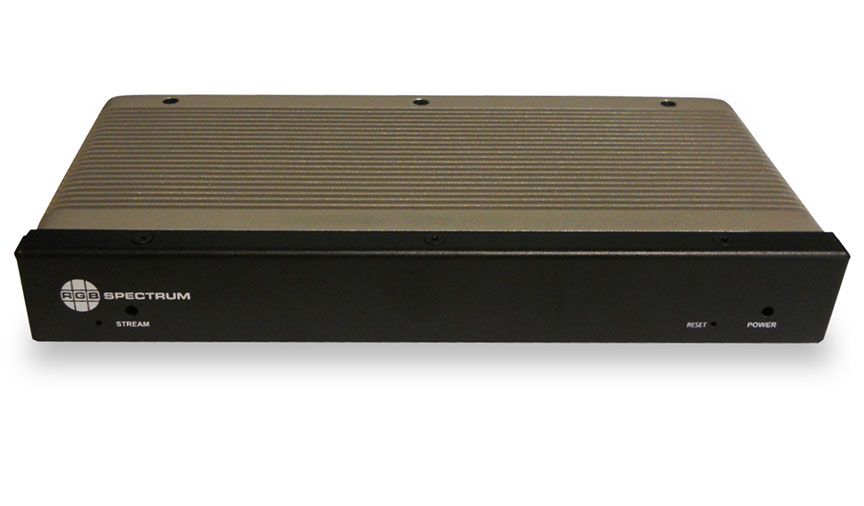

Zio RT Product Family

Rugged Networked Real-time Video Distribution

Zio® endpoints attach to a 1Gig Ethernet switch, with encoders accepting computer and video sources at resolutions up to 4K Ultra HD and decoders for feeding displays. Our new Zio AV over IP technology supports video and audio distribution over an IP network, replacing traditional dedicated switchers.

Accessories: PDU 400-12 Power Distribution Unit, Zio RAK mounting shelf

Convection-cooled enclosure
Dynamic H.264 encoding / H.264 and H.265 decoding
Up to 4K UHD in / out
Management & control across LANs & WANs
Mix live video + web-based content
Scripting interface for external system control
HDCP compliant
Power over Ethernet (PoE)
Overview

This product can be custom-built for any MIL SPEC connectivity, environmental and shock/vibration requirements, including MIL STD 901, 810, 461, 167 and DO160D.

The Zio system offers seamless switching over the IP network infrastructure. Both dedicated and shared networks are supported.

The Zio product line includes encoder and decoder models that support 2K or 4K video over IP. Zio endpoints encode and decode video, audio, and control signals using industry standard compression.

The S2002 RT model IP video encoder accepts signals up to 2K resolution over a locking HDMI connector with loop through capability. The S2004 RT model accepts signals up to 4K resolution.

The Zio D2000 RT-Series are flexible decoders designed to work with the S2000 RT-Series encoders and H.264/H.265 compliant devices. The D2002 RT model IP video decoder displays streams at up to 2K resolution. The D2004 RT model decodes and displays streams at up to 4K resolution. Power over Ethernet (PoE) is provided on both models to simplify installation.

A room, a building, a campus, a city, or the world - LANs, WANs, even satellite links - a Zio solution is up to the challenge.

Specifications
Model: S2000 RT-Series Encoder
Inputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
S2002 RT: Up to 1920 x 1080 @ 60 Hz, 1920 x 1200 @60 Hz
S2004 RT: Up to 1920 x 1080 @ 60 Hz, 1920 x 1200 @60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Simultaneous Streams
Multiple (depending on resolution)
Audio
Digital (embedded video stream) or Analog (mono)
Outputs
Type
IP Video Stream, HDMI passthrough
Connector
1x RJ-45, 1x HDMI 1.4b
Resolution
Up to 1920 x 1080 @ 60 Hz, 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio
Digital (embedded video stream) or Analog (mono)
Control
Network
Ethernet TCP/IP 10/100/1000Base-T
User Interface
Browser-based HTML5: Windows, OSX, iOS and Android
Physical
Power
100-240 VAC; 50/60 Hz, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Dimensions (H x W x D)
1.12 x 8.4 x 4 inches
(28.5 x 213.5 x 101.5 mm)
Operating Temperature
32 to 122 °F (0 to 50 °C)@ up to 1080p resolution,
32 to 104 °F (0 to 40 °C)@ up to 2160p resolution
Storage Temperature
-4 to 158 °F (-20 to 70 °C)
Options
Rackmount kit, bulkhead mounting kit
Model: D2000 RT-Series Decoder/Multiviewer
Inputs
Type
Video Stream
Connector
1x RJ-45 (GigE)
Resolution
D2002/D2022 RT: Up to 1920 x 1080 @ 60 Hz, 1920 x 1200 @60 Hz
D2004 RT: Up to 1920 x 1080 @ 60 Hz, 1920 x 1200 @60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Simultaneous Streams
D2002 RT: 1
D2022 RT: 16x SD, 4x FullHD resolution or equivalent
Audio
Digital (embedded video stream) or Analog (mono)
Outputs
Type
HDMI
Connector
1x HDMI 1.4b
Resolution
Up to 1920 x 1080 @ 60 Hz, 1920 x 1080 @ 60 Hz, 3840 x 2160 @ 30 Hz, 4096 x 2160 @ 24 Hz
Audio
Digital (embedded video stream) or Analog (mono)
Control
Network
Ethernet TCP/IP 10/100/1000Base-T
User Interface
Browser-based HTML5: Windows, OSX, iOS and Android
Physical
Power
100-240 VAC; 50/60 Hz, 10 W max
Power over Ethernet (PoE)
POE+ compliant
Dimensions (H x W x D)
1.12 x 8.4 x 4 inches
(28.5 x 213.5 x 101.5 mm)
Operating Temperature
D2002/2004 RT: 32 to 122 °F (0 to 50 °C)@ up to 1080p resolution,
32 to 104 °F (0 to 40 °C)@ up to 2160p resolution
D2022 RT: 32 to 104 °F (0 to 40 °C)@ all resolutions
Storage Temperature
-4 to 158 °F (-20 to 70 °C)
Options
Rackmount kit, bulkhead mounting kit
