XtendPoint KVM-over-IP

Multi-User Control of Remote Systems

XtendPoint^™ KVM-over-IP systems allow operators to control remote systems across a room or worldwide enterprise. Secure communication and control are provided for both point-to-point or networked operation over a standard Gigabit Ethernet. KlickSimple^™ navigation enables users to seamlessly control multiple computers simultaneously.

Single keyboard and mouse control across monitors

Video sharing across networks

Up to four computer and camera inputs per monitor

Redundancy and scalability across a room or a community

Operate multiple local or remote computer systems simultaneously

Multi-user access and control of remote systems

XtendPoint Brochure

43" Display Data Sheet

Overview

RGB Spectrum's XtendPoint KVM-over-IP systems deliver a scalable KVM matrix switching solution connecting multiple users with controllable systems, including multi-headed computers. Low latency responsiveness and 4Kp60 4:4:4 UHD visual performance are delivered in both point-to-point and LAN or private WAN configurations.

Networked XtendPoint KVM-over-IP systems support one-to-one, one-to-many, many-to-one, or many-to-many configurations. It allows operators to view multiple desktops on a multi-display or multiviewer operator station and take control of a system by simply moving the mouse to the target desktop using KlickSimple™ cursor navigation.

The XtendPoint Central Manager provides simple, secure control for administrators to easily discover, configure, manage, and monitor all transmitter and receiver endpoints. Users can view connections and switch control of computers using an advanced on-screen display (OSD) that features thumbnail previews.

The versatile XtendPoint KVM-over-IP systems are an ideal solution for control rooms, dispatch centers, government, healthcare, education, airports and more.

Specifications

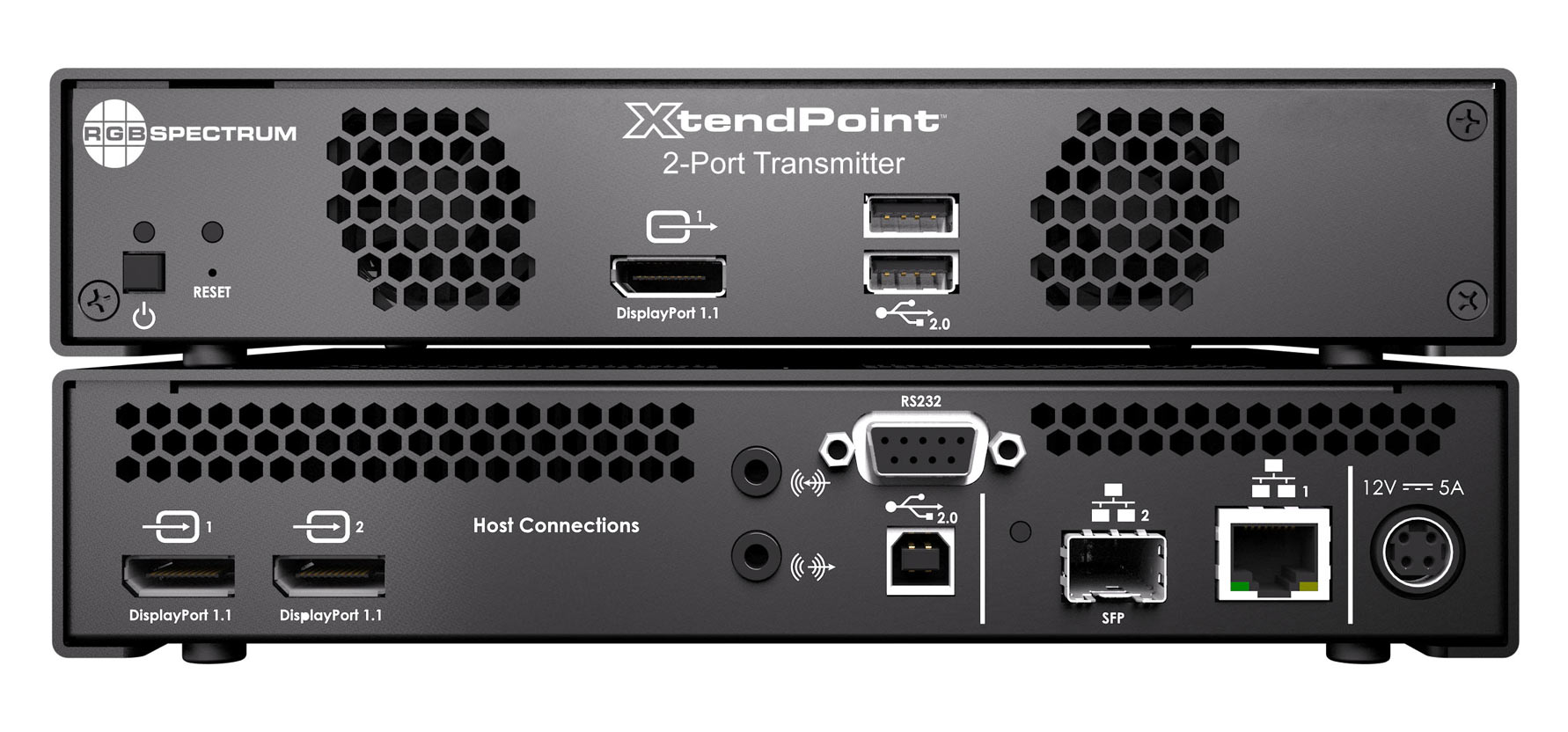

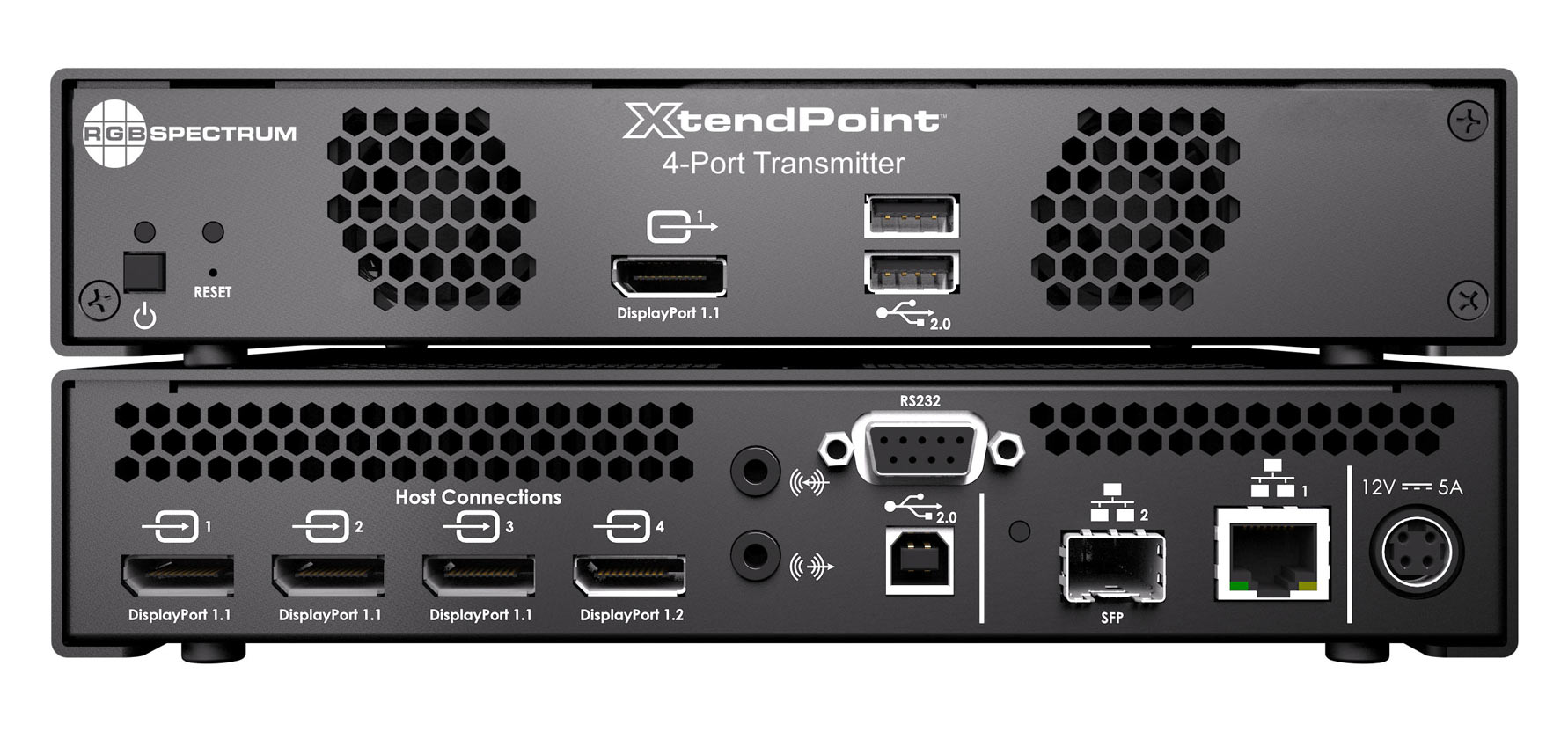

Model: XP 102 / 104 Transmitter

Connections to Host System

Video

XP 104
1x DisplayPort 1.2
3x DisplayPort 1.1

XP 102
2x DisplayPort 1.1

USB

1x USB 2.0 Type B

Serial

RS-232 9-pin D-type

Audio

DisplayPort (embedded)
Line in 3.5 mm, line out 3.5 mm

Network

1x RJ-45 (GigE)
1x SFP cage (supports SFP multi-mode or single-mode transceiver)

Outputs to Local Devices (for future use)

Video

1x DisplayPort 1.1

USB

2x USB 2.0 Type A (future use)

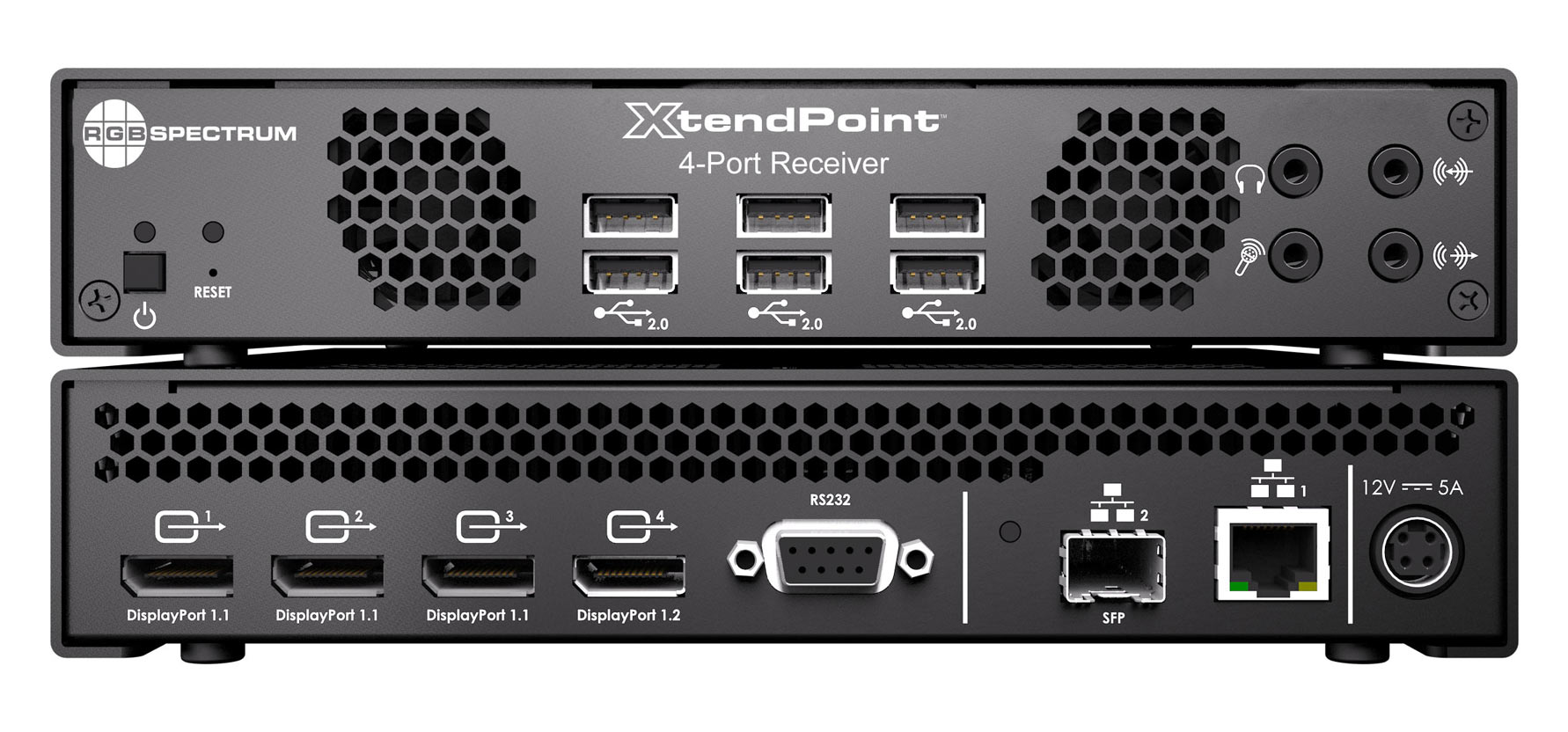

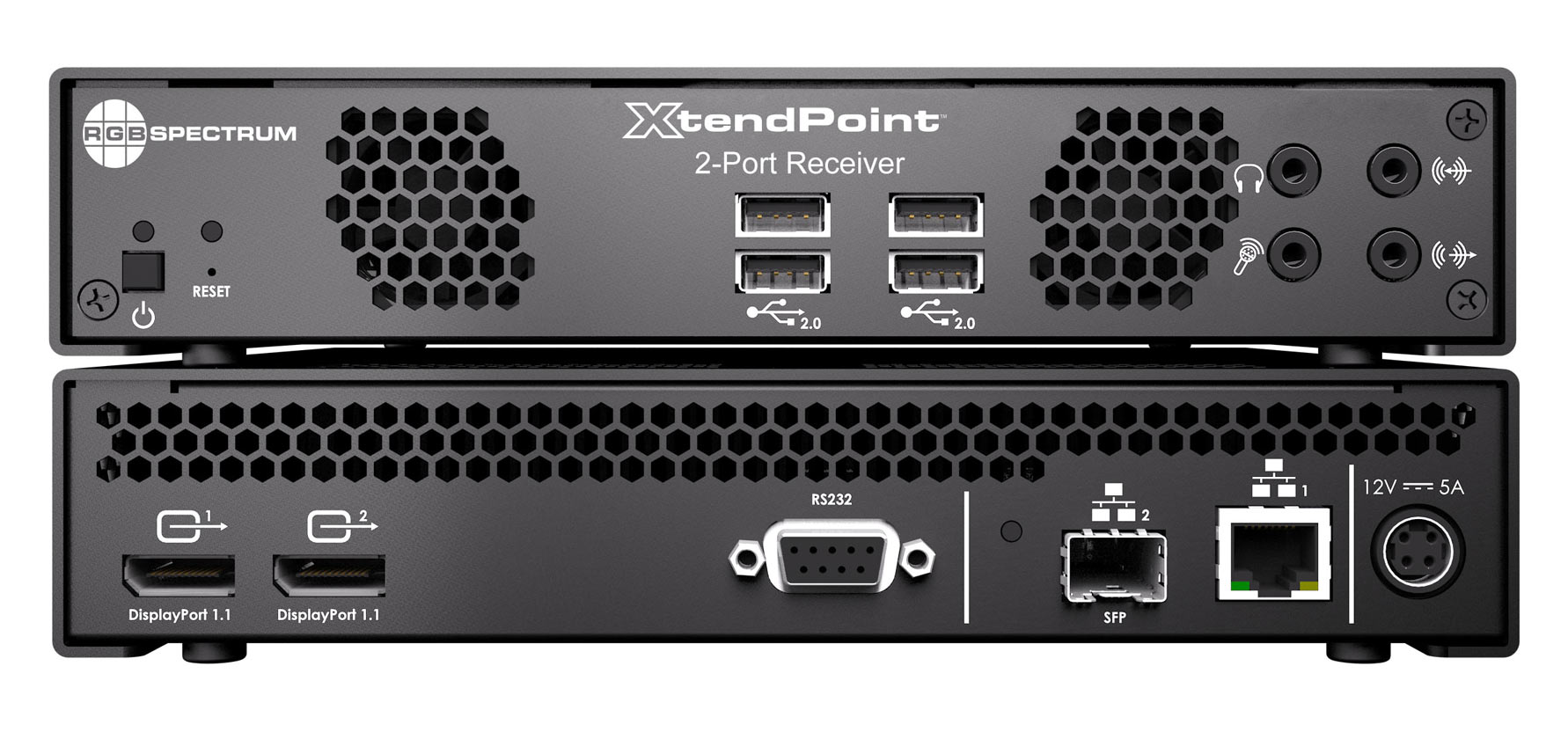

Model: XP 102 / 104 Receiver

Connections to Local Devices

Video

XP 104
1x DisplayPort 1.2
3x DisplayPort 1.1

XP 102
2x DisplayPort 1.1

USB

XP 104
6x USB 2.0 Type A

XP 102
4x USB 2.0 Type A

Serial

RS-232 9-pin D-type

Audio

DisplayPort (embedded)
Line in 3.5 mm, line out 3.5 mm
Mic in 3.5 mm, headphone out 3.5 mm

Network

1x RJ-45 (GigE)
1x SFP cage (supports SFP multi-mode or single-mode transceiver)

All Models

Input/Output

Maximum Resolutions

XP 104 TX/RX
1x 3840x2160 @60Hz, 2x 2560x1600 @60Hz, 2x 3840x2160 @30Hz, 3x 1920x1200 @60Hz, 4x 1920x1080 @60Hz, 4x 1920x1200 @50Hz

XP 102 TX/RX
1x 2560x1600 @60Hz, 2x 1920x1200 @60Hz

Color space

YUV 4:4:4, RGB 8:8:8

Physical

Dimensions (H x W x D)

1.676 x 7.45 x 8.526 inches
(42.6 x 189 x 216.6 mm), 1RU

Power Supply

100 x 240VAC / 50-60 Hz

Power Requirements

+12V DC, maximum 5A

Power Consumption (max.)

XP 104: 44W max, XP 102: 24.5W max

Operating Temperature
