Zio W4000 - A Feature-Rich Video Wall Processor
Standalone and AV-over-IP Wall Processor
The Zio® W4000 expands RGB Spectrum's AV-over-IP offerings with a full-function video wall processor that can work in a standalone environment or as part of the Zio AV-over-IP platform. The feature-rich Zio W4000 supports 4K 60Hz resolution end-to-end with a mix of local baseband and IP video, as well as web-based inputs.
Inputs and outputs to 4Kp60
Operates standalone or as part of an AV-over-IP system
Drag and drop GUI with live thumbnail previews
Baseband + IP video + VNC/RDP clients + local images/videos
Mix live video & web-based content
VIEW ALL: AV-over-IP, Video Wall Processors
What’s New with the Zio GUI?
The web-native Zio GUI provides centralized control of the entire Zio ecosystem in one easy interface. Built for operational efficiency, it lets users configure, manage, and control all Zio devices—no advanced programming, specialized hardware, or software installation required.
Learn MoreOverview
The Zio platform delivers reliable AV-over-IP distribution and management across WANs as well as LANs using standard 1 Gigabit Ethernet. The Zio product family includes encoders, decoders, multiviewers, wall processors, and apps for smart displays and mobile devices.
Built-In Software for Ease of Management
A powerful drag and drop user-interface comes standard on each Zio W4000 device. The GUI provides quick and easy configuration of the video wall, eliminating the need for advanced device programming skills. Live thumbnail previews of baseband and Zio IP sources, and user-defined presets for layouts and routing, are among the many easy-to-use features.
What’s New with Zio W4000 Plus
We’ve introduced a new options package for our Zio W4000 series. With the Zio W4000 Plus software licensing option, you can get all our standard features plus the following:
Display Applications over Industry-Standard VNC or RDP
View complex content running on Windows, Linux, or macOS computers on your video wall, including SCADA control systems, video management software, access control applications, demanding websites, and more over IP connections. Because the content is transported via VNC or RDP, direct connections over HDMI® ports are not required, resulting in additional input capability without the cost of a larger video processor. VNC and RDP are in addition to H.264 and IP sources already accepted in the base system.
Customize Your Display with Videos and Images
Present local videos and image files. Display logos, animations, corporate videos, or other content. Resize, position, and layer content anywhere on your video wall.
LDAP/Active Directory User Authentication
Zio provides multiple ways to authenticate user access for added security. In addition to using a local database, you can now tie into industry-standard LDAP or Active Directory for user authentication.
The versatile Zio W4000 is ideal for standalone or enterprise-wide applications including mission-critical operations, command centers, boardrooms, lobby displays, digital signage, and more. Get a demo to find out more.
Specifications
All Models
Input/Output
Inputs
DVI: up to 1920x1200 @ 60 Hz, 2560x1600 @ 30 Hz
HDMI® & DisplayPort: up to 4096x2160 @ 60 Hz, up to 10-bit per component
SDI: up to 12G / 4096x2160 @ 60 Hz
S-Video: NTSC/PAL/SECAM
Composite: NTSC/PAL/SECAM
IP: up to 3840x2160 @ 60 Hz H.264
HDMI® & DisplayPort: up to 4096x2160 @ 60 Hz, up to 10-bit per component
SDI: up to 12G / 4096x2160 @ 60 Hz
S-Video: NTSC/PAL/SECAM
Composite: NTSC/PAL/SECAM
IP: up to 3840x2160 @ 60 Hz H.264
Outputs
DVI: up to 2048x1152 @ 60 Hz, 2560x1600 @ 30 Hz
HDMI® & DisplayPort: up to 4096x2160 @ 60 Hz
IP: up to 3840x2160 @ 60 Hz
HDMI® & DisplayPort: up to 4096x2160 @ 60 Hz
IP: up to 3840x2160 @ 60 Hz
** Number of input and output channels depends on chassis size and customer configuration.

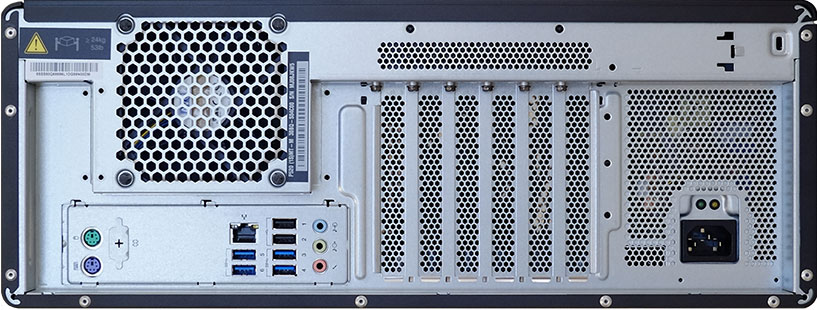

Model: W4018
Output Number
8 max
Processor
Memory
16 GB DDR4 2666 MHz
Hard Disk
256 GB SSD (No RAID option)
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
6.5 x 17.3 x 18.2 in (4RU)
(165 x 440 x 460 mm)
(165 x 440 x 460 mm)
Weight
27 lbs / 12 kg
Power
100-240 VAC; 50/60 Hz
690 W single
690 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing
Model: W4018-A
Output Number
8 max
Processor
Memory
16 GB DDR4 2666 MHz
Hard Disk
256 GB SSD (No RAID option)
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
14.6 x 66.9 x 16.8 in (Tower)
(376 x 1700 x 427 mm)
(376 x 1700 x 427 mm)
Weight
32 lbs / 14.5 kg
Power
100-240 VAC; 50/60 Hz
625 W single
625 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing

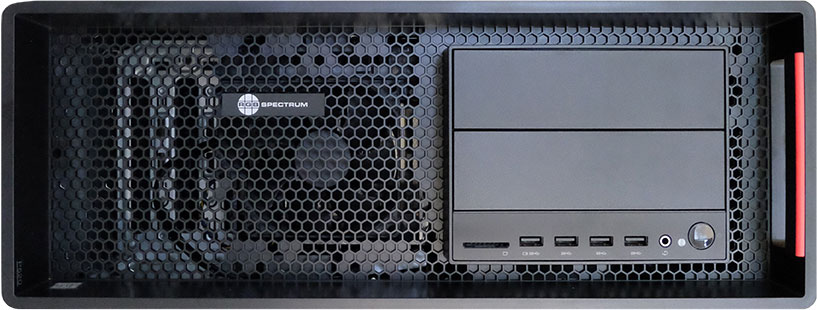

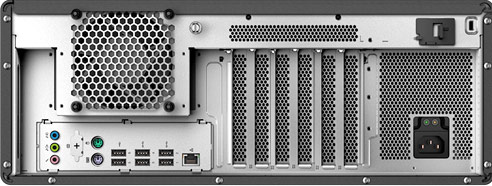

Model: W4024
Output Number
16 max
Processor
Memory
32 GB DDR4 3200 MHz
Hard Disk
256 GB SSD; RAID option
Control
Network
1x Ethernet TCP/IP 10/100/1000 Base-T
Physical
Size (H x W x D)
6.5 x 17.3 x 18.1 in (4RU)
(165 x 440 x 460 mm)
(165 x 440 x 460 mm)
Weight
29 lbs / 13 kg
Power
100-240 VAC; 50/60 Hz
1000 W single
1000 W single
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
+14 to +140 °F (-10 to +60 °C)
Operating Humidity
10% to 80% non-condensing

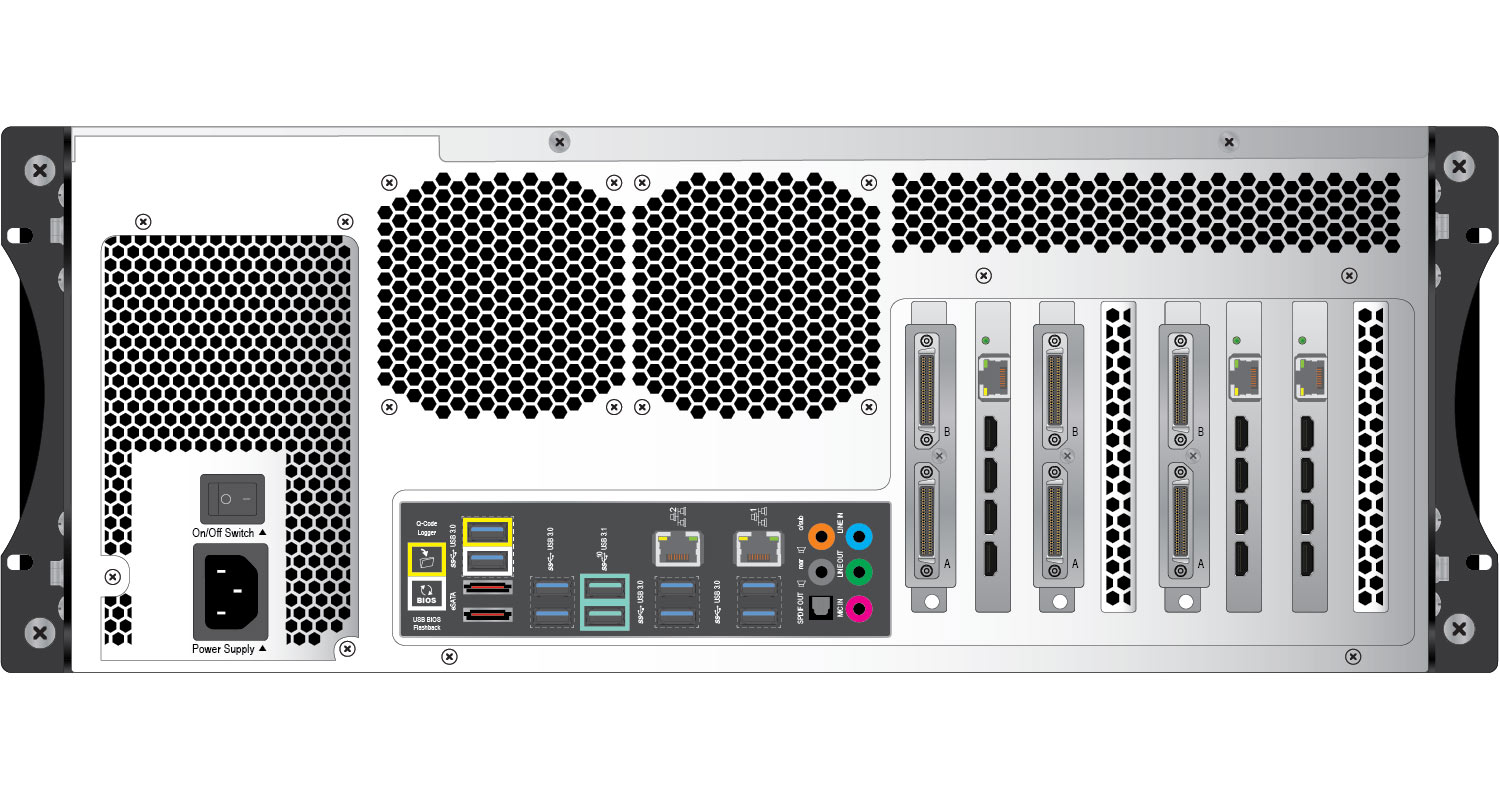

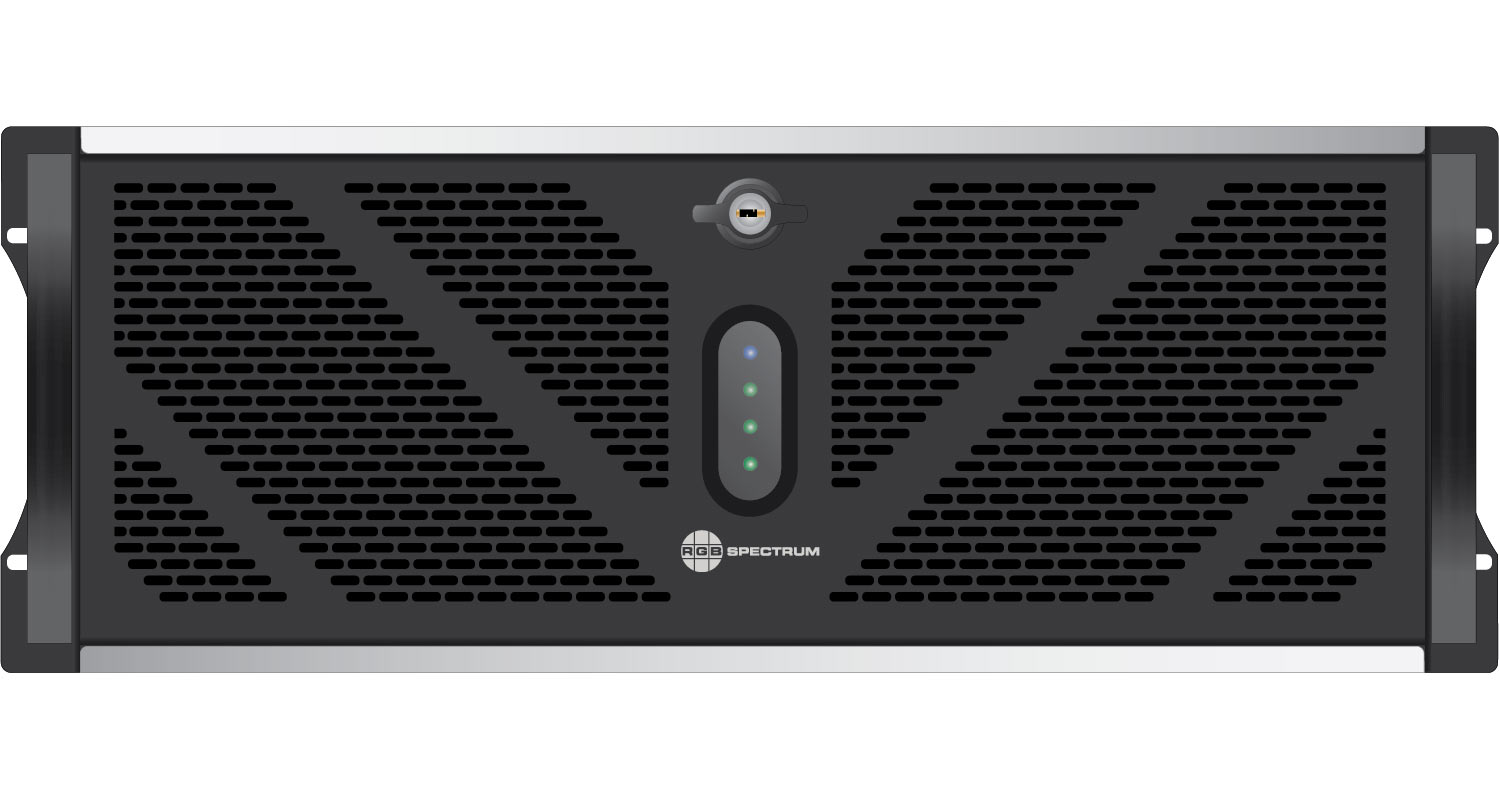

Model: W4028
Output Number
16 max
Processor
Memory
32 GB DDR4 2666 MHz
Hard Disk
240 GB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 19.0 x 21.5 in (4RU)
(177 x 483 x 546 mm)
(177 x 483 x 546 mm)
Weight
40 lbs / 18 kg
Power
100-240 VAC; 50/60 Hz
850 W single
850 W single
Environmental
Operating Temp
+32 to +104 °F (0 to +40 °C)
Storage Temp
-4 to +176 °F (-20 to +80 °C)
Operating Humidity
20% to 80% non-condensing
Model: W4028-RP
Output Number
16 max
Processor
Memory
32 GB DDR4 2666 MHz
Hard Disk
240 GB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
10/100/1000Base-T
10/100/1000Base-T
Physical
Size (H x W x D)
7.0 x 19.0 x 21.5 in
(177 x 483 x 546 mm)
(177 x 483 x 546 mm)
Weight
40 lbs / 18 kg
Power
100-240 VAC; 50/60 Hz
1200 W, 1+1 redundant, hot-swappable
1200 W, 1+1 redundant, hot-swappable
Environmental
Operating Temp
+32 to +104 °F (0 to +40 °C)
Storage Temp
-4 to +176 °F (-20 to +80 °C)
Operating Humidity
20% to 80% non-condensing
Model: W4040-A
Output Number
16 max
Processor
Memory
128 GB DDR4 3200 MHz
Hard Disk
1 TB NVMe SSD; RAID option
Control
Network
2x Ethernet TCP/IP
1000/10000Base-T
1000/10000Base-T
Physical
Size (H x W x D)
7.0 x 17.2 x 29.0 in
(178 x 437 x 737 mm)
(178 x 437 x 737 mm)
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W, 2+2 redundant, hot swappable
2000 W, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
9% to 90% non-condensing
Model: W4040-B
Output Number
16 max
Processor
Memory
128 GB DDR4 3200 MHz
Hard Disk
1 TB NVMe SSD; RAID option
Control
Network
2x Ethernet TCP/IP
1000/10000 Base-T
1000/10000 Base-T
Physical
Size (H x W x D)
6.9 x 17.1 x 26 in
(175 x 434 x 660 mm)
(175 x 434 x 660 mm)
Weight
77 lbs / 35 kg
Power
115-230 VAC; 50/60 Hz
2000 W, 1+1 dual redundant
2000 W, 1+1 dual redundant
Environmental
Operating Temp
+32 to +85 °F (0 to +30 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
< 95% non-condensing

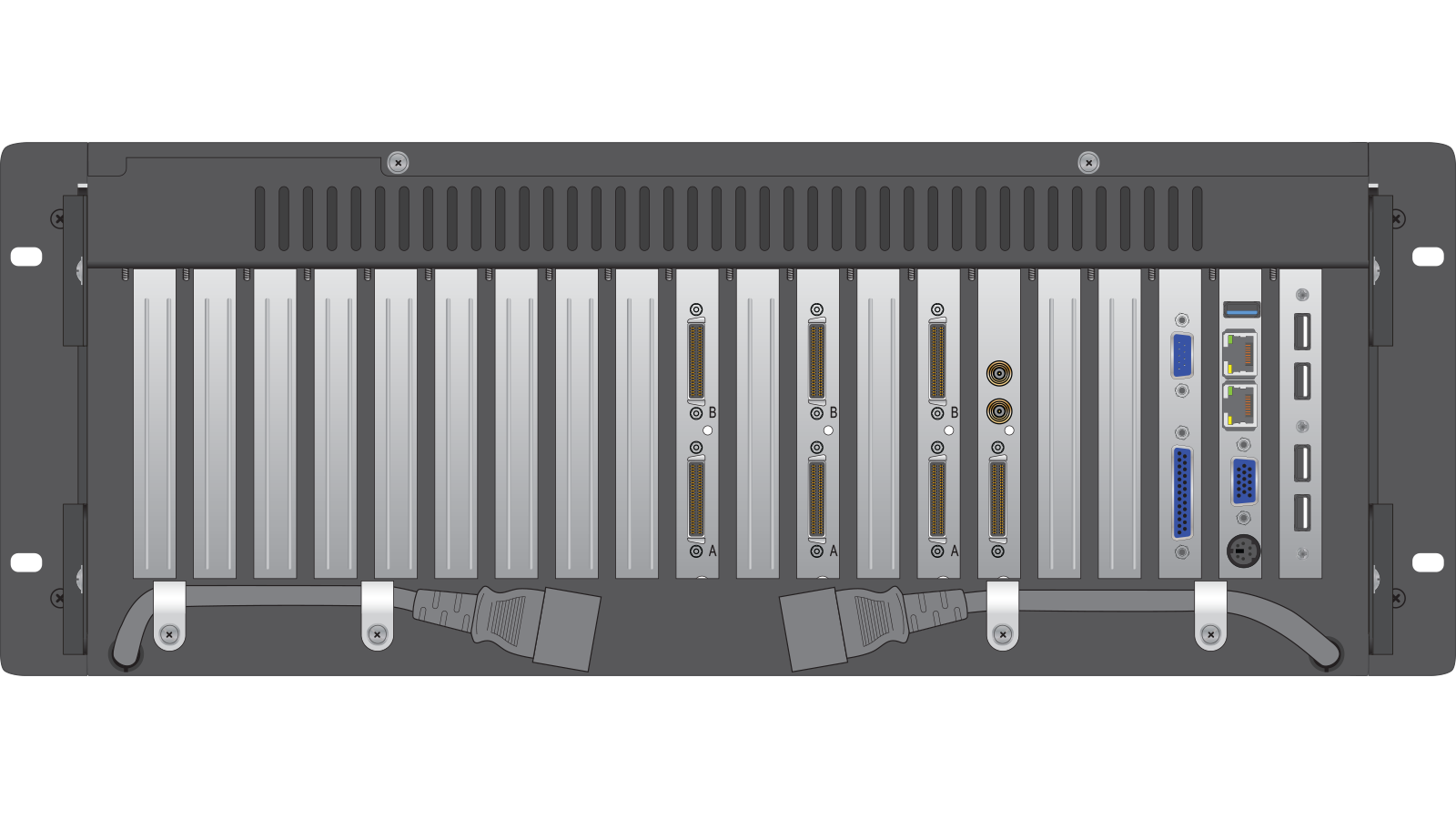

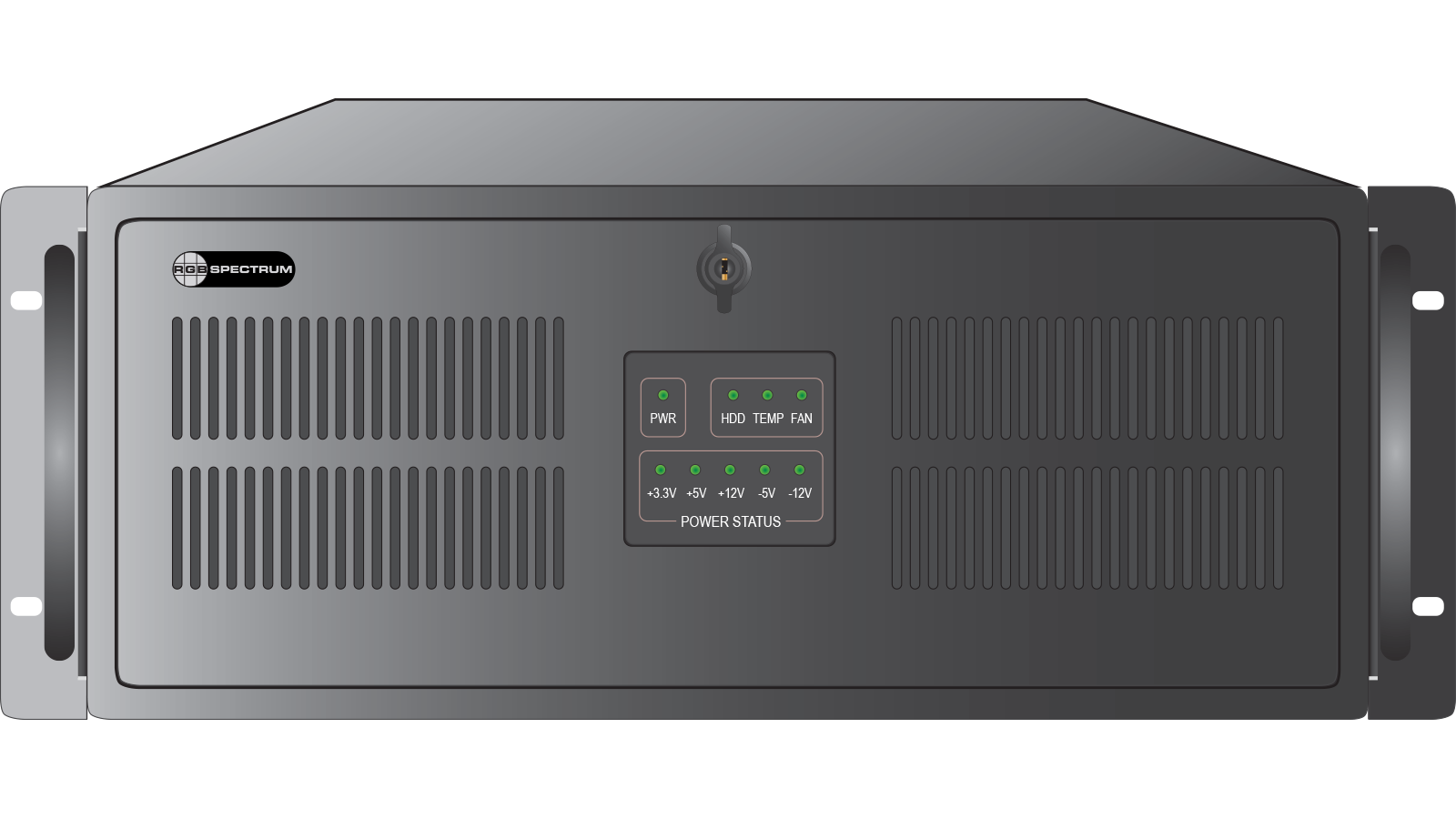

Model: W4056-A
Output Number
16 max
Processor
Memory
96 GB DDR4 2933 MHz
Hard Disk
1TB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
1000/10000Base-T
1000/10000Base-T
Physical
Size (H x W x D)
7.0 x 17.2 x 32.1 in (4RU)
(178 x 437 x 815 mm)
(178 x 437 x 815 mm)
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W max, 2+2 redundant, hot swappable
2000 W max, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
10% to 85% non-condensing

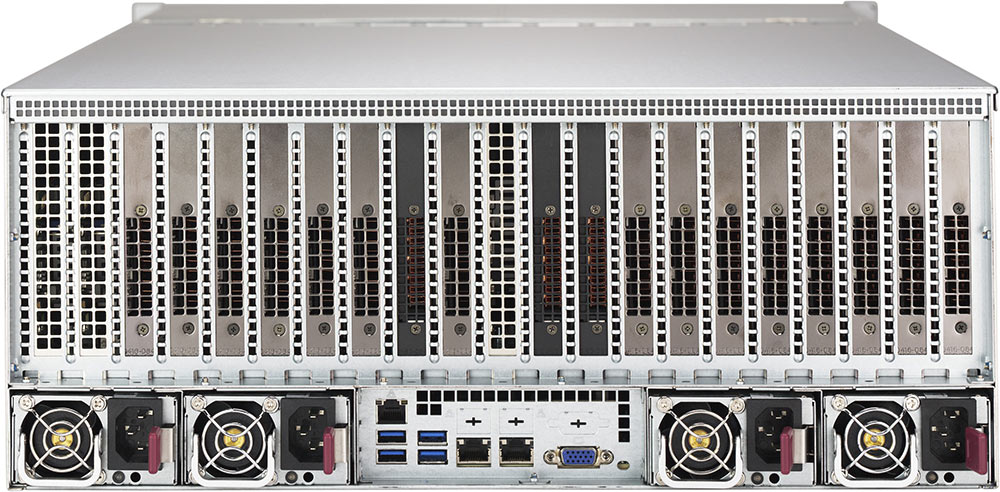

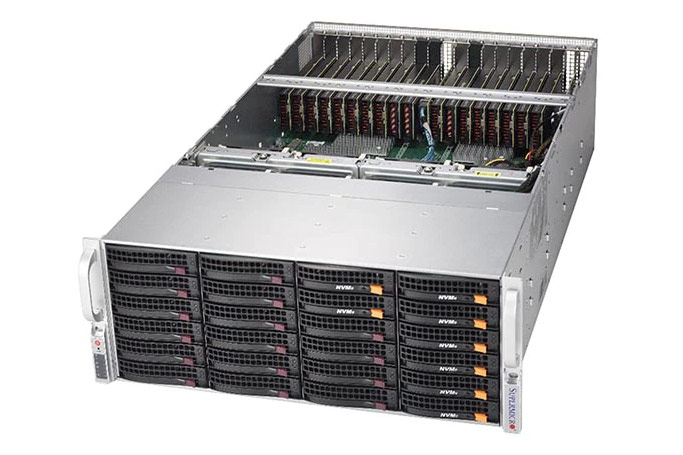

Model: W4080
Output Number
16 max
Processor
Memory
96 GB DDR4 2933 MHz
Hard Disk
1 TB SSD; RAID option
Control
Network
2x Ethernet TCP/IP
1000/10000Base-T
1000/10000Base-T
Physical
Size (H x W x D)
7.0 x 17.2 x 32.1 in (4RU)
(178 x 437 x 815 mm)
(178 x 437 x 815 mm)
Weight
65 lbs / 29.7 kg
Power
115-230 VAC; 50/60 Hz
2000 W max, 2+2 redundant, hot swappable
2000 W max, 2+2 redundant, hot swappable
Environmental
Operating Temp
+50 to +95 °F (+10 to +35 °C)
Storage Temp
-4 to +140 °F (-20 to +60 °C)
Operating Humidity
10% to 85% non-condensing
