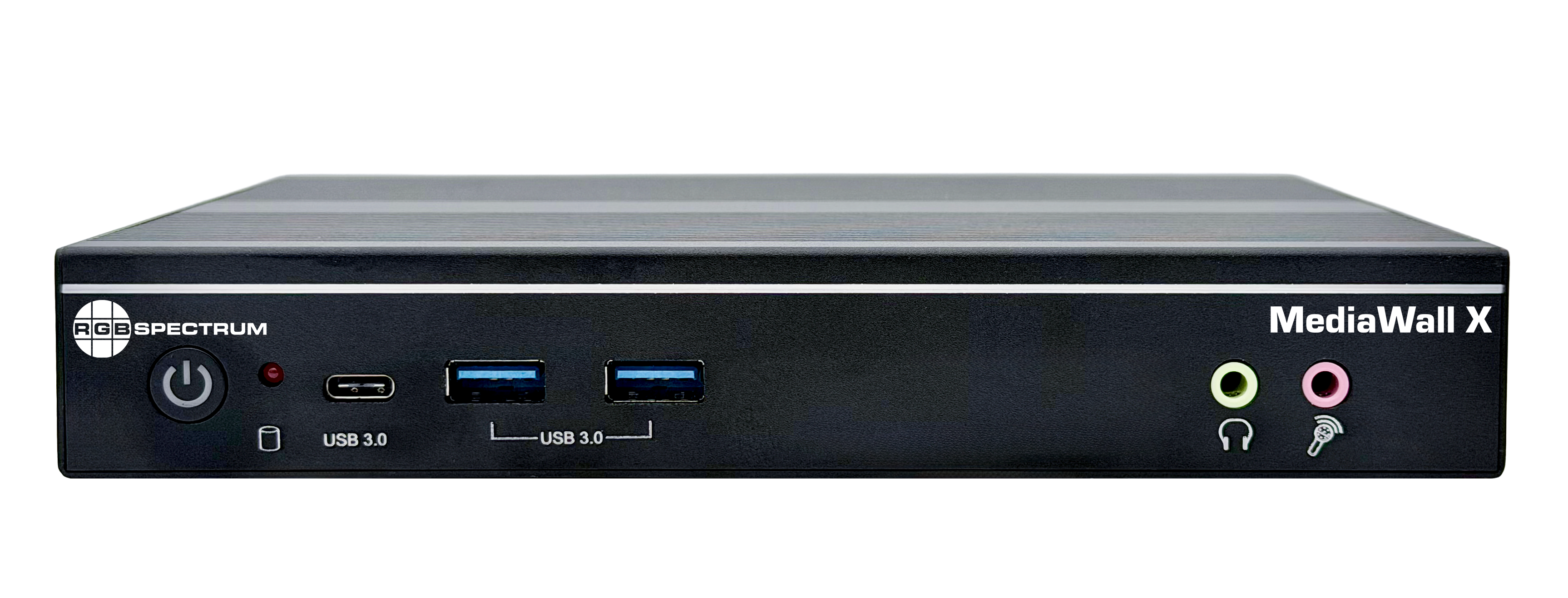

MediaWall X
Seamless, Scalable, Synchronized Video Walls
The RGB Spectrum MediaWall® X is a high-performance, IP-based distributed video wall processor that utilizes scalable 4K video wall processing in an ultra-compact form factor. Its distributed, serverless architecture enables multiple MediaWall X endpoints to operate as a single synchronized video wall system, supporting virtually any wall size, layout, or display configuration.
MediaWall X utilizes RGB Spectrum Zio® 5000 and 2100 Series encoders over standard Ethernet networks, as well as third-party H.264 (AVC) and H.265 (HEVC) video sources, including IP cameras and other networked devices.
MediaWall X utilizes RGB Spectrum Zio® 5000 and 2100 Series encoders over standard Ethernet networks, as well as third-party H.264 (AVC) and H.265 (HEVC) video sources, including IP cameras and other networked devices.
VIEW ALL: Video Wall Processors
By integrating video decoding, graphics processing, networking, and compute resources into a single platform, MediaWall X delivers reliable, low-latency visualization for mission-critical environments. Fully TAA-compliant and supporting both H.264 and H.265 content, MediaWall X is ideal for control rooms, operations centers, security applications, and other demanding visualization deployments.
Key Features
- Distributed Video Wall Processing with Encoder & Decoder Endpoints
- Scalable, serverless architecture for simplified deployment and expansion
- Supports H.264 (AVC), H.265 (HEVC), HTML5, and HDMI content sources
- Supports video walls with up to 64 4K60 displays or 256 2K60 displays
- Multiple encoder configurations available
- Ultra-compact form factor for space-constrained installations
High-Performance Video Wall Processing
- Drive video walls with up to 64 4K displays or larger using QuadPlex technology
- Decode up to: 1 × 8K60, 6 × 4K60, 12 × 4K30, 18 × 1080p60, 34 × 1080p30, 72 × 720p30 streams
- Output up to four 4K60 HDMI displays per endpoint
- Synchronize content across multiple endpoints for seamless video wall operation
Distributed Architecture
- Serverless design eliminates the need for dedicated video wall servers
- Compact footprint enables installation behind or near displays
- Reduces infrastructure, cabling, rack space, and deployment complexity
- Scales easily from small video walls to large multi-wall deployments
Security
- Hardware-based encryption protects sensitive data
- Hardened Linux operating system with a controlled software environment
- Designed for secure operation in mission-critical environments
Configuration & Control
- Automatic device discovery and system configuration
- Flexible video wall and bezel management
- Intuitive drag-and-drop source management
- Rapid creation of layouts, overlays, annotations, and custom workspaces
Specifications
Physical
Outputs
4x HDMI
Ethernet
1GbE / 2.5GbE (RJ45)
Max Resolution
4096 x 2160 @ 60 Hz
Form Factor
1U, half-rack appliance
Dimensions
19cm x 14.8cm x 3cm
Mounting
Rackmount compatible, VESA mountable
Network
Interfaces
10/100/1000/2.5G Ethernet, auto-detect
IP Support
IPv4 / IPv6
Transport
Unicast, multicast, multiple unicast
Addressing
DHCP (default), Static
Streaming
Streaming Protocols
RTSP, SRT
Management Protocols
Telnet, HTTP
Video & Audio
Pixel Formats
RGB 8:8:8 (24 bpp), YUV 4:4:4 / 4:2:0
Processing
Composite, key, crop, mirror, flip
Audio
Future update
Decoding
H.264/H.265 Support
Up to level 5.2, 4:2:0, 8-bit | Up to level 6.2, 4:2:0 & 4:4:4, 8-bit
Streams (per endpoint unit)
1x 8K60, 6x 4K60, 12x 4K30, 18x 1080p60, 34x 1080p30, 72x 720p30
Environmental & Power
Operating Temp
0°–40°C
Humidity
10–90% non-condensing
Storage Temp
-20°–70°C
Power Consumption
45W typical
Power Supply
19V, 90W PSU (locking)
Compliance
Regulatory
FCC, CE, RCM, ICES-003, KC, UKCA
Environmental
RoHS, China RoHS, REACH, WEEE
Compliance
TAA Compliant
