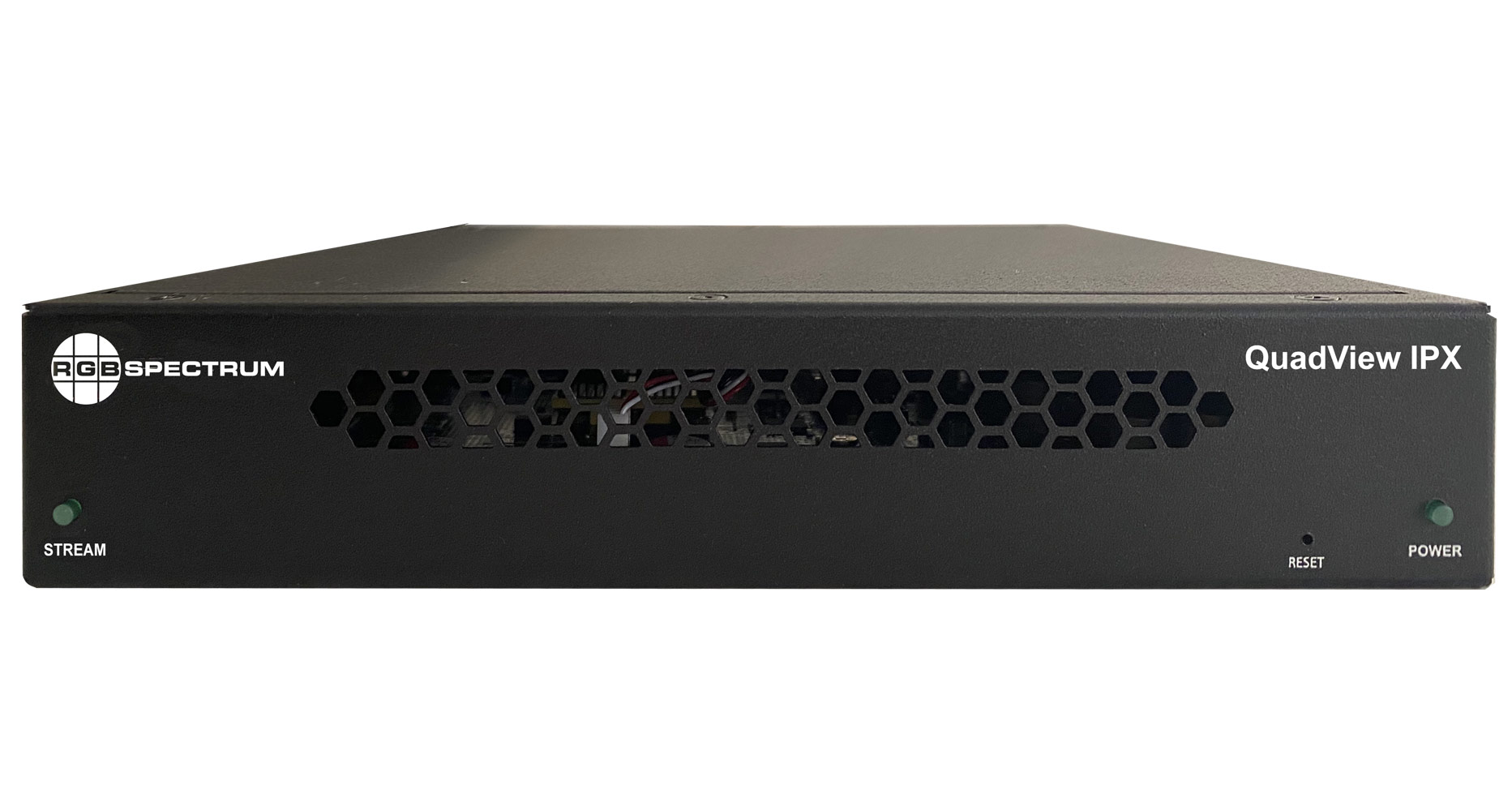

QuadView IPX Multiviewer

Multi-Image Display Processor with HDMI^® and IP Inputs

RGB Spectrum’s QuadView^® IPX is a high-performance 4K multiviewer for displaying up to 4 signals in customizable layouts on a single screen. The QuadView delivers superior image quality at up to 4K 60Hz resolution with display windows any size, anywhere on screen.

4K 60Hz input and output resolutions

4 images displayed any size, anywhere

Customizable display layouts and presets

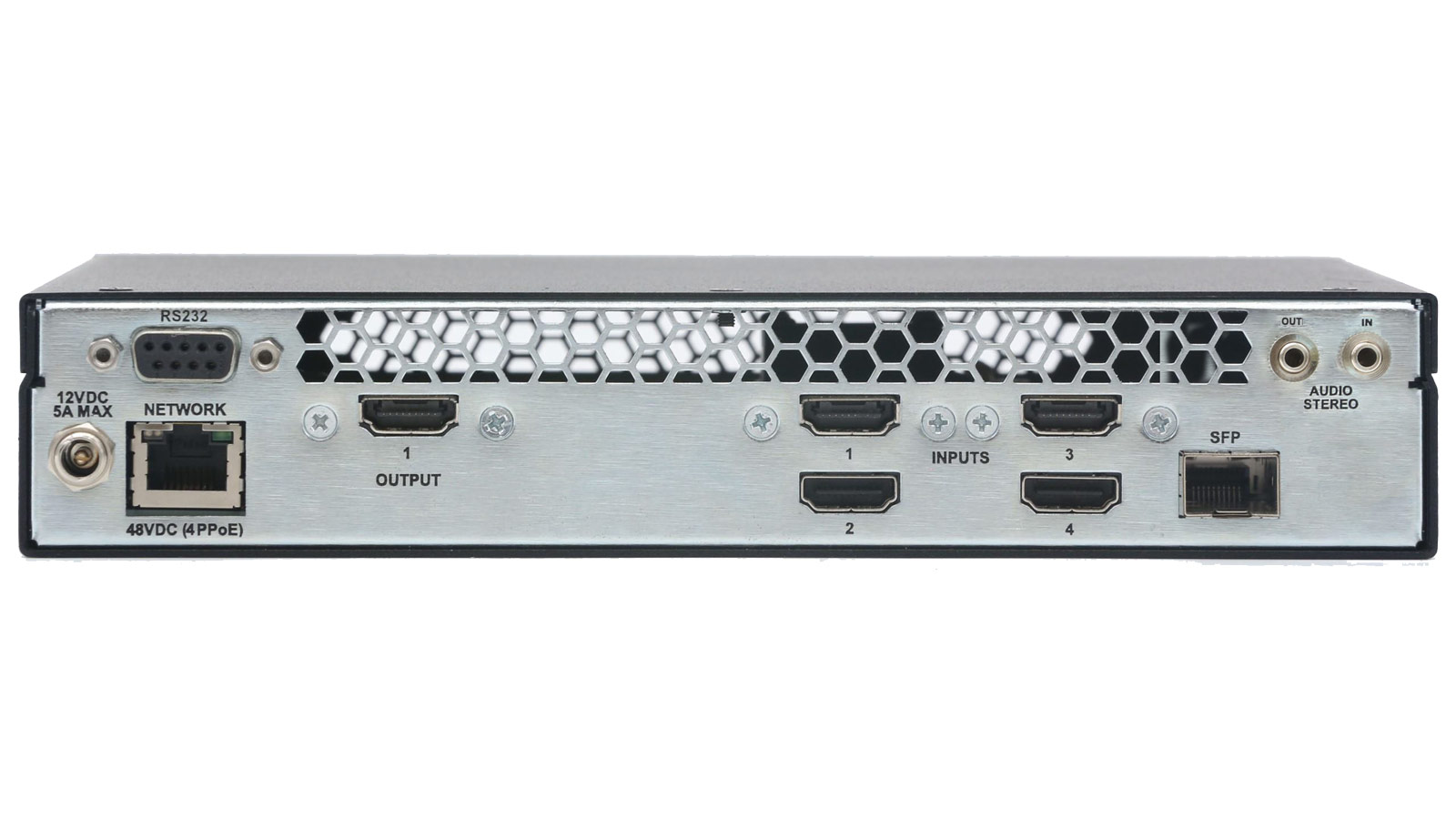

4x HDMI® in + 1x HDMI® out

H.264 and H.265 decoding

Embedded architecture for security

Control via browser-based GUI, Telnet and RS-232

TAA and BAA compliant

QuadView & SuperView IPX Data Sheet

VIEW ALL: Multiviewers

Overview

Multiviewers have emerged as indispensable tools for displaying and analyzing diverse data sources on a single pane of glass. Their ability to consolidate information streams onto a single screen enhances situational awareness and decision-making workflow.

RGB Spectrum offers two new multiviewer models with the ability to display a combination of local baseband and remote IP video inputs:

The QuadView^® IPX is a high-performance 4K multiviewer capable of displaying up to four video signals in customizable layouts on a single screen.

The new SuperView^® IPX offers similar capabilities, with up to seven video images on a single screen.

The QuadView and SuperView IPX are the next generation in multiviewer performance and flexibility. Both HDMI® and IP inputs can be selected for display, with access to local video over HDMI and remote sources over LAN/WAN.

With complete flexibility, users can mix and match input resolutions, scale any input up to 4K resolution and route any input to any window in customizable layouts.

RGB Spectrum’s IPX multiviewers are an ideal solution for mission-critical 24/7 operations, where reliability, security, and ruggedness count. Made in the U.S.A.

Specifications

Model: QuadView IPX Multiviewer

Maximum Window Count

Inputs

Video

4x HDMI® (2.0); 1x IP (1GbE)

Supported Resolutions

Up to 3840 x 2160 @ 60Hz (HDMI® & IP) -The maximum decode rate for all IP sources is 3840x2160 @ 60fps (e.g., 1x 4K/60p; 2x 4K/30p; 4x 1080/60p)

Outputs

Video

1x HDMI® (2.0)

Supported Resolutions

3840x2160 @ 60Hz, 3840x2160 @ 30Hz, 3840x2160 @ 24Hz, 1920x1200 @ 60Hz, 1920x1080 @ 60Hz, 1920x1080 @ 50Hz, 1600x1200 @ 60Hz, 1680x1050 @ 60Hz, 1600x900 @ 60Hz, 1400x1050 @ 60Hz, 1440x900 @ 60Hz, 1366x768 @ 60Hz, 1360x768 @ 60Hz, 1280x1024 @ 60Hz, 1280x720 @ 60Hz, 1280x800 @ 60Hz, 1280x768 @ 60Hz, 1280x720 @ 50Hz, 1024x768 @ 60Hz, 800x600 @ 60Hz

Audio

Embedded, Analog (future release)

Control

Browser-based HTML5, Telnet, RS-232

Physical

Dimensions (H x W x D)

1.75 x 8.625 x 8.0 inches (1RU) (43.2 x 219 x 203 mm)

Weight

3.1 lbs (1.4 kg)

Power Supply

100-240 VAC / 50/60Hz

Power Consumption (max)
