XtendPoint KVM-over-IP Solution for Multi-User Control of Remote Systems

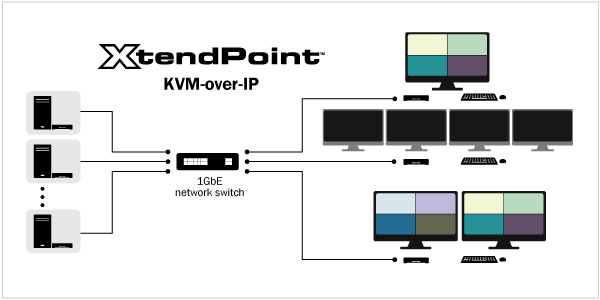

XtendPoint KVM-over-IP configuration options

XtendPoint KVM-over-IP allows operators to connect and control remote systems across a room or worldwide enterprise. Leveraging a standard 1 Gigabit Ethernet (GbE) network, the XtendPoint KVM-over-IP system delivers a scalable KVM matrix switching solution connecting multiple users with controllable systems, including multi-headed computers. Most importantly, the XtendPoint system offers high performance at low bit rates with exceptional latency performance as low as 40 msec.

Users can view and operate multiple systems from a remote station, with control by a single keyboard and mouse. XtendPoint’s scalable IP switching architecture delivers outstanding 4Kp60 4:4:4 UHD visual performance and excellent keyboard and mouse responsiveness over a LAN or WAN.

A point-to-point configuration pairs a XtendPoint Transmitter with a XtendPoint Receiver to extend bandwidth-efficient KVM control of a multi-headed host system. XtendPoint drives up to four monitors over a single Ethernet port (RJ45 or SFP) to simplify operations for applications including control rooms, dispatch centers, government, healthcare and education.

A networked XtendPoint KVM-over-IP system supports one-to-one, one-to-many, many-to-one, or many-to-many configurations. It allows operators to view multiple desktops on a multi-display or multiviewer operator station and take control of a system by simply moving the mouse to the target desktop using KlickSimple cursor navigation.

XtendPoint receivers accept the encoded video streams from XtendPoint transmitters for display on up to four monitors, depending on model. Keyboard and mouse signals are sent back over the network to a XtendPoint transmitter and then forwarded to the computer over a USB link.

Users select signal to view on their receiver via an onscreen display or hotkeys.

XtendPoint with QuadView

USB connections between the transmitters and computers, plus keyboard and mouse emulation, obviate the need for custom software.

The XtendPoint system provides simple control using the XtendPoint Central Manager application. This allows users to discover, configure, manage, and monitor all transmitter and receiver endpoints. It provides a system level view of connections, where users can switch control of computers through an advanced on-screen-display (OSD) that features thumbnail previews. Presets are available for routine changes.

The system offers a high level of security. Central Manager can create and manage password protected user rights. Alternatively, industry-standard Microsoft Active Directory Services can provide user authorization. The XtendPoint system uses HTTPS, a secure communication protocol, with audio, video, and USB signals encrypted to protect both AV content and control signals.

In summary, the new XtendPoint system is a state-of-the-art solution for remote KVM control of devices enterprise-wide.
