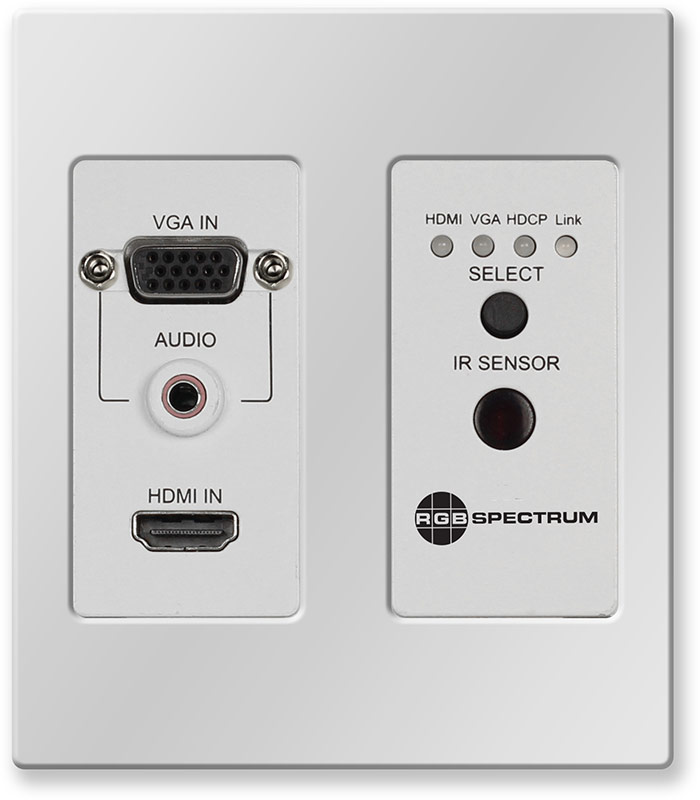

CAT-Linx 2 TX Wall Plate Transmitter

This Product Has Reached End-of-Life

Extends 4K UltraHD (60Hz) and HD signals

The CAT-Linx™ 2 TX Wall Plate Transmitter extends 4K UltraHD (60Hz) and HD signals over long distances using conventional CAT 5e/6 cable. Paired with CAT-Linx 2 RX Receivers, the Wall Plate Transmitter can extend HD signal transmission up to 100 meters or 4K UltraHD signals up to 70 meters. CAT-Linx 2 Wall Plate TX and Receive (RX) endpoints can be used with all RGB Spectrum wall processors, multiviewers, and switchers.

A CAT-Linx 2 pair needs only one power supply to power both devices. For optimal installation ease and convenience, the CAT-Linx 2 TX Wall Plate Transmitter offers integrated power supplied by a CAT-Linx 2 RX receiver over the same CAT5e/6 cable that carries video and data signals. This eliminates the need for additional external power connections.

The CAT-Linx 2 TX Wall Plate Transmitter provides both HDMI and VGA input with automatic input recognition and switching. Audio support includes embedded HDMI audio and analog stereo (with VGA input only). The extenders offer many additional advanced features, including HDCP 2.2 compatibility, Dolby and DTS HD audio support, serial and IR control. For example, you can control a source from the display's location or control the display from source's location via the IR pass-through function bidirectional RS-232 signal transmission.

Specifications

Model: CAT-Linx 2 Wall Plate TX
Video
Input Signal Type
HDMI 1.4 with HDCP 2.2, VGA
Maximum Signal Resolution
HDMI: 3840x2160@60Hz
VGA:1920x1200@60Hz
Input Video Level
0.5~1.0V p-p
Maximum Pixel Clock Rate
297 MHz
Transport Signal Type
HDBT
Video Impedance
100 ohms
Audio
Analog Audio Input
1 x 3.5mm mini jack,stereo audio binding with VGA input
Audio Formats
HDMI: Stereo, LPCM 5.1, LPCM 7.1; Dolby True HD, DTS-HD Master Audio
VGA:Stereo
General
Operating Temperature
0 to 45 °C (32 to 113 °F)
Storage Temperature
-20 to 70 °C (-4 to 158 °F)
Humidity
10% to 90%, non-condensing
Power Supply
DC 12V
Power Consumption
3.36W
Dimensions (W x H x D)
4.16" x 1.16" x 3.58" (105.6mm x 29.4mm x 91mm)
Weight
0.5 lbs / 0.22kg
