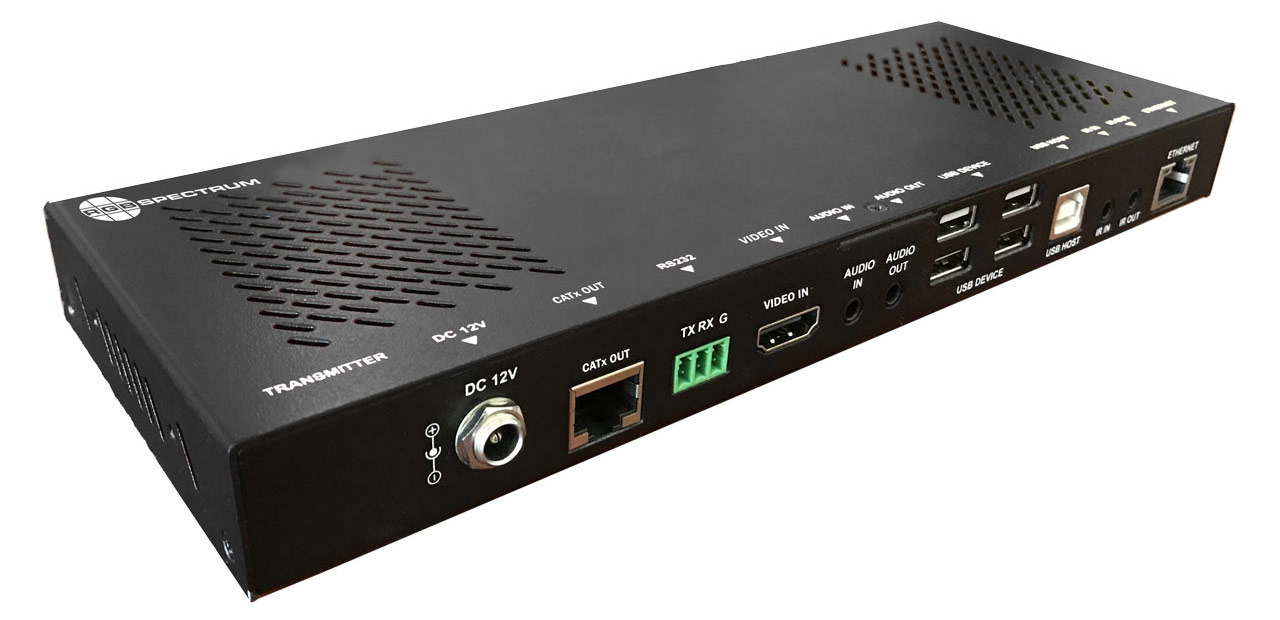

CAT-Linx 3 Plus Signal Extender
4K Endpoints with Integrated KVM Control
CAT-Linx™ 3 Plus extenders transmit high-resolution signals up to 100 meters (330 feet) using conventional CAT 6/7 cable. CAT-Linx 3 Plus also provides transparent USB extension for KVM control of remote devices. This state-of-the-art technology delivers visually lossless compression when transmitting a 4K 60Hz 4:4:4 signal.
Signals up to 4K 60Hz, 4:4:4 chroma and HDR 10, at data rates up to 18Gbps
4K 60Hz signal transmission up to 100 meters (330 feet) with CAT 6/7 cable
Built-in USB KVM control of remote devices
Integrated power to supply endpoints over the same CATx cable
HDCP 2.2 compliant
Embedded multi-channel audio and audio pass through over CATx
IR and serial control of displays and other AV devices
Power-over-CATx
Automatic EDID management
Convenient mounting rack for 8 RX or TX units available
CAT-Linx Data Sheet
VIEW ALL: Extenders
CAT-Linx 3 Plus

Overview

For installation ease and convenience, CAT-Linx 3 Plus extenders have integrated power to supply endpoints over the same CATx cable that carries the video and data signals. This eliminates the need for external power connections. A CAT-Linx 3 pair needs only one power supply connected to the transmitter to power both devices. The TX transmitter powers the RX receiver.

CAT-Linx 3 Plus extenders support HDCP 2.2, HDR, and multi-channel audio. In addition to built-in KVM control of remote devices, the signal extenders can control display devices using IR pass-through and bidirectional RS-232 signal transmission.

In summary, CAT-Linx 3 Plus extenders are a high-performance, feature-rich, and cost-effective solution for 4K 60Hz signal distribution with integrated KVM control of remote devices.

Specifications

Model: CAT-Linx 3 Plus TX/RX
Video
Input Signal Type
HDMI® 2.0 with HDCP 2.2
Maximum Signal Resolution
4096x2160@60Hz, 3840x2160@60Hz
Color Space & Sampling
4096x2160 & 3840x2160@60Hz: 4:4:4, 4096x2160 & 3840x2160@30Hz: 4:4:4, 2K & HD @60Hz: 4:4:4
Input Video Level
0.5~1.0V p-p
Maximum Pixel Clock Rate
600 MHz
Transport Signal Type
CAT 5e/6/6a/7
Video Impedance
100 ohms
Transmission Distance
Cat 5e cable: 3840x2160 to 90m; 1080P to 100m
Cat 6/6a/7 cable: 3840x2160 to 100m; 1080P to 150m
Audio
Audio Formats
HDMI® Embedded Audio, Analog Stereo
Control
Control Method
Ethernet
External Device Control
Via IR (IR Emitter & Receivers included) & RS232
USB
Connections: TX & RX
One USB Host and four USB Device ports for remote KVM control
USB Version
2.0
General
Operating Temperature
0 to 45 °C (32 to 113 °F)
Storage Temperature
-20 to 70 °C (-4 to 158 °F)
Humidity
10% to 90%, non-condensing
Power Supply
12V, 3A DC / Power-over-CATx
Dimensions (W x H x D)
9.6 x 3.55 x 1.0 inches (245 x 90.2 x 25 mm)
Weight
1.45 lbs / 0.66 kg
Safety
CE
EMI/EMC CE
FCC Class A

Related Products

CAT RAK
4K Endpoints with Integrated KVM Control
The CAT RAK is a rackmount shelf for up to 10 CAT-Linx 3 or up to 8 CAT-Linx 3 Plus units. These convenient shelves allow each endpoint to be securely mounted in a vertical orientation. The PDU 400-12 Power Distribution Unit mounts above or below to provide power directly to all endpoints mounted in the CAT RAK.
PDU 400-12 Power Distribution Unit
Streamlined AV project integration
RGB Spectrum’s Power Distribution Unit makes it simpler, easier and faster than ever to power up a variety of devices. Say goodbye to rack cable clutter and wall warts.

The convenient PDU 400-12 400-watt Power Distribution Unit provides 12 channels of 12-VDC power in a rugged, 1RU rack mountable enclosure. It is designed for 24/7 reliability, allowing system designers and facility managers to optimize power management.
CAT-Linx 3 Signal Extender
Compact 4K Ultra HD Endpoints
CAT-Linx™ 3 extenders transmit signals up to 4K Ultra HD at 60Hz using conventional CAT 5e/6 cable. CAT-Linx 3 units can transmit HD signals up to 100 meters and 4K Ultra HD signals up to 70 meters. Transmit (TX) and Receive (RX) endpoints are compatible with all RGB Spectrum wall processors, multiviewers, switchers, and AV devices from other manufacturers.
